Two lenses are placed 13 cm apart. The first lens is a converging lens with focal...
Two lenses are placed 13 cm apart. The first lens is a converging lens with focal length 4cm. The second lens is a diverging lens with focal length 9cm. If an object is placed at a distance of 13 cm from the first lens,
A) What is the position of the image?
B) What is the image type (virtual or real)?
C) What is the magnification?

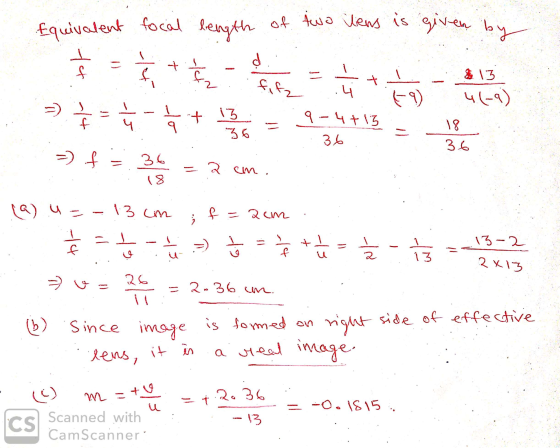

Homework Answers
Hope
it helps.
Kimdly like the answer and comment your doubts in the comment section below.
