A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

Question

Question

science physics

Answer 1

Answer #1

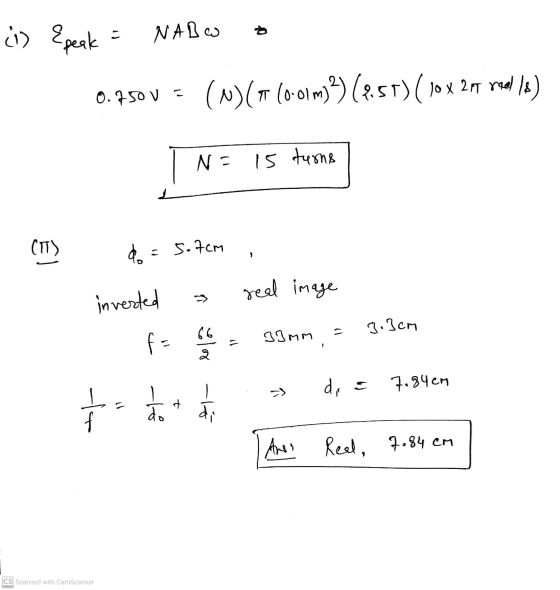

i) Epeak NABW 0.750 V - (N) ( (o-oim?)(751) ( 10x 205 reel Is) N = 15 turns CTT) do = 5.7cm real image > inverted 3.3cm 13mm

Answer 2

Similar Homework Help Questions

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

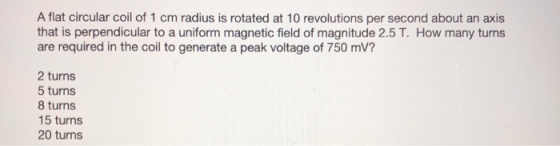

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV?
A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? 2 turns 5 turns 8 turns 15 turns 20 turns
A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? - 2 turns - 5 turns - 8 turns - 15 turns - 20 turns

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? Group of answer choices 2 turns 5 turns 8 turns 15 turns 20 turns
A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? O 2 turns O 5 turns O 8 turns O 15 turns
A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? a) 2 turns b) 5 turns c) 8 turns d) 15 turns e) 20 turns

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about...

A flat circular coil of 1 cm radius is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 2.5 T. How many turns are required in the coil to generate a peak voltage of 750 mV? a.) 2 turns b.) 5 turns c.) 8 turns d.) 15 turns e.) 20 turns
An object is located at a distance of 5.7 cm from a thin lens with a...

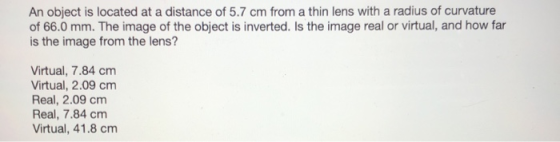

An object is located at a distance of 5.7 cm from a thin lens with a radius of curvature of 66.0 mm. The image of the object is inverted. Is the image real or virtual, and how far is the image from the lens? Virtual, 7.84 cm Virtual, 2.09 cm Real, 2.09 cm Real, 7.84 cm Virtual, 41.8 cm
An object is located at a distance of 5.7 cm from a thin lens with a...

An object is located at a distance of 5.7 cm from a thin lens with a radius of curvature of 66.0 mm. The image of the object is inverted. Is the image real or virtual, and how far is the image from the lens? Virtual, 7.84 cm Virtual, 2.09 cm Real, 2.09 cm Real, 7.84 cm Virtual, 41.8 cm

An object is located at a distance of 5.7 cm from a thin lens with a...

An object is located at a distance of 5.7 cm from a thin lens with a radius of curvature of 66.0 mm. The image of the object is inverted. Is the image real or virtual, and how far is the image from the lens? Virtual, 7.84 cm Virtual, 2.09 cm O Real, 2.09 cm Real, 7.84 cm Virtual, 41.8 cm
