The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The res

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

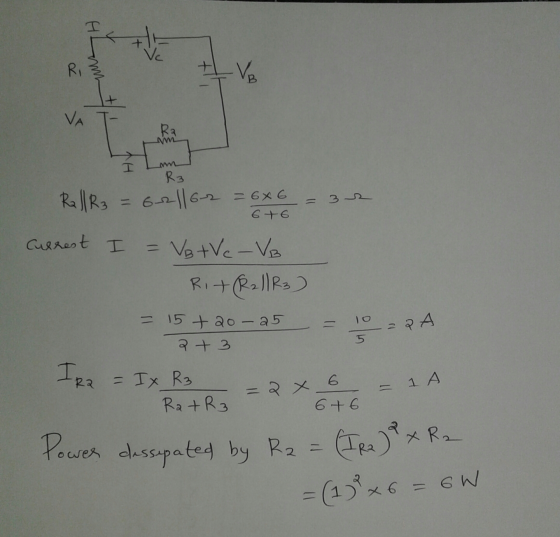

We find the total current in the circuit.Using current division rule the current through R2 is calculated.We apply the power formula to calculate the power dissipated by R2.Vc Riž I VB VA Ra TH R3 RallR₃ 622116-2 = 666 6+6 Currest I = VB+Vc-VB Rit (R2/1R3) = 15 + 20-25 2 + 3 = 2A G Ira 6 1 A - IX

0 0
Add a comment
Know the answer?
Add Answer to:
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA-25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC +42 RT VA +7 VB R2 w R3 1.0 W 2.0 W 5.0 W 6.0 W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and VC). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, VB=15 V, and VC=20 V. When the circuit is connected, what will be the power dissipated by R2? a) 1.0 W b) 2.0 W c) 5.0 W d) 6.0 W e) 7.5 W Vc R VA VB R2 { } R3

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R22 Vc R + VB 30 R3 1.0 W 2.0 W 5.0 W 6.0 W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA ++ VB R2 R3 1.0 W 2.0W 5.0 W 6.0 W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vs, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 VA t: VB R2 mm LM R3 O 1.0 W O 2.0 W O 5.0 W O 6.0 W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC RE ş VA VE R2 m R3 O 1.0W O 2.0 W O 5.0 W 6.0 W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and VC). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, VB=15 V, and VC=20 V. When the circuit is connected, what will be the power dissipated by R3? options: 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W Vc + R1 + + VA VB R2 R3

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R32 VC +A R1 VA SA VB R2 R3 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA VB R2 R3 O 1.25 W 0 2.0 w 0 5.0 W O 6.25 W O 8.13 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W
