Question

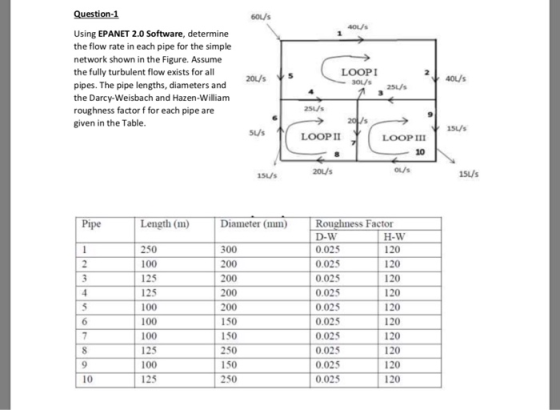

Using EPANET2.0 Software, determine the flow rate in each pipe for the simple network shown in the Figure. Assume the fully turbulent flow exists for all pipes. The pipe lengths, diameters and the Darcy-Weisbachand Hazen-William roughness factor f for each pipe are given in the Table.



60U/s 40L/ Question-1 Using EPANET 2.0 Software, determine the flow rate in each pipe for the simple network shown in the Fig
0 0
Add a comment Improve this question Transcribed image text
Answer #1

SOLUTION IS AS BELOW-

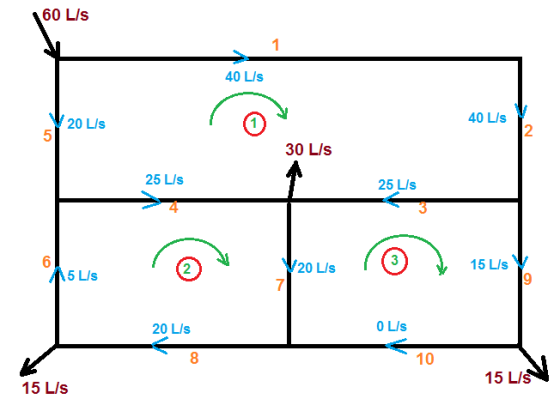

LOOPS ARE CONSIDERED AS THE BELOW DIAGRAMME-

60 L/s 1 40 L/s 20 LIS 40 LIS 5 30 L/s 25 L/s 25 L/s 6. 15 L/s 15 L/s V20 LIS 7 9 20 L/s OLIS 8 10 15 L/S 15 L/s

Consider loop-(1):-

Pipe Qo f f*Qo^2 2*f*Qo
1 40 0.025 40 2
2 40 0.025 40 2
3 25 0.025 15.625 1.25
4 25 0.025 -15.625 1.25
5 20 0.025 -10 1
Sum 70 7.5

ΔQ =-Σf02/Σ2fQο

\DeltaQ=-70/7.5

\DeltaQ=-9.333 L/s , [note:-\DeltaQ add in clockwise direction flow with sign and subtract in anticlockwise direction flow with sign]

correction in flow-

pipe-1=40+(-9.333)=30.667 L/s

pipe-2=40+(-9.333)=30.667 L/s

pipe-3=25+(-9.333)=15.667 L/s

pipe-4=25-(-9.33)=34.333L/s

pipe-5=20-(-9.333)=29.333 L/s

Consider loop-(II):-

Pipe Qo f f*Qo^2 2*f*Qo
4 25 0.025 15.625 1.25
7 20 0.025 10 1
8 20 0.025 10 1
6 5 0.025 0.625 0.25
Sum 36.25 3.5

ΔQ =-Σf02/Σ2fQο

\DeltaQ=-(36.25)/3.5

\DeltaQ=-10.3571 L/s

Correction in flow-

pipe-4=corrected value in loop-(1)+\DeltaQ

pipe-4=34.333+(-10.3571)=23.9759 L/s

pipe-7=20+(-10.3571)=9.6429 L/s

pipe-8=20+(-10.3571)=9.6429 L/s

pipe-6=5+(-10.3571)=-5.3571 L/s

Consider Loop-(III):-

Pipe Qo f f*Qo^2 2*f*Qo
3 25 0.025 -15.625 1.25
9 15 0.025 5.625 0.75
10 0 0.025 0 0
7 20 0.025 -10 1
Sum -20 3

ΔQ =-Σf02/Σ2fQο

\DeltaQ=-(-20)/3

\DeltaQ=+6.667 L/s

Correction in flow-

pipe-3=corrected value in Loop-(1)-\DeltaQ

pipe-3=15.667-6.667=9 L/s

pipe-9=15+6.667=21.667 L/s

pipe-10=0+6.667=6.667 L/s

pipe-7=corrected value of pipe-7 in loop-(2)-\DeltaQ

pipe-7=9.6429-6.667=2.9759 L/s

correct flow in pipes-

flow in pipe-1=30.667 L/s

flow in pipe-2=30.667 L/s

flow in pipe-3=9 L/s

flow in pipe-4=23.9759 L/s

​​​​​​​flow in pipe-5=29.33 L/s

​​​​​​​flow in pipe-6=-5.3571 L/s

​​​​​​​flow in pipe-7=2.97559 L/s

​​​​​​​flow in pipe-8=9.6429 L/s

​​​​​​​flow in pipe-9=21.667 L/s

​​​​​​​flow in pipe-10=6.667 L/s

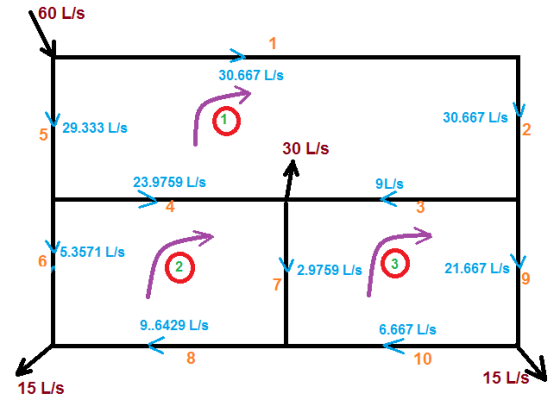

FINAL FLOW IN EACH PIPE IS AS BELOW-

60 L/S 1 30.667 LIS 30.667 LIS 5 29.333 LIS 2 30 L/s 23.9759 L/s 9LIS 15.3571 Lis 6 2.9759 L/s 21.667 LIS 7 9 9..6429 LIS 6.6

Add a comment
