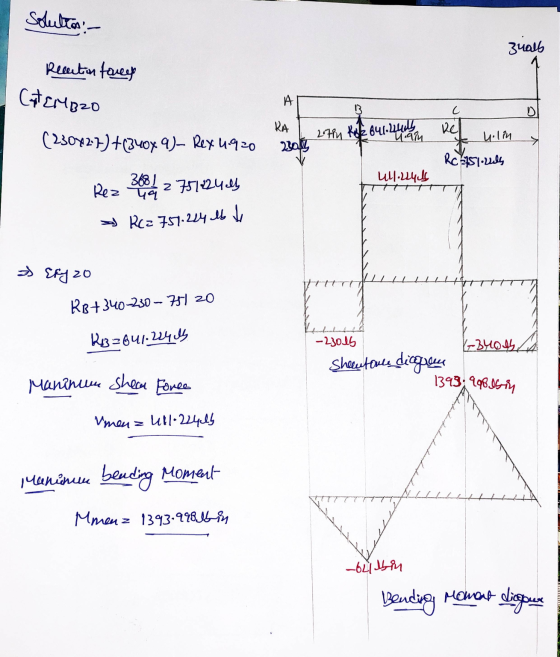

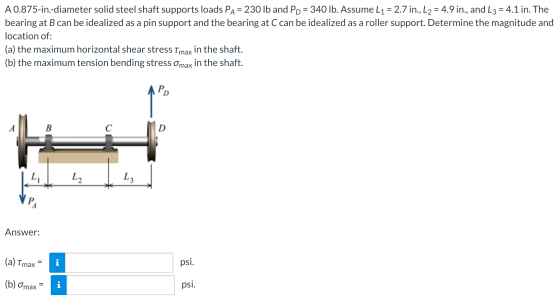

A 0.875-in.-diameter solid steel shaft supports loads Pa = 230 lb and PD = 340 lb....
A 1.875-in.-diameter solid steel shaft supports loads PA = 230 lb, PC = 560 lb, and...
A 1.875-in.-diameter solid steel shaft supports loads PA = 230 lb, PC = 560 lb, and PE-230 lb, as shown. Assume that LAB = 8 in., LBC = 23 in., LCD = 10 in., and LD-14 in. The bearing at B can be idealized as a roller support, and the beargt D can be idealized as a pin support. Determine the magnitude of the maximum bending stress in the shaft. A B LA LBC CD LDE Answer: σmax- ksi
A 1.750-in.-diameter solid steel shaft supports loads PA = 390 lb, PC = 540 lb, and...
A 1.750-in.-diameter solid steel shaft supports loads PA = 390 lb, PC = 540 lb, and PE = 390 lb, as shown. Assume that LAB = 11 in., LBC = 25 in., LCD = 13 in., and LDE = 17 in. The bearing at B can be idealized as a roller support, and the bearing at D can be idealized as a pin support. Determine the magnitude of the maximum bending stress in the shaft. P.s I can't upload the...
A solid steel shaft supports loads PA = 230 N and Pc = 660 N as...
A solid steel shaft supports loads PA = 230 N and Pc = 660 N as shown in the figure. Assume a = 475 mm, b = 705 mm, and c = 615 mm. The bearing at B can be idealized as a roller support and the bearing at D can be idealized as a pin support. If the allowable bending stress is 100 MPa, determine the minimum diameter that can be used for the shaft. D a b PC...
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends....
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
A circular shaft AB consists of a 10-in.-long, 7/8-in-diameter steel cylinder (G=11.2x106 psi), in which a...
A circular shaft AB consists of a 10-in.-long, 7/8-in-diameter steel cylinder (G=11.2x106 psi), in which a 5-in.-long, 5/8-in.-diameter cavity has been drilled from end B. The shaft is attached to fixed supports at both ends, and a 90 lb-ft torque is applied at its midsection (see Figure). Determine: 1. The reaction at each support. 2. The maximum shearing stress in shaft AB. 3. The maximum shearing stress in shaft BC. 5 in. 5 in. A с 90 lb. ft B
A tubular steel column CD supports horizontal cantilever arm ABC, as shown in the figure. Column...
A tubular steel column CD supports horizontal cantilever arm ABC, as shown in the figure. Column CD has an outside diameter of 9.000 in. and a wall thickness of 0.460 in. The loads are PA = 300 lb and Pb = 540 lb. Dimensions of the structure are a = 6.3 ft, b= 8.0 ft, and c = 14.0 ft. Determine the maximum compression stress at the base of column CD. b a PA C B A D *Part 1...
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long...
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long extends through and is completely bonded to a hollow aluminum LG = 27.5 GPa) tube. Aluminum tube (1) has an outside diameter of 89 mm, an inside diameter of 66 mm, and a length of 0.64 m. Both the brass shaft and the aluminum tube are securely attached to the wall support at A. Assume L1=L2 = 0.64 m, L3= 0.58 m, To =...
P9.047 GO Multipart Part 1 А box beam is fabricated from two plywood webs that are secured to dimension lumber boards at its top and bottom flanges. The beam supports a concentrated load of P-5000 lb...
P9.047 GO Multipart Part 1 А box beam is fabricated from two plywood webs that are secured to dimension lumber boards at its top and bottom flanges. The beam supports a concentrated load of P-5000 lb at the center of a span of length L 12 ft. The cross section dimensions are shown where h1 = 17 in h2 4.5 in, b1 3.0 in, and b2-1.00 in. Bolts %-in. diameter) connect the plywood webs and the lumber flanges at a...
A 1.875-in.-diameter solid steel shaft supports loads PA = 230 lb, PC = 560 lb, and PE-230 lb, as shown. Assume that LAB = 8 in., LBC = 23 in., LCD = 10 in., and LD-14 in. The bearing at B can be idealized as a roller support, and the beargt D can be idealized as a pin support. Determine the magnitude of the maximum bending stress in the shaft. A B LA LBC CD LDE Answer: σmax- ksi
A solid steel shaft supports loads PA = 230 N and Pc = 660 N as shown in the figure. Assume a = 475 mm, b = 705 mm, and c = 615 mm. The bearing at B can be idealized as a roller support and the bearing at D can be idealized as a pin support. If the allowable bending stress is 100 MPa, determine the minimum diameter that can be used for the shaft. D a b PC...
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
A circular shaft AB consists of a 10-in.-long, 7/8-in-diameter steel cylinder (G=11.2x106 psi), in which a 5-in.-long, 5/8-in.-diameter cavity has been drilled from end B. The shaft is attached to fixed supports at both ends, and a 90 lb-ft torque is applied at its midsection (see Figure). Determine: 1. The reaction at each support. 2. The maximum shearing stress in shaft AB. 3. The maximum shearing stress in shaft BC. 5 in. 5 in. A с 90 lb. ft B
A tubular steel column CD supports horizontal cantilever arm ABC, as shown in the figure. Column CD has an outside diameter of 9.000 in. and a wall thickness of 0.460 in. The loads are PA = 300 lb and Pb = 540 lb. Dimensions of the structure are a = 6.3 ft, b= 8.0 ft, and c = 14.0 ft. Determine the maximum compression stress at the base of column CD. b a PA C B A D *Part 1...
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long extends through and is completely bonded to a hollow aluminum LG = 27.5 GPa) tube. Aluminum tube (1) has an outside diameter of 89 mm, an inside diameter of 66 mm, and a length of 0.64 m. Both the brass shaft and the aluminum tube are securely attached to the wall support at A. Assume L1=L2 = 0.64 m, L3= 0.58 m, To =...
P9.047 GO Multipart Part 1 А box beam is fabricated from two plywood webs that are secured to dimension lumber boards at its top and bottom flanges. The beam supports a concentrated load of P-5000 lb at the center of a span of length L 12 ft. The cross section dimensions are shown where h1 = 17 in h2 4.5 in, b1 3.0 in, and b2-1.00 in. Bolts %-in. diameter) connect the plywood webs and the lumber flanges at a...
