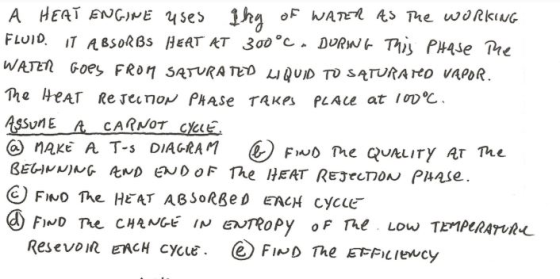

A heat engine uses 1kg of water
as the working fluid.It absorbs heat at 300 C. During the phase the
water goes from saturated liquid to saturated vapor. The heat
rejection phase takes place at 100 C.
Assume a Carnot cycle and do A through E.
Thanks!

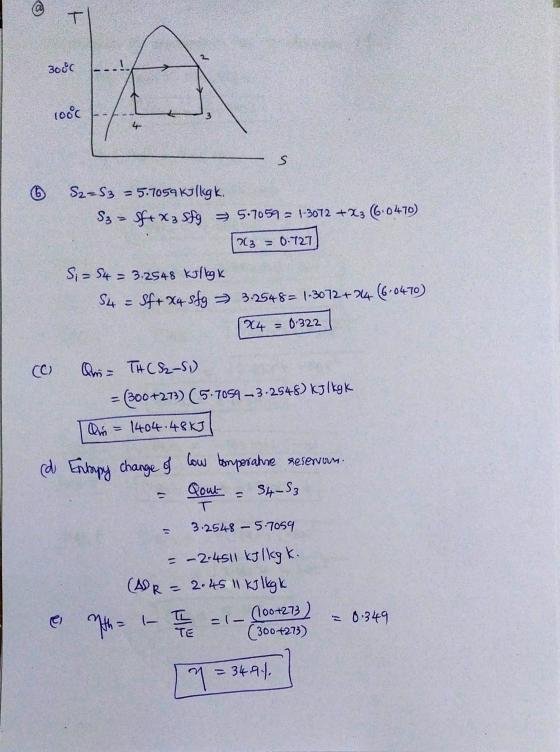

Homework Answers
Add Answer to:
A heat engine uses 1kg of water
as the working fluid.It absorbs heat at 300 C....
7. Consider a Carnot-cycle heat engine with water as the working fluid. The heat transfer to...
7. Consider a Carnot-cycle heat engine with water as the working fluid. The heat transfer to the water occurs at 150°C, during which process the water changes from saturated liquid to saturated vapor. The heat is rejected from the water at 25°C. (a) Show the Carnot-cycle on a T-s diagram (b) Find the properties (P, T, v, h, s) water at each state. Here v is the specific volume. (c) Determine the cycle thermal efficiency, net heat added and work...
A steady flow Carnot cycle uses water as the working fluid. Water changes from saturated liquid...
A steady flow Carnot cycle uses water as the working fluid. Water changes from saturated liquid to saturated vapor as heat is transferred to it from a source at 250 C. Heat rejection takes place at pressure of 20 kPa. Determine a) the thermal efficiency? b) the amount of heat rejected c) the net work output
Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler...
Water is the working fluid in a Carnot vapor power cycle.
Saturated liquid enters the boiler at a pressure of 160 bar, and
saturated vapor enters the turbine. The condenser pressure is 0.08
bar. Determine
(a) the thermal efficiency.
(b) the back work ratio.
(c) the heat transfer to the working fluid per
unit mass passing through boiler, in kJ/kg.
(d) the heat transfer from the working fluid per
unit mass passing through the condenser, in kJ/kg.
Problem 8.03 Water...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler at 16 MPa, and saturated vapor enters the turbine. The condenser pressure is 8 kPa. The mass flow rate of steam entering the turbine is 120 kg/s. Determine (a) the thermal efficiency. (b) the back work ratio. (c) the net power developed, in kW. (d) the rate of heat transfer from the working fluid passing through the condenser, in kW.
ne cycle adds and removes heat and removes work from a"working fluid" (usually steam) to convert...
ne cycle adds and removes heat and removes work from a"working fluid" (usually steam) to convert work. The working fluid goes through a "cycle", meaning that it starts and ends at the same thermodynam conditions (T, P, etc.) after passing through each step in the process. Each step is typically at steady state. It is heat namic nvenient to label the streams in the way that we used in class: (I) saturated liquid at high pressure Pu (2) saturated vapor...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the pressures of 4 MPa and 20 kPa. The fluid leaves the boiler at 550°C, the turbine efficiency is 89% and the fluid exits the condenser as saturated liquid. The flow rate is 81.5 kg/s and the pump efficiency is 52%. Determine: a. The net power output, in kW. b. The rate of heat input in the boiler, in kW. C. The rate of heat...
Thermodynamics 1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 va...
Thermodynamics
1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 vapor is fed into the turbine of the same turbine. The condenser of this turbine is operated at 8 kPa. The mass flowrate of the H20 in this cycle is 7.2x103 kg/min. Draw the path of this process on T-s diagram. Estimate the thermal efficiency...
Question #2 10 marks) A heat engine that uses water as the working fluid is being...
Question #2 10 marks) A heat engine that uses water as the working fluid is being used to produce power in a certain location. The condenser of the heat engine is being cooled by drawing 200 kg/s of water from a nearby lake at 25°C and discharging it at 50°C. The thermal efficiency of the heat engine is 40%. Furnace Boiler Condenser 25°C | water from lake 200 kg/s V 50°C water returned to the lake Calculate: i) The amount...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated...
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram...
7. Consider a Carnot-cycle heat engine with water as the working fluid. The heat transfer to the water occurs at 150°C, during which process the water changes from saturated liquid to saturated vapor. The heat is rejected from the water at 25°C. (a) Show the Carnot-cycle on a T-s diagram (b) Find the properties (P, T, v, h, s) water at each state. Here v is the specific volume. (c) Determine the cycle thermal efficiency, net heat added and work...
Water is the working fluid in a Carnot vapor power cycle.
Saturated liquid enters the boiler at a pressure of 160 bar, and
saturated vapor enters the turbine. The condenser pressure is 0.08
bar. Determine
(a) the thermal efficiency.
(b) the back work ratio.
(c) the heat transfer to the working fluid per
unit mass passing through boiler, in kJ/kg.
(d) the heat transfer from the working fluid per
unit mass passing through the condenser, in kJ/kg.
Problem 8.03 Water...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler at 16 MPa, and saturated vapor enters the turbine. The condenser pressure is 8 kPa. The mass flow rate of steam entering the turbine is 120 kg/s. Determine (a) the thermal efficiency. (b) the back work ratio. (c) the net power developed, in kW. (d) the rate of heat transfer from the working fluid passing through the condenser, in kW.
ne cycle adds and removes heat and removes work from a"working fluid" (usually steam) to convert work. The working fluid goes through a "cycle", meaning that it starts and ends at the same thermodynam conditions (T, P, etc.) after passing through each step in the process. Each step is typically at steady state. It is heat namic nvenient to label the streams in the way that we used in class: (I) saturated liquid at high pressure Pu (2) saturated vapor...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the pressures of 4 MPa and 20 kPa. The fluid leaves the boiler at 550°C, the turbine efficiency is 89% and the fluid exits the condenser as saturated liquid. The flow rate is 81.5 kg/s and the pump efficiency is 52%. Determine: a. The net power output, in kW. b. The rate of heat input in the boiler, in kW. C. The rate of heat...
Thermodynamics
1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 vapor is fed into the turbine of the same turbine. The condenser of this turbine is operated at 8 kPa. The mass flowrate of the H20 in this cycle is 7.2x103 kg/min. Draw the path of this process on T-s diagram. Estimate the thermal efficiency...
Question #2 10 marks) A heat engine that uses water as the working fluid is being used to produce power in a certain location. The condenser of the heat engine is being cooled by drawing 200 kg/s of water from a nearby lake at 25°C and discharging it at 50°C. The thermal efficiency of the heat engine is 40%. Furnace Boiler Condenser 25°C | water from lake 200 kg/s V 50°C water returned to the lake Calculate: i) The amount...
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram...
