1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length =...
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length =...

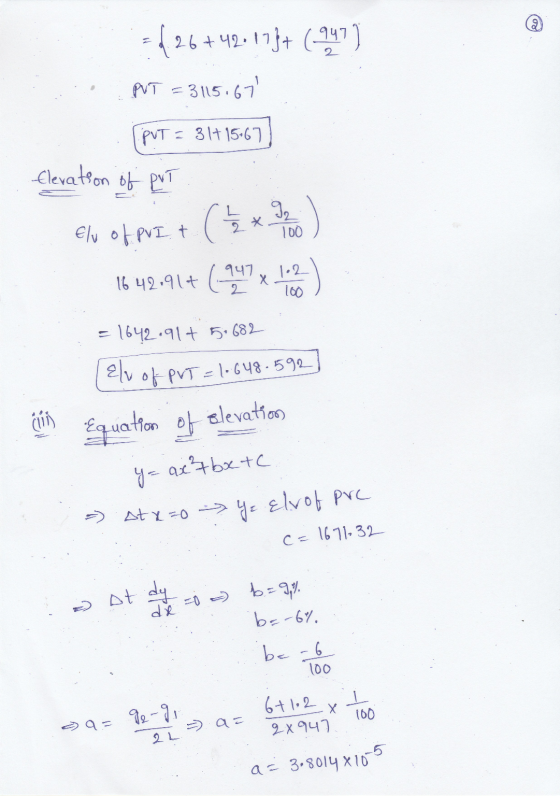

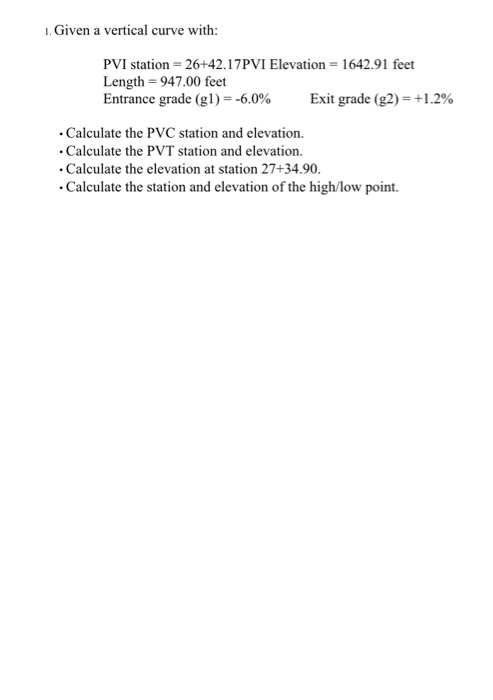

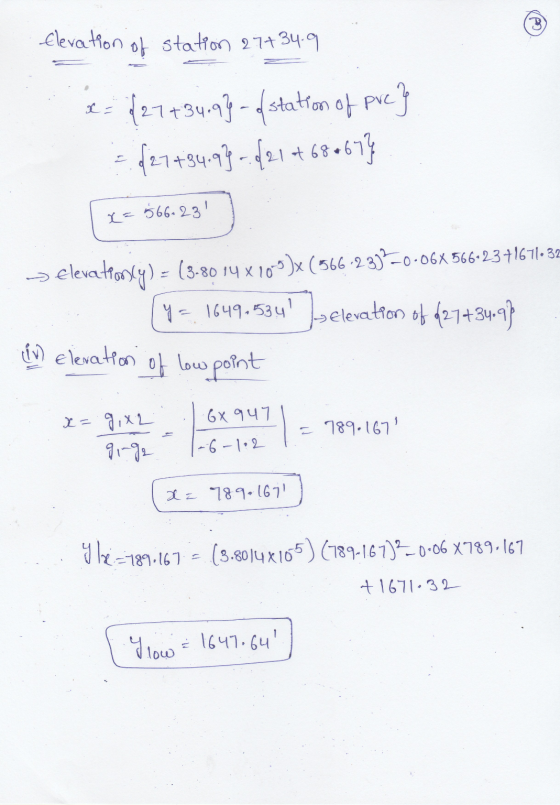

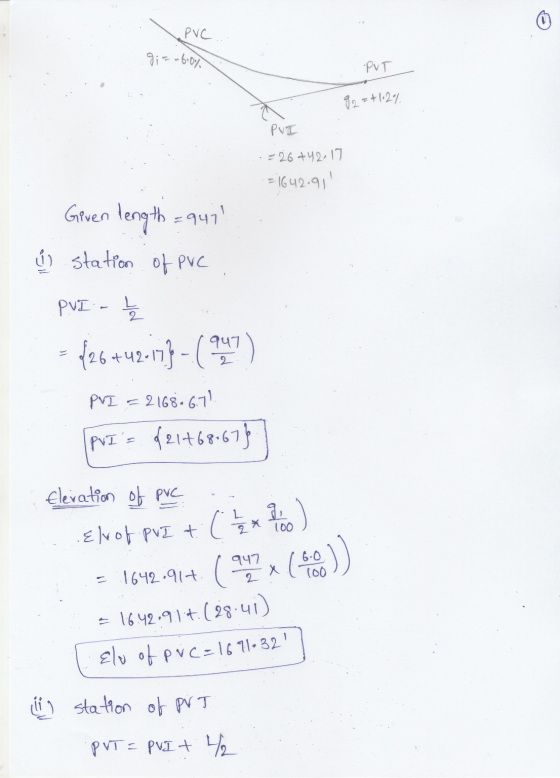

1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length =...
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
A 500-feet vertical curve connects a -4% grade to a +2percent grade with a PVI at station 35 + 60.55. The PVI has an ele...
A 500-feet vertical curve connects a -4% grade to a +2percent grade with a PVI at station 35 + 60.55. The PVI has an elevation of 438.24ft. (a) Calculate the location and elevation of: the PVC, the PVI, and the high point or low point on the curve. (b) What should be the maximum posted speed limit on this curse?
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation...
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation 300 feet. The initial grade is -3.5 % and the final grade is +5.5%. Determine the elevation and stationing of the lowest point, PVI, and PVT.
7. A sag vertical curve connects a-4.75% grade and a +3.75% grade. The PVI is at...
7. A sag vertical curve connects a-4.75% grade and a +3.75% grade. The PVI is at station 45+90.00 at an elevation of 611.00 ft. The design speed is 50 mi/h. Determine the minimum length of the vertical curve using the AASHTO method ("K" factors). Round the minimum length up to the next 10 ft multiple for design of the vertical curve and associated calculations. Using this length, determine: The station and elevation of the PVC The station and elevation of...
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guida...
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guidance, an overhead sign structure must be placed at station 55+85. The bottom of the sign will be 18 ft above the roadway surface (more than the recommended 16.5 feet to accommodate larger trucks that use the roadway). WEST 56 Utopia Botlom of sign 18...
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
please show steps and do it clearly 2. A 500 foot vertical curve connects a -4%...
please show steps and do it clearly
2. A 500 foot vertical curve connects a -4% grade to a +2 percent grade with a PVI at station 35+60.55. The PVI has an elevation of 438.24 ft. a. Calculation the location and elevation of the PVC, the PVT, and the high point or low point on the curve. b. What should be the maximum posted speed limit on this curve?
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
7. A sag vertical curve connects a-4.75% grade and a +3.75% grade. The PVI is at station 45+90.00 at an elevation of 611.00 ft. The design speed is 50 mi/h. Determine the minimum length of the vertical curve using the AASHTO method ("K" factors). Round the minimum length up to the next 10 ft multiple for design of the vertical curve and associated calculations. Using this length, determine: The station and elevation of the PVC The station and elevation of...
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guidance, an overhead sign structure must be placed at station 55+85. The bottom of the sign will be 18 ft above the roadway surface (more than the recommended 16.5 feet to accommodate larger trucks that use the roadway). WEST 56 Utopia Botlom of sign 18...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
please show steps and do it clearly
2. A 500 foot vertical curve connects a -4% grade to a +2 percent grade with a PVI at station 35+60.55. The PVI has an elevation of 438.24 ft. a. Calculation the location and elevation of the PVC, the PVT, and the high point or low point on the curve. b. What should be the maximum posted speed limit on this curve?
