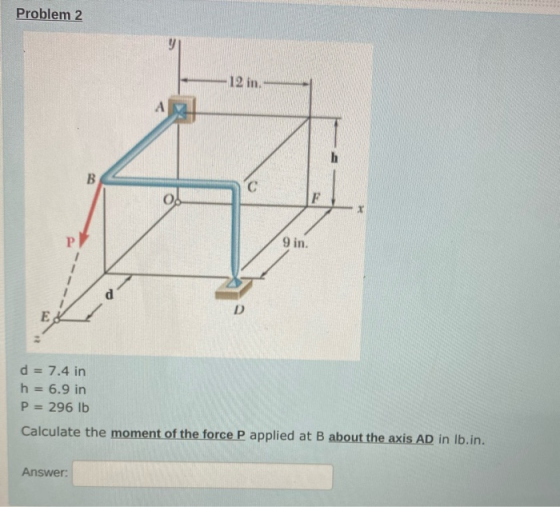

Problem 2 12 in А B 9 in. d D Ε. d = 7.4 in h...

Question

Question

science physics

Answer 1

Answer #1

م16 co-ordinges of each point (ه, 09 ,0) As رو, 609 ,Blo رو ,12,609) رو ,0 ,12 | ا انور ,ه ه ا ع ره وه ها رو ,12 : A : D - A:

Answer 2

Similar Homework Help Questions

THE ANSWERS FOR THE FORCE OF H ARE CORRECT Problem 03.097 - Replace a force-couple system...

THE ANSWERS FOR THE FORCE OF H ARE CORRECT Problem 03.097 - Replace a force-couple system on a block with an equivalent force-couple system at a given point A 62-lb force F and a 2200-lb in. couple M are applied to corner A of the block shown. Replace the given force-couple system with an equivalent force-couple system at corner H 14 in. ISi 45 in 25 in. 3 in. A Cartesian vector representation of the equivalent force at H is...
FA FB Fc с D E А B Lac LCD LDE LEB Determine the maximum absolute...

FA FB Fc с D E А B Lac LCD LDE LEB Determine the maximum absolute value of the bending moment in this beam. To do this you will probably need to draw a shear and moment diagram to determine where it occurs. The dimensions and forces on the beam are the following: FA = 104 lb, FB = 277 lb, Fc = 104.8 lb, Lac = 14.9 in., LcD = 18.1 in., LDE = 24.6 in., LEB = 10.3...
Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly....

Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly. Determine the moment of this force about point O F 4.6 lb 24 0.95" 1.35" k) lb-in Answer: Mo + Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly. Determine the moment of this force about point O F 4.6 lb 24 0.95" 1.35" k) lb-in Answer: Mo +

Problem 1. Given the 3-D sketch as shown of a tripod stand with a 300 ft"lb moment applied to the...

Problem 1. Given the 3-D sketch as shown of a tripod stand with a 300 ft"lb moment applied to the top at D (applied by a wrench). The tripod base is an equilateral triangle with 2 ft on each side. The height of the stand is 4 ft. Find the Resultant Force at points A, B, and C. The moment at D is in a parallel plane to the plane A, B and C are in. D 300 ft*lb h=4ft...
F M E B. А k 0.5 ft+0.5 ft+0.5 ft + A is a pin, B...

F M E B. А k 0.5 ft+0.5 ft+0.5 ft + A is a pin, B is a roller support. The beam weighs 50 lbs. Its center of gravity is located in the middle of segment BC Point E is located in the middle of segment AC. M is a couple (moment) applied at point C equal to 1430 lb.ft F= 242 lb a=16 deg Calculate the internal normal force, shear force and bending moment at point E in Ibs....
please show all work clearly Problem 1 10 lb y F L ВІ M 45 lb...

please show all work clearly Problem 1 10 lb y F L ВІ M 45 lb M = 194 lb.in F = 36 lb a = 53 deg L = 12 in d = 7.2 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis. Answer:

please help solve for what is asked in orobkems A-H and the free body diagrams as...

please help solve for what is asked in orobkems A-H and the free body diagrams as well. Will upvote if correct A B C D E F G H B 4 m 6 m 3 m 12 m 2 m F=80 N Determine the projected component of the force acting along the axis AB of the pipe. 60° A The 30kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium....
Id) Determine the moment of inertia about the y axis. [9 Marks) Total: 20 Marks Question...

Id) Determine the moment of inertia about the y axis. [9 Marks) Total: 20 Marks Question 2 If P-40 kN load is applied at point C and all pins are in double shear, and each has a diameter of 20 mm. 1.5 m 2 m 2a) Calculate force FcB 14 Marks 2b) Calculate shear force at A. 16 Marks 2e) Calculate shear force in the pins at B and C 12+2 Marks 2d) Determine the average shear stress in the...
Statics Problem Problem #5 In the Diagram below, there are 2 forces acting on the pipe....

Statics Problem Problem #5 In the Diagram below, there are 2 forces acting on the pipe. a) Moment at Point O, (10 pts) b) Moment about the line OA (Section between the origin and 1" pipe joint)(10 pts) c) Moment about the line AO (5 pts) F2 1-10i +25j + 20k) Ib 2 ft 0 1.5 ft 2ft 2 f Problem #6( The Beam in the Figure below is subjected to 3 forces. Determine by any method of choice: a)...

Problem 2 The frame consists of two rigid bars that are pinned at A, B, and...

Problem 2 The frame consists of two rigid bars that are pinned at A, B, and C. If the pin at B can only resist a net force of 550 lb, determine the maximum value of P2 that can be applied to the frame. Answer: Name: Date: EGM 2511 Statics Subject: Recitation 5.1 University of Florida Frame Analysis Problem 2 The frame consists of two rigid bars that are pinned at 4, B, and C. If the pin at B...
