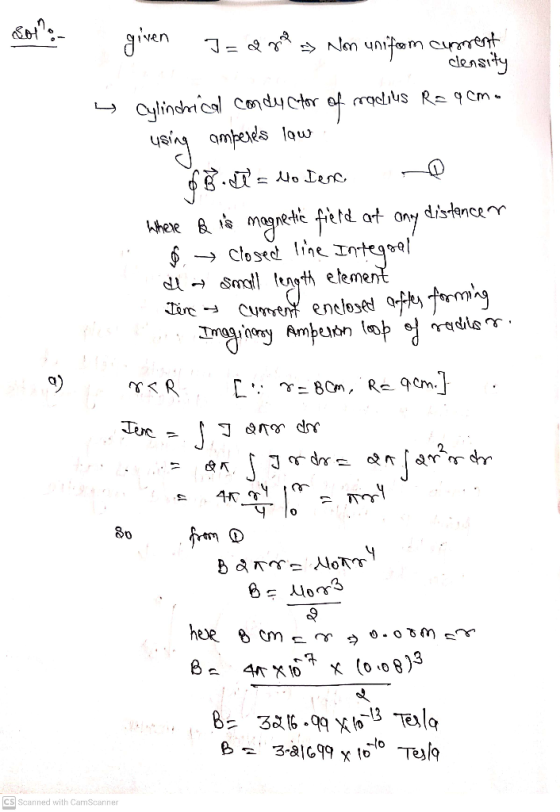

Note: the options given in the question has not given any unit.
I am solving by S.I. unit..
Add Answer to:
please answer each question separately
A cylindrical conductor of radius R = 9 cm has a...
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J =...

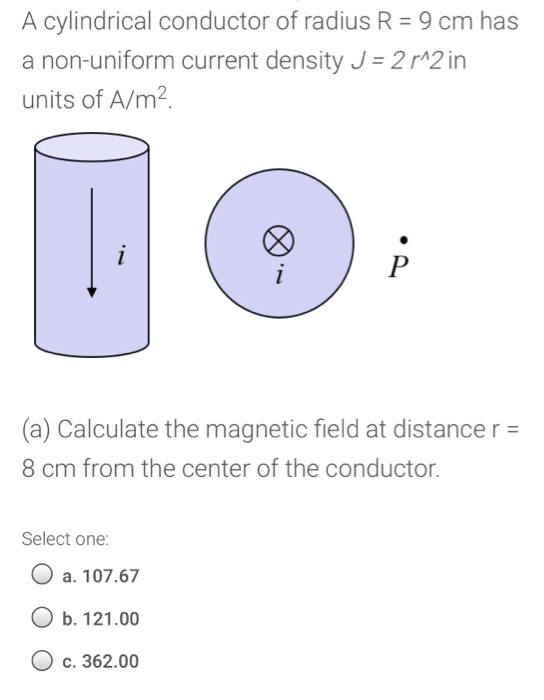

A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2in units of A/m2 i Р (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: a. 107.67 O b. 121.00 O c. 362.00
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J =...
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2 in units of A/m2 P (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: O a. 107.67 O b. 121.00 O c. 362.00
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J =...
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2 in units of A/m2 P (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: O a. 107.67 O b. 121.00 O c. 362.00
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2. b (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one a. 13640.60 E-7 T b. 501.03 E-7 T c. 219.45 E-7 T A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has...
3 part Question? A hollow cylindrical conductor of inner radius a = 9 cm, and outer...
3 part Question?
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r^2 in units of A/m2 . . i . Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one: a. 13640.60 E-7 T b. 219.45 E-ZT c. 501.03 E-7T A hollow cylindrical conductor of inner radius a = 9 cm, and outer...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22,5 has a non-uniform current density J = r^2 in units of A/m2 Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one: O a. 219.45 E-7T b. 13640.60 E-7T O c. 501.03 E-ZT
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2 . (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2 (b) Calculate...
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J =...
A cylindrical conductor of radius R = 9 cm has a non-uniform
current density J = 2 r^2 in units of A/m2.
(a) Calculate the magnetic field at distance r = 8 cm from the
center of the conductor.

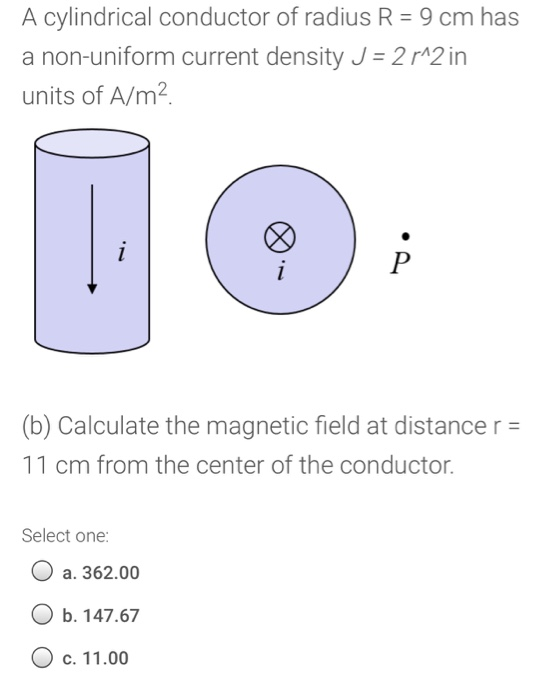

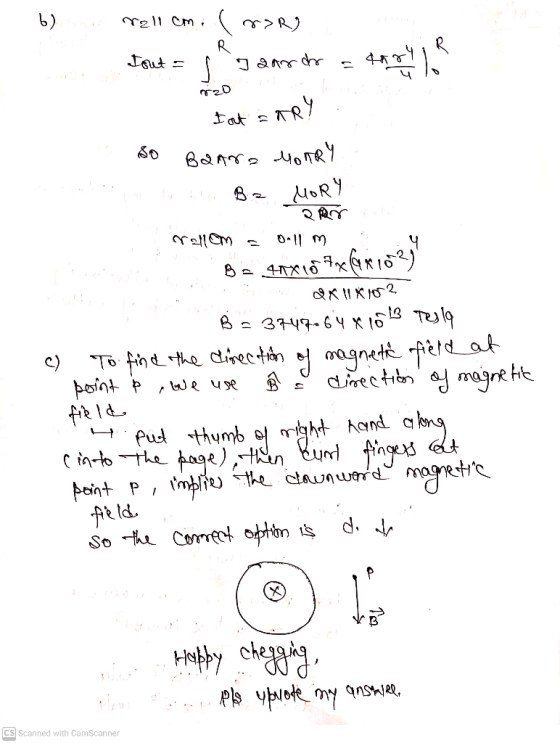

(b) Calculate the magnetic field at distance r = 11 cm from the
center of the conductor.
i i P
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non-uniform current density J = r2 in units of A/m2. i P (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor Select one: O a. 417.59 E-ZT o b. 11603.67 E-7 T O c. 502.53 E-7 T
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r2 in units of A/m2 (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one O a. 501.03 E-7 T O b. 219.45 E-7 T O c. 13640.60 E-7T
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2in units of A/m2 i Р (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: a. 107.67 O b. 121.00 O c. 362.00
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2 in units of A/m2 P (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: O a. 107.67 O b. 121.00 O c. 362.00
A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r^2 in units of A/m2 P (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: O a. 107.67 O b. 121.00 O c. 362.00
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2. b (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one a. 13640.60 E-7 T b. 501.03 E-7 T c. 219.45 E-7 T A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has...
3 part Question?
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r^2 in units of A/m2 . . i . Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one: a. 13640.60 E-7 T b. 219.45 E-ZT c. 501.03 E-7T A hollow cylindrical conductor of inner radius a = 9 cm, and outer...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22,5 has a non-uniform current density J = r^2 in units of A/m2 Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one: O a. 219.45 E-7T b. 13640.60 E-7T O c. 501.03 E-ZT
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2 . (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2 (b) Calculate...
A cylindrical conductor of radius R = 9 cm has a non-uniform
current density J = 2 r^2 in units of A/m2.
(a) Calculate the magnetic field at distance r = 8 cm from the
center of the conductor.
(b) Calculate the magnetic field at distance r = 11 cm from the
center of the conductor.
i i P
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non-uniform current density J = r2 in units of A/m2. i P (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor Select one: O a. 417.59 E-ZT o b. 11603.67 E-7 T O c. 502.53 E-7 T
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r2 in units of A/m2 (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one O a. 501.03 E-7 T O b. 219.45 E-7 T O c. 13640.60 E-7T
