Problem 3 (30%) Dry air flows from a reservoir in which the temperature is 200°C and...
Problem 3 (30%) Dry air flows from a reservoir in which the temperature is 200°C and...

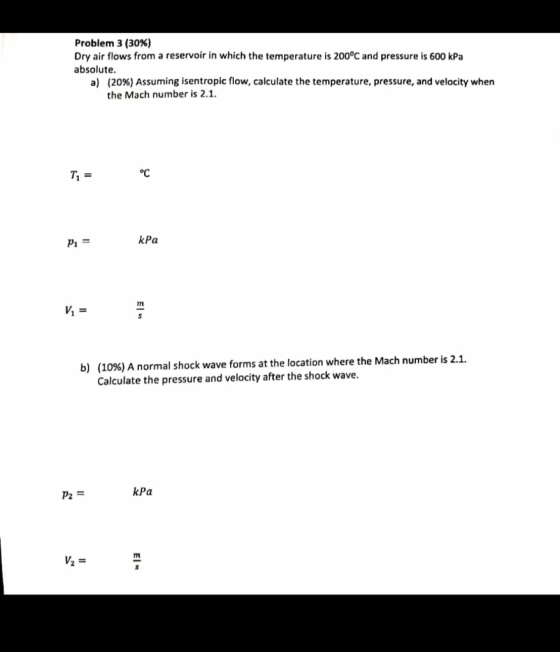

Problem 3 (30%) Dry air flows from a reservoir in which the temperature is 200°C and pressure is 600 kPa absolute. a) (20%) Assuming isentropic flow, calculate the temperature, pressure, and velocity when the Mach number is 2.1. T, = °C P1 = kPa V1 = b) (10%) A normal shock wave forms at the location where the Mach number is 2.1. Calculate the pressure and velocity after the shock wave. p2 = kPa m V2 =

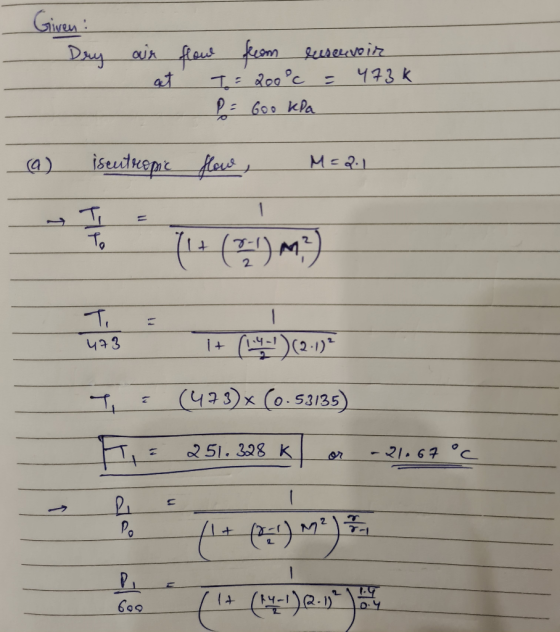

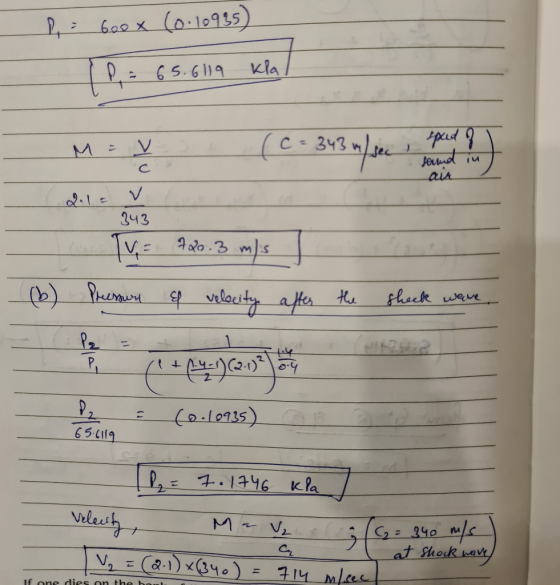

minimum of 3 significant figures please Dry air flows from a reservoir in which the temperature...
minimum of 3 significant figures please
Dry air flows from a reservoir in which the temperature is 200°C and pressure is 600 kPa absolute. a) (20%) Assuming isentropic flow, calculate the temperature, pressure, and velocity when the Mach number is 2.1. T1 = °C P. = kPa 777 Vi = S b) (10%) A normal shock wave forms at the location where the Mach number is 2.1. Calculate the pressure and velocity after the shock wave. P2 = kPa m...
SULIT (ENT247) (b) Air flows from a reservoir at 20°C and 200 kPa through a 5...
SULIT (ENT247) (b) Air flows from a reservoir at 20°C and 200 kPa through a 5 cm-diameter throat and exits from a 10-cm-diameter nozzle as shown in Figure 5. A normal shock wave located at a position of the diameter is 7.5 cm. Assume y = 1,4 and R-287 J/kg.K Udara mengalir dari kawas an tadahan pada 20°C dan 200 kPa melalui nosel dengan leheran 5 cm diameter dan keluaran pada 10 cm diameter seperti diturjukkan dalam Gambarajah 5. Satu...
Problem 4 (15%) A supersonic wind tunnel operates with air at the total pressure Pt temperature...
Problem 4 (15%) A supersonic wind tunnel operates with air at the total pressure Pt temperature Te 420K, and Mach number M 2.0. 420kPa absolute, total a) (10%) Calculate the temperature and the pressure in the test section (where M 2.0 occurs). T1 = kPa (5%) if a normal shock wave occurs in the test section, calculate the temperature and pressure after the shock wave. b) kPa
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, wh...
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, what is the throat pressure and temperature? c. What are the Mach number and speed (m/s) at the throat? I d. If the flow in the nozzle is isentropic, but a normal shock forms at the exit plane, what are the pressure, temperature and Mach number downstream...
Question 1.4 A convergent-divergent nozzle is designed to operate with isentropic flow with an exit Mach number, Me. The flowin the nozzle is supplied from a reservoir of air with a static pressure o...
Question 1.4 A convergent-divergent nozzle is designed to operate with isentropic flow with an exit Mach number, Me. The flowin the nozzle is supplied from a reservoir of air with a static pressure ofPr and a static temperature of Tr and the nozzle has a throat area, AT, as specified in the table below Value Unit Design Data Exit Mach number (ME) 0.55 Area of throat (AT) 600 kPa Reservoir static pressure (PR) 380 WAT Reservoir static temperature (TR) kPa...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging nozzle. Air flows through an isentropic converging-diverging nozzle The air stagnation pressure and temperature are 7.0 x10 N/m2 and 500 K, respectively The diverging portion of the nozzle has an area ratio of AJA 13.0. A normal shock wave stands in the diverging section where the Mach number is 4.0. Analyze the case to caleulate the Mach number and the static temperature and pressure...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Problem 3 (30%) Dry air flows from a reservoir in which the temperature is 200°C and pressure is 600 kPa absolute. a) (20%) Assuming isentropic flow, calculate the temperature, pressure, and velocity when the Mach number is 2.1. T, = °C P1 = kPa V1 = b) (10%) A normal shock wave forms at the location where the Mach number is 2.1. Calculate the pressure and velocity after the shock wave. p2 = kPa m V2 =
minimum of 3 significant figures please
Dry air flows from a reservoir in which the temperature is 200°C and pressure is 600 kPa absolute. a) (20%) Assuming isentropic flow, calculate the temperature, pressure, and velocity when the Mach number is 2.1. T1 = °C P. = kPa 777 Vi = S b) (10%) A normal shock wave forms at the location where the Mach number is 2.1. Calculate the pressure and velocity after the shock wave. P2 = kPa m...
SULIT (ENT247) (b) Air flows from a reservoir at 20°C and 200 kPa through a 5 cm-diameter throat and exits from a 10-cm-diameter nozzle as shown in Figure 5. A normal shock wave located at a position of the diameter is 7.5 cm. Assume y = 1,4 and R-287 J/kg.K Udara mengalir dari kawas an tadahan pada 20°C dan 200 kPa melalui nosel dengan leheran 5 cm diameter dan keluaran pada 10 cm diameter seperti diturjukkan dalam Gambarajah 5. Satu...
Problem 4 (15%) A supersonic wind tunnel operates with air at the total pressure Pt temperature Te 420K, and Mach number M 2.0. 420kPa absolute, total a) (10%) Calculate the temperature and the pressure in the test section (where M 2.0 occurs). T1 = kPa (5%) if a normal shock wave occurs in the test section, calculate the temperature and pressure after the shock wave. b) kPa
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, what is the throat pressure and temperature? c. What are the Mach number and speed (m/s) at the throat? I d. If the flow in the nozzle is isentropic, but a normal shock forms at the exit plane, what are the pressure, temperature and Mach number downstream...
Question 1.4 A convergent-divergent nozzle is designed to operate with isentropic flow with an exit Mach number, Me. The flowin the nozzle is supplied from a reservoir of air with a static pressure ofPr and a static temperature of Tr and the nozzle has a throat area, AT, as specified in the table below Value Unit Design Data Exit Mach number (ME) 0.55 Area of throat (AT) 600 kPa Reservoir static pressure (PR) 380 WAT Reservoir static temperature (TR) kPa...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging nozzle. Air flows through an isentropic converging-diverging nozzle The air stagnation pressure and temperature are 7.0 x10 N/m2 and 500 K, respectively The diverging portion of the nozzle has an area ratio of AJA 13.0. A normal shock wave stands in the diverging section where the Mach number is 4.0. Analyze the case to caleulate the Mach number and the static temperature and pressure...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
