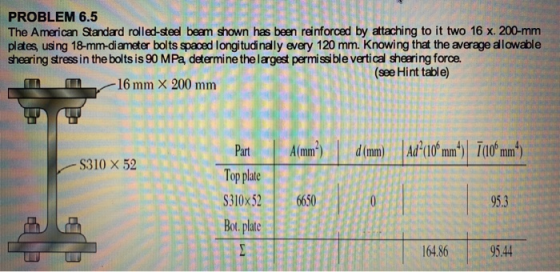

PROBLEM 6.5 The American Standard rolled-steel beam shown has been reinforced by attaching to it two...
Please show all the steps and calculations,
thanks
PROBLEM 1 The rolled-steel beam shown has been reinforced by attaching to it two 10 x 175-mm plates, using 20-mm-diameter bolts spaced longitudinally every 150 mm. Knowing that the average allowable shearing stress in the bolts is 90 MPa, determine the largest permissible vertical shearing force. W250 x 44.8

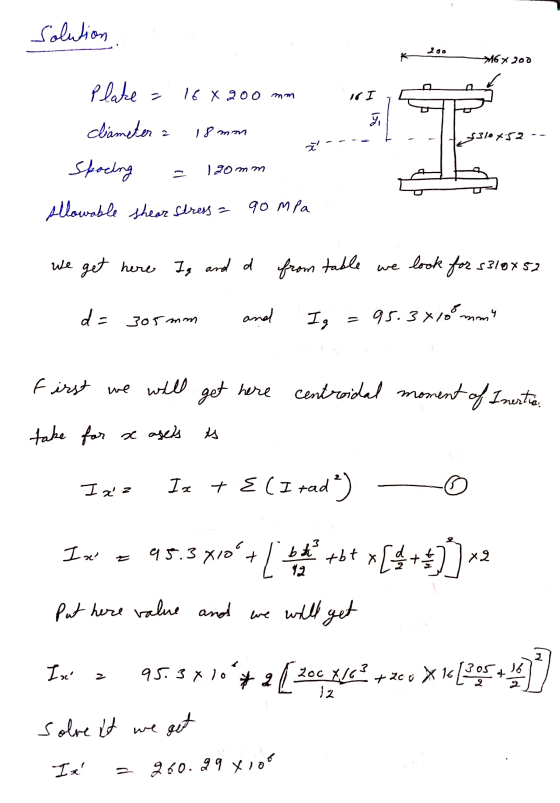

GE206, 2018 Spring Name: 3/28/2018, close book (one summary sheet allowed) 2. The American Standard rolled-steel beam, 5310 x74, shown has been reinforced by attaching to it two 16 x 200 -mm plates, using 18-mm diameter boits spaced longitudinally every 120 mm Knowing that the average allowable shearing stress in the bolts is 90 MPa, determine the largest permissible vertical shearing force. (50 points 16 x 200 mm 8310X74
Could anyone please help me
with Problem #1.1 based on the cross-section given in Problem #6.5?
Thank you so much!
1.1 A simply supported 5-m beam, with the cross section shown in Text Problem 6.5, supports a uniformly distributed load. Determine the maximum required strength per unit length (longitudinal shear flow) at the 12 mm x 175 mm plate-W250x44.8 section bolted connection interface for the beam to develop its maximum moment. Assume the maximum allowable tensile/compressive stress in the steel...
Required information A composite beam is made by attaching the timber and steel portions shown with bolts of 12-mm diameter spaced longitudinally every 200 mm. The modulus of elasticity is 10 GPa for the wood and 200 GPa for the steel. The vertical shear is 4.2 KN - 150 mm 12 mm 12 mm Determine the shearing stress at the center of the cross section (Round the final answers to two decimal places.) (Hint: Both Q and are computed by...
A W410 × 60 steel beam (see
Appendix B) is simply supported at its ends and carries a
concentrated load of P = 300 kN at the center of a 6.0-m
span. The W410 × 60 shape will be strengthened by adding two cover
plates of width b = 250 mm and thickness t = 16
mm to its flanges, as shown. Each cover plate is attached to its
flange by pairs of bolts spaced at intervals of s =...
