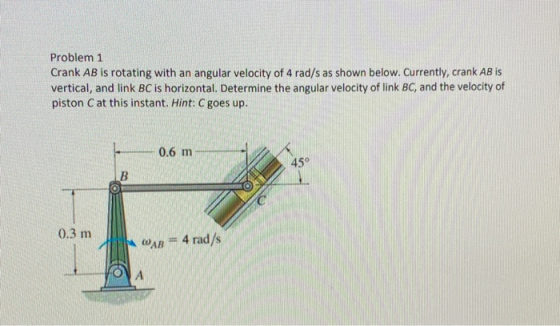

Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below....

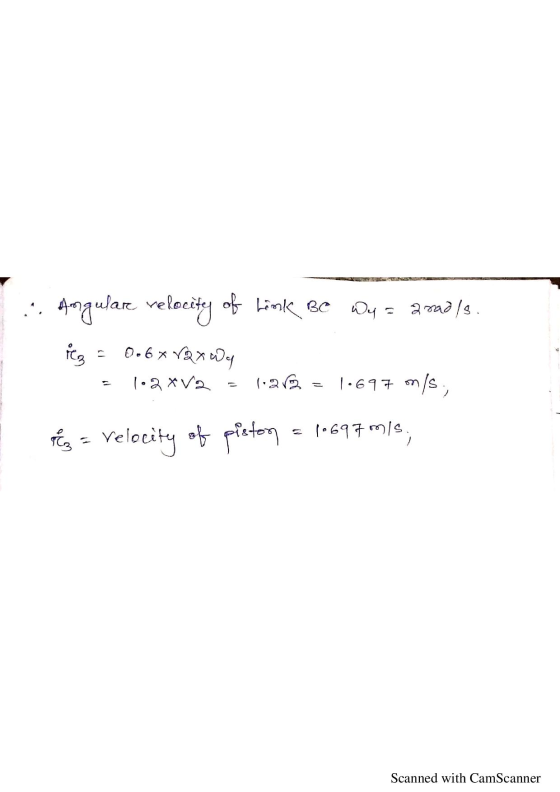

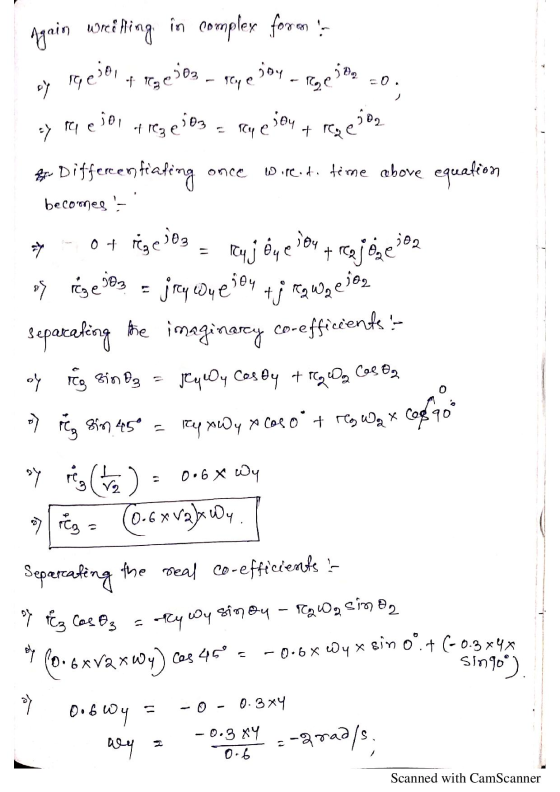

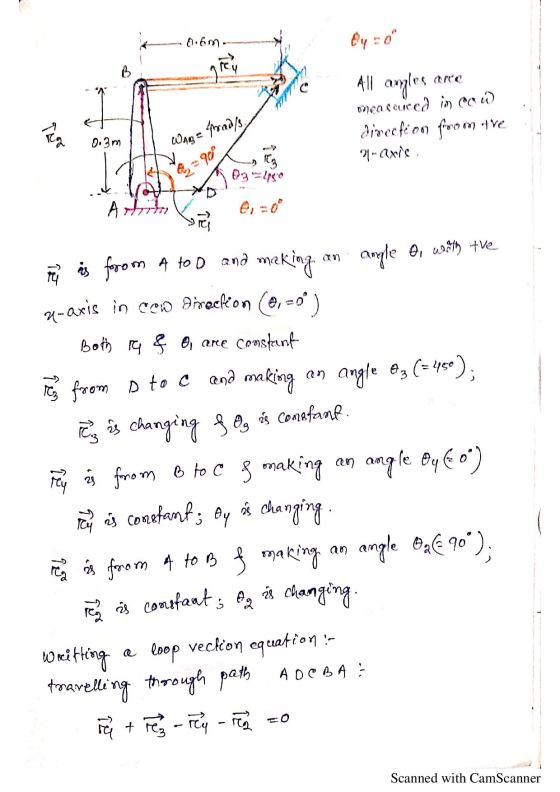

F16-10. If crank OA rotates with an angular velocity of ω :: 12 rad/s, determine the...
F16-10. If crank OA rotates with an angular velocity of ω :: 12 rad/s, determine the velocity of piston B and the angular velocity of rod AB at the instant shown. 0.6 m 0.3 m 12 rad/s 30° F16-10
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The angle between links 3 and 4 is fized so they have the same angular velocity. Consider Cs as point on Link 3 sliding through the bearing on link 4. (100 points) C3 90° A = (0,0). Figure 3: Slider crank inversion. (110.09,0) cm....
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad...
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
1. At the instant shown, the angular velocity of the cam AB is 30 rad/s. The...
1. At the instant shown, the angular velocity of the cam AB is 30 rad/s. The link BC is horizontal, and rod CD is vertical. Use the following dimensions: d1 = 300 mm, d2 = 600 mm, dz = 400 mm, and 0= 30°. a) For link BC, draw a kinematic diagram to show all vectors involved in velocity analysis. (3 pts) b) Use the relative velocity equation (NOT the instantaneous center of zero velocity) to determine the angular velocity...
In a slider crank mechanism at the given instant member AB (crank) has uniform angular motion...
In a slider crank mechanism at the given instant member AB (crank) has uniform angular motion as shown. Draw the position and velocity diagrams of the mechanism and determine angular velocity of BC at this instant. [Remember: velocity of a rotating link, Vero] Name and ID and Sienature on the 7 in. 3 rad/s Sin. 5 in. Attach File
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? :...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of...
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of 4.0 rad/s and an angular acceleration of 3.5 rad/s, both counter-clockwise. Pin A is fixed and piston C is constrained to move ina horizontal slot at the same elevation as pin A. Determine the magnitude of the velocity of piston C and the magnitude of the acceleration of pin B at this instant. Problem 420 points) At the given insadoekvise. Pin A is fixed...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
2. The crank AB rotates counter-clockwise with the angular velocity of 10 rad/s. The piston is...
2. The crank AB rotates counter-clockwise with the angular velocity of 10 rad/s. The piston is displaced with da = 7.803 in from home position Co. The home position of the piston is yco = 43.803”. The unit vector of the sliding direction is: u Determine: (50 pts) u © - = 7.803 in DO-+c 2 in 24 in в (о 12 in А Write the coordinates of all joints and COM. Assume the COM is in the center of...
F16-10. If crank OA rotates with an angular velocity of ω :: 12 rad/s, determine the velocity of piston B and the angular velocity of rod AB at the instant shown. 0.6 m 0.3 m 12 rad/s 30° F16-10
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The angle between links 3 and 4 is fized so they have the same angular velocity. Consider Cs as point on Link 3 sliding through the bearing on link 4. (100 points) C3 90° A = (0,0). Figure 3: Slider crank inversion. (110.09,0) cm....
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
1. At the instant shown, the angular velocity of the cam AB is 30 rad/s. The link BC is horizontal, and rod CD is vertical. Use the following dimensions: d1 = 300 mm, d2 = 600 mm, dz = 400 mm, and 0= 30°. a) For link BC, draw a kinematic diagram to show all vectors involved in velocity analysis. (3 pts) b) Use the relative velocity equation (NOT the instantaneous center of zero velocity) to determine the angular velocity...
In a slider crank mechanism at the given instant member AB (crank) has uniform angular motion as shown. Draw the position and velocity diagrams of the mechanism and determine angular velocity of BC at this instant. [Remember: velocity of a rotating link, Vero] Name and ID and Sienature on the 7 in. 3 rad/s Sin. 5 in. Attach File
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of 4.0 rad/s and an angular acceleration of 3.5 rad/s, both counter-clockwise. Pin A is fixed and piston C is constrained to move ina horizontal slot at the same elevation as pin A. Determine the magnitude of the velocity of piston C and the magnitude of the acceleration of pin B at this instant. Problem 420 points) At the given insadoekvise. Pin A is fixed...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
2. The crank AB rotates counter-clockwise with the angular velocity of 10 rad/s. The piston is displaced with da = 7.803 in from home position Co. The home position of the piston is yco = 43.803”. The unit vector of the sliding direction is: u Determine: (50 pts) u © - = 7.803 in DO-+c 2 in 24 in в (о 12 in А Write the coordinates of all joints and COM. Assume the COM is in the center of...
