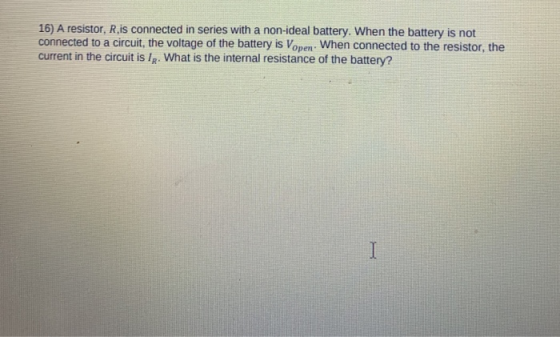

16) A resistor, R is connected in series with a non-ideal battery. When the battery is not connected to a circuit, the voltag

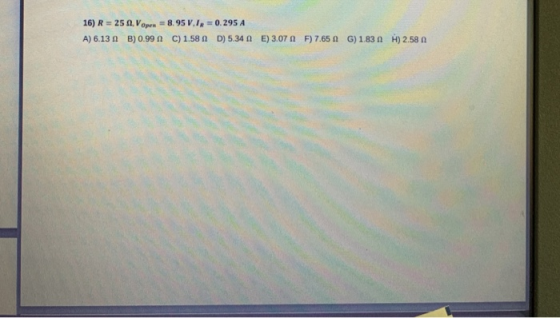

16) R = 25 Vopen = 8.95 V.IR = 0.295 A A) 6.131 B) 0.990 C) 1.58 D) 5.34 n E) 3.070 F) 7.650 G) 1.830 H)2.58
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

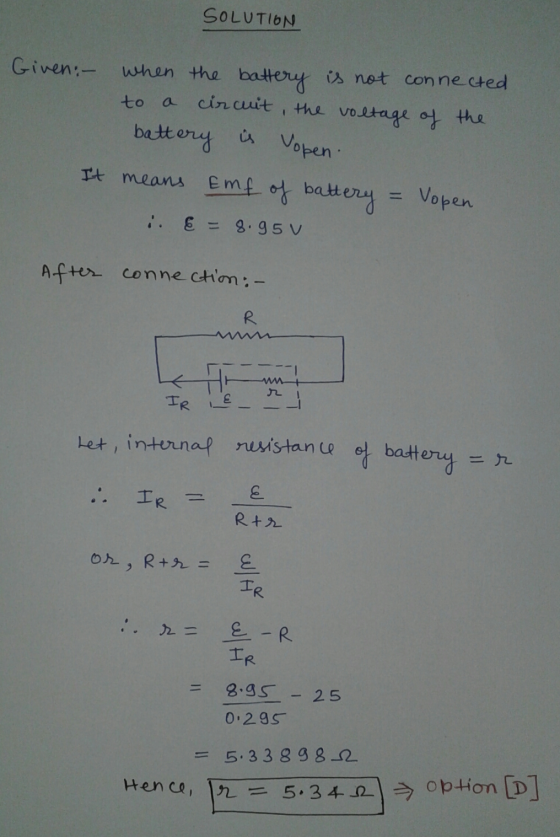

SOLUTION to - Given :- when the battery is not connected circuit, the voltage of the battery is Vopen. It means Emf of batter
