4. Determine the maximum force P which can be applied before slipping occurs a point A....
Determine the maximum force P which can be applied before slipping occurs a point A. The...

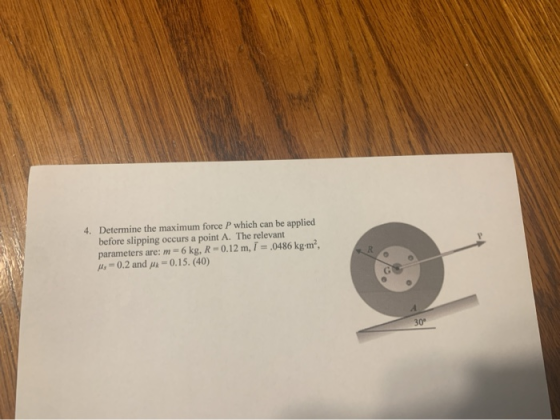

Determine the maximum force P which can be applied before slipping occurs a point A. The relevant parameters are: m=6 kg, R = 0.12 m, 1 = .0486 kg.m, us = 0.2 and uk = 0.15. (40) R 30°
4. Determine the maximum force P which can be applied before slipping occurs a point A....
4. Determine the maximum force P which can be applied before slipping occurs a point A. The relevant parameters are m-6kg, R-0.12 m. - .0486 kg-m', #1. - 0.2 and A-0.15. (40) <
Problem 4 Determine the maximum force P that can be applied on the system if the maximum allowable tension and comp...
Problem 4 Determine the maximum force P that can be applied on the system if the maximum allowable tension and compression in each bar are respectively 4 kN and 3 kN. d/2 d/2
B 30 Part C Determine the maximum force P that can be applied without causing the...
B 30 Part C Determine the maximum force P that can be applied without causing the two 51-kg crates to move. The coefficient of static friction between each crate and the ground is his = 0.33 Express your answer to three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer
1. 300 N is applied to the 60-kg cart. Determine A force of P the reactions...
1. 300 N is applied to the 60-kg cart. Determine A force of P the reactions at both the wheels at A and both the wheels When a rigid body undergoes only translation, all the particles of the body have the same acceleration so aG-a and ?-0 at B. Also, what is the acceleration of the cart? The massThe equations of motion become: center of the cart is at C Build moment equation both ways (at center of gravity and...
Problem 8.62 Part A Determine the maximum ram force P that can be applied to the...
Problem 8.62 Part A Determine the maximum ram force P that can be applied to the clamp at Dif the allowable normal stress for the material is allow = 190 MPa (Figure 1) Express your answer using three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 > 0 -200 mm 10 mm 40 mm 60 mm -10 mm
Determine the maximum ram force P that can be applied to the clamp at D if...
Determine the maximum ram force P that can be applied to the clamp at D if the allowable normal stress in the clamp is 180 MPa for both tension and compression. The clamp has a T-shape cross section shown through a-a. Ans: 9.08 kN
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine...
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine the reactions at the wheels at A and B. Also, what is the acceleration of the cart? The mass center of the cart is at G. 30° 0.4 m 0.3 m B 0.3 m 0.2 m 0.08 m
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine...
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine the reactions at the wheels at A and B. Also, what is the acceleration of the cart? The mass center of the cart is at G. 30° 0.4 m 0.3 m B. 0.3 m 0.2 m - 0.08 m
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight...
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight of the box is 36 lb Find: the maximum force P that can be applied without tipping the box. Assume that 1) the friction coefficient is high enough to prevent slipping and 2) the center of gravity of the box is at the box's geometric center. 6 feet, 0
Determine the maximum force P which can be applied before slipping occurs a point A. The relevant parameters are: m=6 kg, R = 0.12 m, 1 = .0486 kg.m, us = 0.2 and uk = 0.15. (40) R 30°
4. Determine the maximum force P which can be applied before slipping occurs a point A. The relevant parameters are m-6kg, R-0.12 m. - .0486 kg-m', #1. - 0.2 and A-0.15. (40) <
Problem 4 Determine the maximum force P that can be applied on the system if the maximum allowable tension and compression in each bar are respectively 4 kN and 3 kN. d/2 d/2
B 30 Part C Determine the maximum force P that can be applied without causing the two 51-kg crates to move. The coefficient of static friction between each crate and the ground is his = 0.33 Express your answer to three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer
1. 300 N is applied to the 60-kg cart. Determine A force of P the reactions at both the wheels at A and both the wheels When a rigid body undergoes only translation, all the particles of the body have the same acceleration so aG-a and ?-0 at B. Also, what is the acceleration of the cart? The massThe equations of motion become: center of the cart is at C Build moment equation both ways (at center of gravity and...
Problem 8.62 Part A Determine the maximum ram force P that can be applied to the clamp at Dif the allowable normal stress for the material is allow = 190 MPa (Figure 1) Express your answer using three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 > 0 -200 mm 10 mm 40 mm 60 mm -10 mm
Determine the maximum ram force P that can be applied to the clamp at D if the allowable normal stress in the clamp is 180 MPa for both tension and compression. The clamp has a T-shape cross section shown through a-a. Ans: 9.08 kN
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine the reactions at the wheels at A and B. Also, what is the acceleration of the cart? The mass center of the cart is at G. 30° 0.4 m 0.3 m B 0.3 m 0.2 m 0.08 m
Problem-1: A force of P = 200 N is applied to the 80 kg cart. Determine the reactions at the wheels at A and B. Also, what is the acceleration of the cart? The mass center of the cart is at G. 30° 0.4 m 0.3 m B. 0.3 m 0.2 m - 0.08 m
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight of the box is 36 lb Find: the maximum force P that can be applied without tipping the box. Assume that 1) the friction coefficient is high enough to prevent slipping and 2) the center of gravity of the box is at the box's geometric center. 6 feet, 0
