A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate...

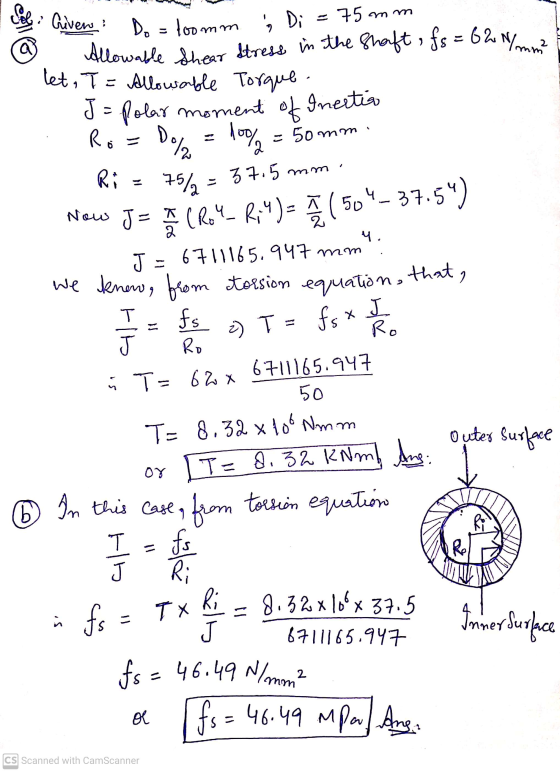

A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate the allowable torque that can be transmitted if the allowable shear stress is 62 MPa. When the allowable torque is applied, calculate the shear stress at the inner surface of the shaft.
Homework Answers
Add Answer to:
A hollow circular steel shaft has a 100-mm outside diameter and
a 75-mm inside diameter. Calculate...
Q.3. A hollow steel shaft ACB of outside diameter 50 mm and inside diameter 40 mm...
Q.3. A hollow steel shaft ACB of outside diameter 50 mm and inside diameter 40 mm is fixed at ends A and B. Horizontal forces P are applied at the ends of a vertical arm that is welded to the shaft at point C. The allowable shear stress in the shaft is tall 45 MPa. Determine the maximum allowable force P 200 mm 200 mm 600 mm 400 mm
Problem 1 (33 pts) The hollow shaft of inside diameter 8 mm, outside diameter 12 mm,...
Problem 1 (33 pts) The hollow shaft of inside diameter 8 mm, outside diameter 12 mm, L - 1.2 m, and shear modulus G = 80 GPa is subjected to T. Shear stress Txy at point A located at the outside of the shaft was found to be 48.96 MPa. Find the rotation of the shaft at its free end (where T' is applied) in degrees. For a circular cross section of diameter d, the polar moment of inertia is...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
please answer 18.11 and 18.12 18.11 A steel ring with an outside diameter of 150 mm and an inside diameter of 100 mm...
please
answer 18.11 and 18.12
18.11 A steel ring with an outside diameter of 150 mm and an inside diameter of 100 mm is shrunk onto another steel ring with an inside diameter of 50 mm. An axial force of 56,54 kN is needed to push the rings apart. Calculate the pressure at the mating surface and the shrinkage allowance given that both rings are 20 mm thick and the coefficient of friction between the mating surfaces is 0,2. Using...
1) A circular brass bar AC of diameter 100 mm is rigidly connected to a circular...
1) A circular brass bar AC of diameter 100 mm is rigidly connected to a circular steel bar CB of the same diameter as shown. The composite bar is rigidly held at its two ends A and B. A torque T is applied to the shaft at point C. Knowing that the allowable shear stresses in the brass and steel are 120 MPa and 250 MPa, respectively, determine the allowable torque Tallow. The shear moduli for brass and steel are...
500 mm 1) A circular brass bar AC of diameter 100 mm is rigidly connected to...
500 mm 1) A circular brass bar AC of diameter 100 mm is rigidly connected to a circular steel bar CB of the same diameter as shown. The composite bar is rigidly held at its two ends A and B. A torque T is applied to the shaft at point C. Knowing that the allowable shear stresses in the brass and steel are 120 MPa and 250 MPa, respectively, determine the allowable torque Tallow. The shear moduli for brass and...
(30%) 2. A hollow circular steel member with outside and inside diameters 150 mm and 120...
(30%) 2. A hollow circular steel member with outside and inside diameters 150 mm and 120 mm and wall thickness 15 mm functions as a pin-ended column 4 m long. Determine the maximum load the column can carry if the load has a known eccentricity of 20 mm, as shown in Fig. 2. Use the allowable stress method and let E = 200 GPa and o, = 250 MPa 20 mm
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
the hollow tube down has an outside diameter of 45 mm and an inside diameter of...
the hollow tube down has an outside diameter of 45 mm
and an inside diameter of 40 mm. the tube is made of an aluminum
alloy with a minimum yield strength of 280 MPa. the bending load is
F =1.5 kN, the axial load is P = 10kN and the twisting moment is T
= 70 N-m. Determine the factor of safety based on the stress at
point A using (a) the maximum shear stress theory and (b) the
distortion...
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as sho...
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as shown below. Both members are made of steel with allowable normal stress = 160 MPa, allowable shear stress 100 MPa, and allowable bearing stress 200 MPa. Determine the minimum required diameter of the solid shaft, and the minimum required outer diameter and thickness of the circular end plate. P 150 kN ds d 30 mm...
Q.3. A hollow steel shaft ACB of outside diameter 50 mm and inside diameter 40 mm is fixed at ends A and B. Horizontal forces P are applied at the ends of a vertical arm that is welded to the shaft at point C. The allowable shear stress in the shaft is tall 45 MPa. Determine the maximum allowable force P 200 mm 200 mm 600 mm 400 mm
Problem 1 (33 pts) The hollow shaft of inside diameter 8 mm, outside diameter 12 mm, L - 1.2 m, and shear modulus G = 80 GPa is subjected to T. Shear stress Txy at point A located at the outside of the shaft was found to be 48.96 MPa. Find the rotation of the shaft at its free end (where T' is applied) in degrees. For a circular cross section of diameter d, the polar moment of inertia is...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
please
answer 18.11 and 18.12
18.11 A steel ring with an outside diameter of 150 mm and an inside diameter of 100 mm is shrunk onto another steel ring with an inside diameter of 50 mm. An axial force of 56,54 kN is needed to push the rings apart. Calculate the pressure at the mating surface and the shrinkage allowance given that both rings are 20 mm thick and the coefficient of friction between the mating surfaces is 0,2. Using...
1) A circular brass bar AC of diameter 100 mm is rigidly connected to a circular steel bar CB of the same diameter as shown. The composite bar is rigidly held at its two ends A and B. A torque T is applied to the shaft at point C. Knowing that the allowable shear stresses in the brass and steel are 120 MPa and 250 MPa, respectively, determine the allowable torque Tallow. The shear moduli for brass and steel are...
500 mm 1) A circular brass bar AC of diameter 100 mm is rigidly connected to a circular steel bar CB of the same diameter as shown. The composite bar is rigidly held at its two ends A and B. A torque T is applied to the shaft at point C. Knowing that the allowable shear stresses in the brass and steel are 120 MPa and 250 MPa, respectively, determine the allowable torque Tallow. The shear moduli for brass and...
(30%) 2. A hollow circular steel member with outside and inside diameters 150 mm and 120 mm and wall thickness 15 mm functions as a pin-ended column 4 m long. Determine the maximum load the column can carry if the load has a known eccentricity of 20 mm, as shown in Fig. 2. Use the allowable stress method and let E = 200 GPa and o, = 250 MPa 20 mm
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
the hollow tube down has an outside diameter of 45 mm
and an inside diameter of 40 mm. the tube is made of an aluminum
alloy with a minimum yield strength of 280 MPa. the bending load is
F =1.5 kN, the axial load is P = 10kN and the twisting moment is T
= 70 N-m. Determine the factor of safety based on the stress at
point A using (a) the maximum shear stress theory and (b) the
distortion...
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as shown below. Both members are made of steel with allowable normal stress = 160 MPa, allowable shear stress 100 MPa, and allowable bearing stress 200 MPa. Determine the minimum required diameter of the solid shaft, and the minimum required outer diameter and thickness of the circular end plate. P 150 kN ds d 30 mm...
