Question

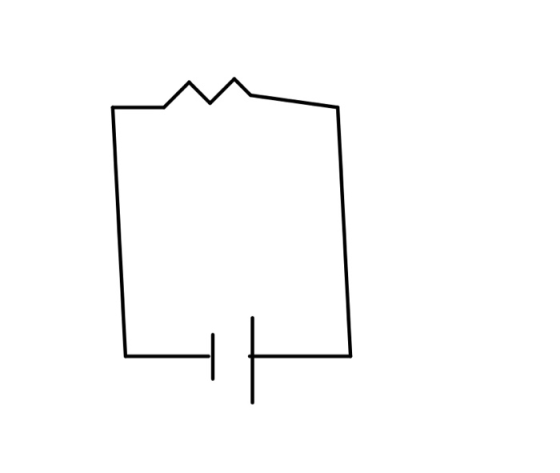

The circuit has a 4V battwry in a series with a 5 Ohm resistor with sides 12 cm while lying in a uniform mag field pointing into page. if your current is .4 A counterclockwise. what is the magnitude of the mag field changing and is increasing or decreasing.




H
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

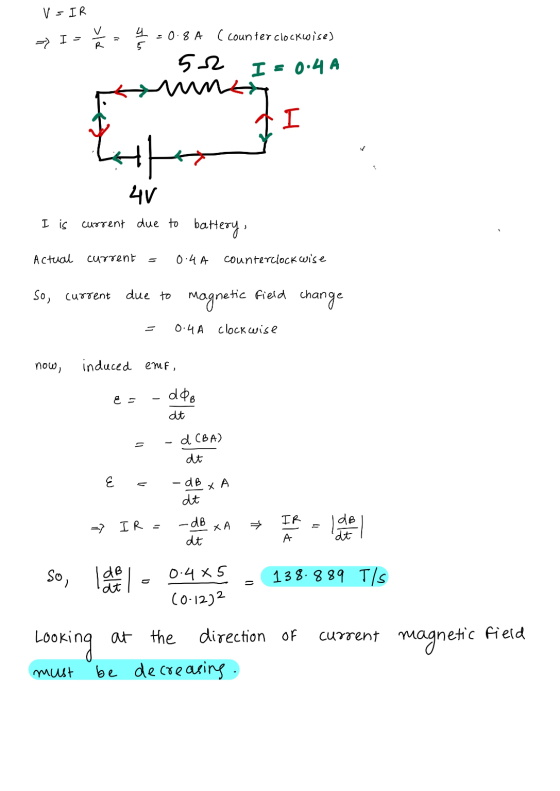

V - IR 4 > I- ok = 0.8 A (counter clockwise) 52 I - 0:4 A una I 바 4V current due to battery, I is Actual current 0.4A counter

0 0
Add a comment
Know the answer?
Add Answer to:
The circuit has a 4V battwry in a series with a 5 Ohm resistor with sides...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 9 ohm resistor and a 16 ohm resistor are connected in series in a circuit...

    A 9 ohm resistor and a 16 ohm resistor are connected in series in a circuit with a 5 volt battery. Assuming negligible internal resistance in the battery, the current from the battery will be? The current in the 16 ohm resistor will be?

  • A series circuit consists of a 12 V battery, 11 Ohm resistor, 27 ohm resistor, and...

    A series circuit consists of a 12 V battery, 11 Ohm resistor, 27 ohm resistor, and 36 Ohm resistor. What is the current flow through the 11 Ohm resistor?

  • Question; A 10 ohm and a 15-ohm resistor are connected in series to a 5 V...

    Question; A 10 ohm and a 15-ohm resistor are connected in series to a 5 V battery. Find the following: d. the voltage across the 10-ohm resistor.   e. A 0.5 m long wire has a current of 3 A and is perpendicular to a 0.02 T magnetic field. Find the magnitude of the force on the wire. SHOW ALL WORK WITH UNITS

  • (5.38) The design of an electronic circuit calls for a 100-ohm resistor and a 250-ohm resistor...

    (5.38) The design of an electronic circuit calls for a 100-ohm resistor and a 250-ohm resistor connected in series so that their resistances add. The components used are not perfectly uniform so that the actual resistances vary independently according to normal distributions. The resistance of 100-ohm resistors has mean 100 ohms and standard deviation 2.5 ohms, while that of 250-ohm resistors has mean 250 ohms and standard deviation of 2.8 ohms. (a) What is the distribution of the total resistance...

  • The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field...

    The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field pointing into the page (-z direction). Choose which changes to the system would cause the top plate of the capacitor to become positively charged. TrueFalse Rotating the circuit clockwise around the z axis. TrueFalse Rotating the magnetic field 90° counterclockwise around the x axis (so that the field ends up pointing towards +y). TrueFalse Increasing the magnetic field strength. TrueFalse Rotating the circuit 90°...

  • A circular loop of wire of resistance 0.4 Ohm and radius 11 cm, sitting n the...

    A circular loop of wire of resistance 0.4 Ohm and radius 11 cm, sitting n the plane of this paper, is in a uniform magnetic field, directed out of the paper. A counterclockwise induced current of 3.5 mA is measured in the loop. Is the magnetic field increasing or decreasing as time elapses? Explain how you know. At what rate is the magnetic field changing with time?

  • If a circuit has a 2 Meg ohm resistor that has a 2 V drop, and...

    If a circuit has a 2 Meg ohm resistor that has a 2 V drop, and it is in series with a 3 Meg ohm resistor, what current flows through the second resistor? 1 µA 1.5 µA 2 µA 4.5 µA

  • The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field...

    The figure shows an initially uncharged capacitor connected to a resistor, in a uniform magnetic field pointing into the page (-z direction). Choose which changes to the system would cause the top plate of the capacitor to become positively charged. 1)True False Rotating the circuit 90° counterclockwise around the y axis. 2) True False  Reversing the direction of the magnetic field. 3) True False  Increasing the magnetic field strength. 4) True False  Rotating the circuit clockwise around the z axis. 5) True False  Decreasing...

  • 5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has...

    5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has a frequency of 500 HZ. What is the impedance of the circuit? A. 90,285 ohms B. 52,285 ohms C. 42,164 ohms D. 31,910 ohms 1. A series RC circuit has a source voltage of 24 VAC and an impedance of 252 ohms. What is the circuit current? A. 95 A B. 0.095 A C. 9.5 A D. 0.95 A 2. A 0.015 micro arad...

  • What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give...

    What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give a resonance frequency of 800 Hz? A series RLC circuit consists of a 99.0 Ohm resistor, a 0.130 H inductor, and a 20.0 muF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I? The tuning circuit in an FM radio receiver is a series RLC circuit with a 0.2000 muH inductor. The receiver is tuned to...
