Length AB = 8m
w = 70kN/m
a = 2.5m
E = 2.5 x 10^9 N/m^2

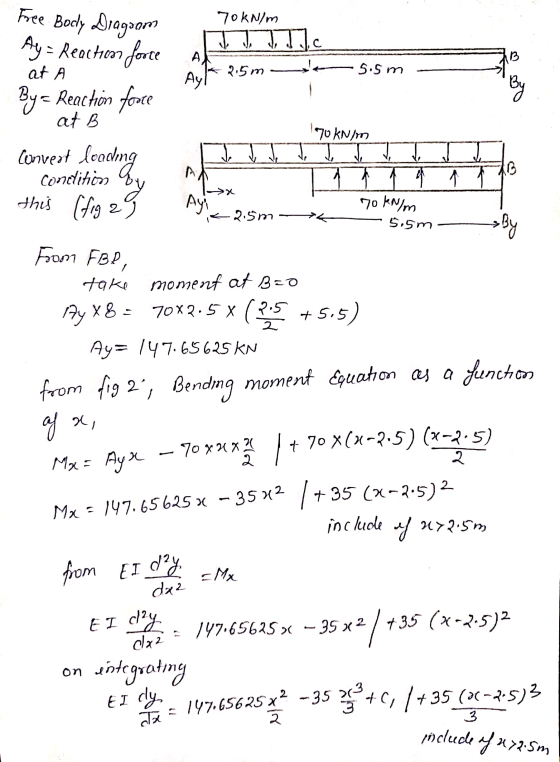

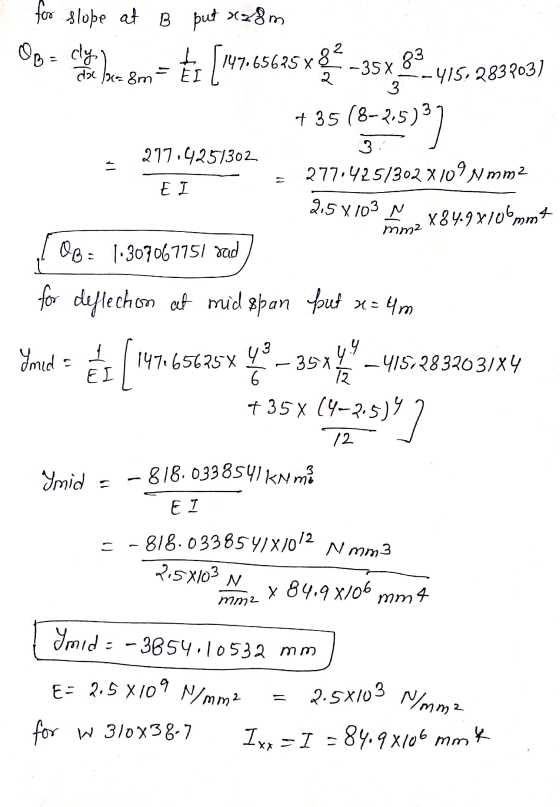

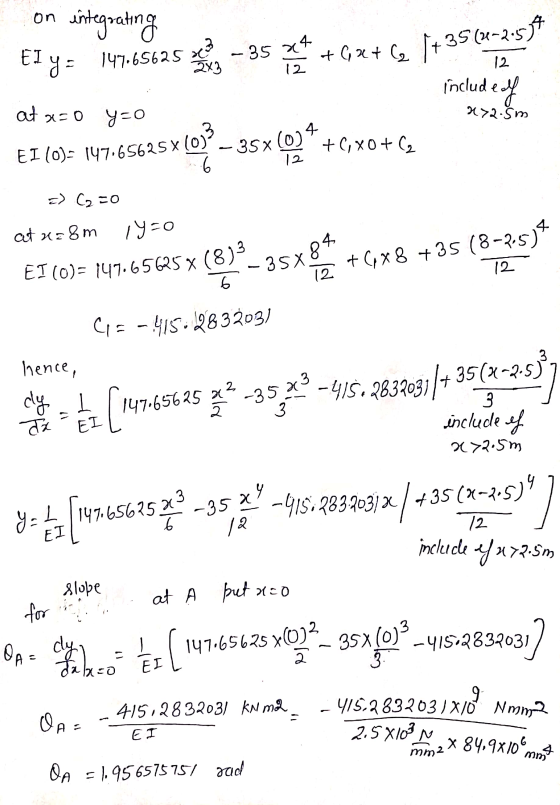

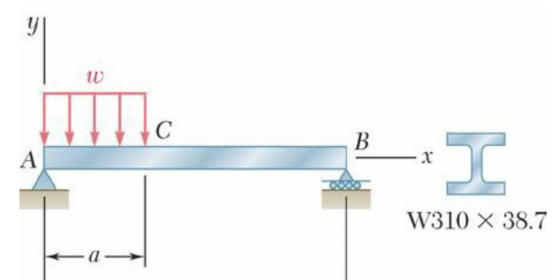

Determine the slopes at A & B, and vertical deflection at mid-span of the loaded W310 x38.7 beam shown using the double integration method.
