The figure below displays a circular loop of conducting wire in a uniform magnetic field pointing into the page

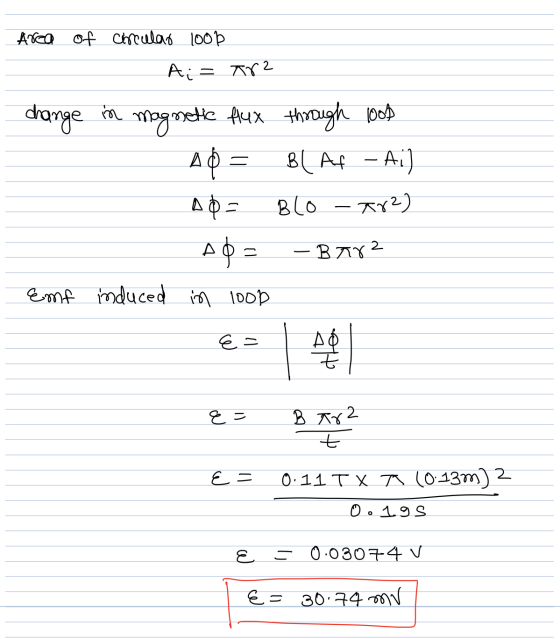

The figure below displays a circular loop of conducting wire in a uniform magnetic field pointing into the page. The radius of the loop is 13.0 cm and the magnitude of the field is 0.110 T. You grab points A and B and pull them in opposite directions, stretching the loop until its area is nearly zero, taking a time of 0.190 s to do so. What is the magnitude of the average induced emf in the loop (in mv) during this time?
Homework Answers
Add Answer to:
The figure below displays a circular loop of conducting wire in a uniform magnetic field pointing into the page
The figure below displays a circular loop of metal wire in a uniform magnetic field pointing...
The figure below displays a circular loop of metal wire in a uniform magnetic field pointing into the page. The radius of the loop is 13.0 cm and the magnitude of the field is 0.140 T. You grab points A and B and pull them in opposite directions, stretching the loop until its area is nearly zero, taking a time of 0.230 s to do so. What is the magnitude of the average Induced emf in the loop (in mV)...
The figure below displays a circular loop of metal wire in a uniform magnetic foeld pointing...
The
figure below displays a circular loop of metal wire in a uniform
magnetic foeld pointing into the page. The radius of the loop is
15.0 cm and the magnitude of the field is 0.160 T. You grab points
A and B and pull them in opposite directions, stretching the liop
until its area is nearly zero, taking a time of 0.210 s to do so.
What id the magnitude of the average of the average induced emf in
the...
A circular conducting loop with radius 3.50 cm is placed in a uniform magnetic field of...
A circular conducting loop with radius 3.50 cm is placed in a uniform magnetic field of 0.650 T with the plane of the coil perpendicular to the magnetic field as shown. в Axis The magnetic field decreases to 0.440 T in a time interval of 32.0 ms. What is the average induced emf in the loop during this interval? mV
Will rate for answer with work! The figure below shows a flexible loop of metal wire...
Will rate for answer with work!
The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.200 T. A lab TA grabs the loop at points A and B and rapidly pulls in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.180 s. X X А...
will rate, thanks! The figure below shows a flexible loop of metal wire with a radius...
will rate, thanks!
The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.160 T. A student grabs the loop at points A and B and rapidly pulls in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.250 S. А x x X x x X...
os A circular loop of wire of radius 1.55cm is in a uniform magnetic field, with...
os A circular loop of wire of radius 1.55cm is in a uniform magnetic field, with the plane of the loop perpendicular to the direction of the field. The magnetic field varies with time according to B(t) = 0.064 + 1.2t, where t is in seconds, and B is in T. Calculate the magnetic flux through the loop at t0 s. B Submit Answer Tries 0/10 Calculate the magnitude of the emf induced in the loop. Submit Answer Tries 0/10...
A circular loop of flexible conducting wire has an initial circumference of 150cm. This loop is...
A circular loop of flexible conducting wire has an initial
circumference of 150cm. This loop is in a uniform 1.5 T magnetic
field, which remains parallel to the loop's area vector. The loop
begins to shrink, decreasing the circumference at a rate of 5
cm/s.
A) Calculate the EMF around the loop 4 seconds after it begins
to shrink
B) Is the EMF increasing or decreasing with time?
C) Calculate the change in magnetic field required to keep the
EMF...
3. DETAILS MY NOTES ASK YOUR TEACHER The figure below shows a flexible loop of metal...
3. DETAILS MY NOTES ASK YOUR TEACHER The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.110 T. An instructor grabs the loop at points A and B and rapidly pulis in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.170 s. 4 x x...
A circular conducting loop with radius 2.70 cm is placed in a uniform magnetic field of...
A circular conducting loop with radius 2.70 cm is placed in a uniform magnetic field of 0.850 T with the plane of the coil perpendicular to the magnetic field as shown. ! The magnetic field decreases to 0.300 T in a time interval of 25.0 ms. What is the average induced emf in the loop during this interval?
A 7.15 cm-diameter circular loop of wire is in a 1.11 T magnetic field. The loop...
A 7.15 cm-diameter circular loop of wire is in a 1.11 T magnetic field. The loop is removed from the field in 0.190 s. What is the average induced emf? (in V) A: 1.71
The figure below displays a circular loop of metal wire in a uniform magnetic field pointing into the page. The radius of the loop is 13.0 cm and the magnitude of the field is 0.140 T. You grab points A and B and pull them in opposite directions, stretching the loop until its area is nearly zero, taking a time of 0.230 s to do so. What is the magnitude of the average Induced emf in the loop (in mV)...
The
figure below displays a circular loop of metal wire in a uniform
magnetic foeld pointing into the page. The radius of the loop is
15.0 cm and the magnitude of the field is 0.160 T. You grab points
A and B and pull them in opposite directions, stretching the liop
until its area is nearly zero, taking a time of 0.210 s to do so.
What id the magnitude of the average of the average induced emf in
the...
A circular conducting loop with radius 3.50 cm is placed in a uniform magnetic field of 0.650 T with the plane of the coil perpendicular to the magnetic field as shown. в Axis The magnetic field decreases to 0.440 T in a time interval of 32.0 ms. What is the average induced emf in the loop during this interval? mV
Will rate for answer with work!
The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.200 T. A lab TA grabs the loop at points A and B and rapidly pulls in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.180 s. X X А...
will rate, thanks!
The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.160 T. A student grabs the loop at points A and B and rapidly pulls in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.250 S. А x x X x x X...
os A circular loop of wire of radius 1.55cm is in a uniform magnetic field, with the plane of the loop perpendicular to the direction of the field. The magnetic field varies with time according to B(t) = 0.064 + 1.2t, where t is in seconds, and B is in T. Calculate the magnetic flux through the loop at t0 s. B Submit Answer Tries 0/10 Calculate the magnitude of the emf induced in the loop. Submit Answer Tries 0/10...
A circular loop of flexible conducting wire has an initial
circumference of 150cm. This loop is in a uniform 1.5 T magnetic
field, which remains parallel to the loop's area vector. The loop
begins to shrink, decreasing the circumference at a rate of 5
cm/s.
A) Calculate the EMF around the loop 4 seconds after it begins
to shrink
B) Is the EMF increasing or decreasing with time?
C) Calculate the change in magnetic field required to keep the
EMF...
3. DETAILS MY NOTES ASK YOUR TEACHER The figure below shows a flexible loop of metal wire with a radius of 13.0 cm. It lies in a magnetic field pointing into the page with a magnitude of 0.110 T. An instructor grabs the loop at points A and B and rapidly pulis in opposite directions until the loop folds up, such that its area becomes zero. The change in area occurs in a span of 0.170 s. 4 x x...
A circular conducting loop with radius 2.70 cm is placed in a uniform magnetic field of 0.850 T with the plane of the coil perpendicular to the magnetic field as shown. ! The magnetic field decreases to 0.300 T in a time interval of 25.0 ms. What is the average induced emf in the loop during this interval?
