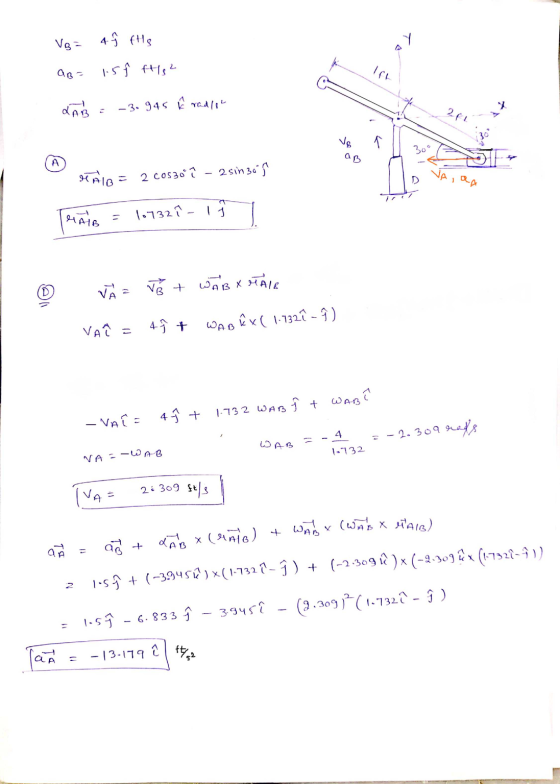

At the instant shown, point B has a velocity and acceleration, ūB = 4ſ ft's and...
At the instant shown collar B moves with a velocity of vB=4 [m/s] and acceleration aB=2.4...
At the instant shown collar B moves with a velocity of vB=4
[m/s] and acceleration aB=2.4 [m/s2 ] to the right. Angle =50o ,
and length of the rod is L=650 [mm]. At the instant when =30o ,
determine (a) magnitude of angular acceleration of rod AB, AB
[rad/s2 ], and (b) magnitude of acceleration of collar A, aA [m/s2
].
What is magnitude of angular acceleration of rod AB, AB [rad/s2
]?
What is magnitude of acceleration of collar...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.

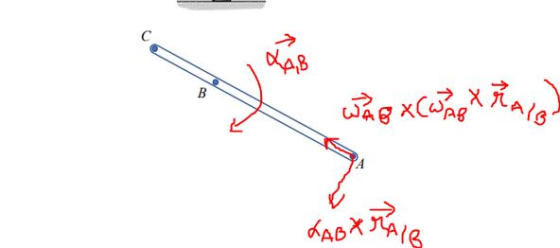

If bar AB has angular velocity and acceleration
If bar \(A B\) has angular velocity and acceleration, \(\vec{\omega}_{A B}=-4 \vec{k} \mathrm{rad} / \mathrm{s}\) and \(\vec{\alpha}_{A B}=\) \(-1 \vec{k} \mathrm{rad} / \mathrm{s}^{2}\), respectively. The angular velocity and acceleration of the member \(B C\) are also found to be \(\vec{\omega}_{B C}=-3 \vec{k} \mathrm{rad} / \mathrm{s}\) and \(\vec{\alpha}_{B C}=-37.122 \vec{k} \mathrm{rad} / \mathrm{s}^{2}\). Answer the following questions:\(\mathrm{A}[20 \%] \tilde{r}_{C / B}=\) \(\tilde{i}+\) \(\tilde{j}\)B [20\%] Draw the vector \(\vec{\alpha}_{B C} \times \vec{r}_{C / B}\) in the bar figure below.C \([20 \%]\) Draw...
3. At the instant shown the bar AB is rotating CW with a constant angular velocity...
3. At the instant shown the bar AB is rotating CW with a constant angular velocity WAB = 6 rad/s and the angle 0 = 30° 0.15 m B 0.5 m Α (Ό, a. Determine the angular velocity vector of bar BD 34.04° D b. Determine the angular acceleration vector of bar BD and the acceleration vector of point D
At a given instant the top end A of the bar has the velocity and acceleration shown in the figure
At a given instant the top end A of the bar has the velocity and acceleration shown in the figure. At the instant shown, determine: The velocity of point B. vB_______ cm/s (A. -5.00 B. 7.00 C. 8.66 D. 5.00 E. None) The angular velocity of the bar, OAB_______ rad/s (A.-1.0 B. 1.0 C.5.0 D.3.2 E. None) The acceleration of point B. aB_______ cm/s2 (A. -7.88 B. 7.88 C.-8.66 D8.66 E. None) The angular acceleration of the bar, αAB=_______ rad/s2 (A. 0.33 B. 3.30...
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and...
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5 m/s, while the gear rack C has a velocity of 1.4 m/s and acceleration of 0.70 m/s2 . (Figure 1) Part A . Determine the angular acceleration of the gear at this instant Express your answer to three significant figures and inclu Figure < 1 of 1 T: MÅ * 0 a ? rad 3.2 0.3 m 0.2 m Submit Previous Answers Request Answer...
0.2 m Gear A shown in the figure is held fixed, and the arm DE rotates...
0.2 m Gear A shown in the figure is held fixed, and the arm DE rotates with an angular velocity and acceleration of ūde -6k rad/s and ūde -3k rad/s², respectively. Answer the following questions: = = 0.3 m B j 304 A [20%] feld i + B [20%] Draw the vector ādexřejd in the bar figure below. C [20%] Draw the vector ūdex(WDexie/D) in the bar figure below. D [40%] Use relative motion analysis to find āg: E
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar B...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
At the instant shown collar B moves with a velocity of vB=4
[m/s] and acceleration aB=2.4 [m/s2 ] to the right. Angle =50o ,
and length of the rod is L=650 [mm]. At the instant when =30o ,
determine (a) magnitude of angular acceleration of rod AB, AB
[rad/s2 ], and (b) magnitude of acceleration of collar A, aA [m/s2
].
What is magnitude of angular acceleration of rod AB, AB [rad/s2
]?
What is magnitude of acceleration of collar...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
3. At the instant shown the bar AB is rotating CW with a constant angular velocity WAB = 6 rad/s and the angle 0 = 30° 0.15 m B 0.5 m Α (Ό, a. Determine the angular velocity vector of bar BD 34.04° D b. Determine the angular acceleration vector of bar BD and the acceleration vector of point D
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5 m/s, while the gear rack C has a velocity of 1.4 m/s and acceleration of 0.70 m/s2 . (Figure 1) Part A . Determine the angular acceleration of the gear at this instant Express your answer to three significant figures and inclu Figure < 1 of 1 T: MÅ * 0 a ? rad 3.2 0.3 m 0.2 m Submit Previous Answers Request Answer...
0.2 m Gear A shown in the figure is held fixed, and the arm DE rotates with an angular velocity and acceleration of ūde -6k rad/s and ūde -3k rad/s², respectively. Answer the following questions: = = 0.3 m B j 304 A [20%] feld i + B [20%] Draw the vector ādexřejd in the bar figure below. C [20%] Draw the vector ūdex(WDexie/D) in the bar figure below. D [40%] Use relative motion analysis to find āg: E
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
