A spherical reactor generates heat according to ?̇ = ?̇0[1 − ( ?/?0 )^1/3 ], per...

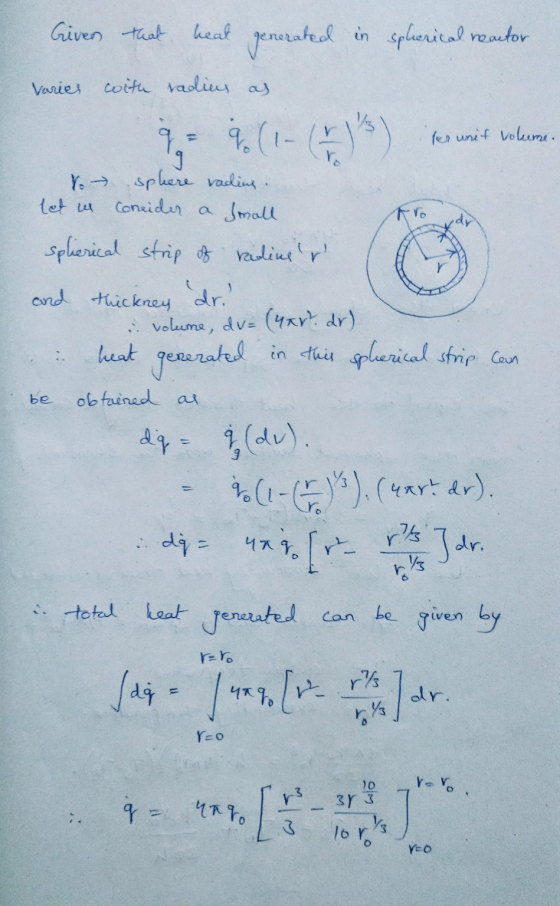

A spherical reactor generates heat according to ?̇ = ?̇0[1 − ( ?/?0 )^1/3 ], per unit of volume.
Find:

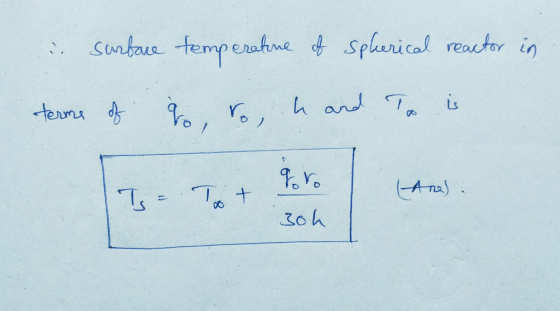

- The surface temperature in terms of ?̇0
- The sphere radius r0
- The surrounding convection coefficient h
- The surrounding temperature T∞.
Homework Answers

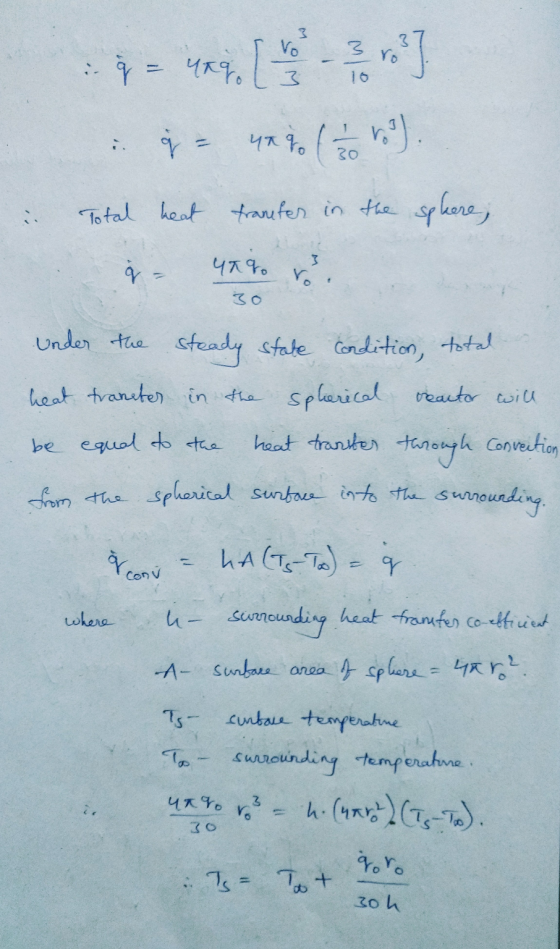

![3 Vo Yago 3 Ero] 9 - 40 g (b). Total heat transfer in the sphere, 9 40% r. 30 & conu under the steady state condition, total](http://img.homeworklib.com/questions/4eea8c00-f9e7-11ea-a564-3ff55bf0d104.png?x-oss-process=image/resize,w_560)
