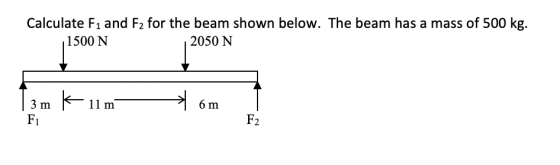

Calculate Fi and F2 for the beam shown below. The beam has a mass of 500 kg. 1500 N 2050 N 3 m K 11 m * 6 m Fi F2

science physics

Answer 1

Answer #1

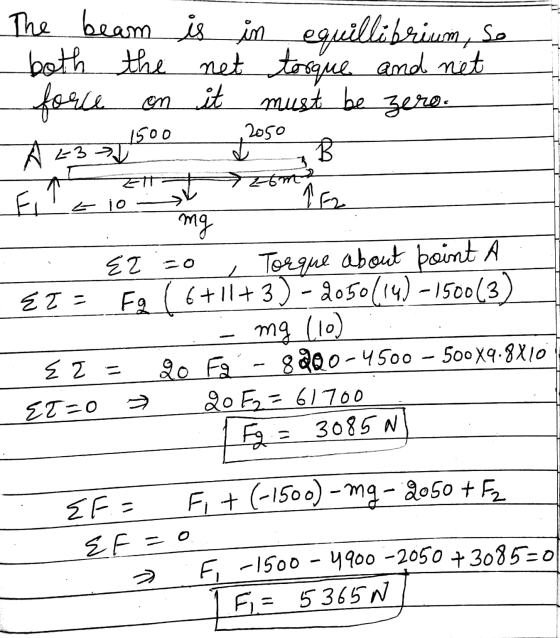

1500 2050 The beam is in equillibrium, se both the net torque and net force on on it must be zero. A 23 B Fi 152 mg EZ EZ Fa
