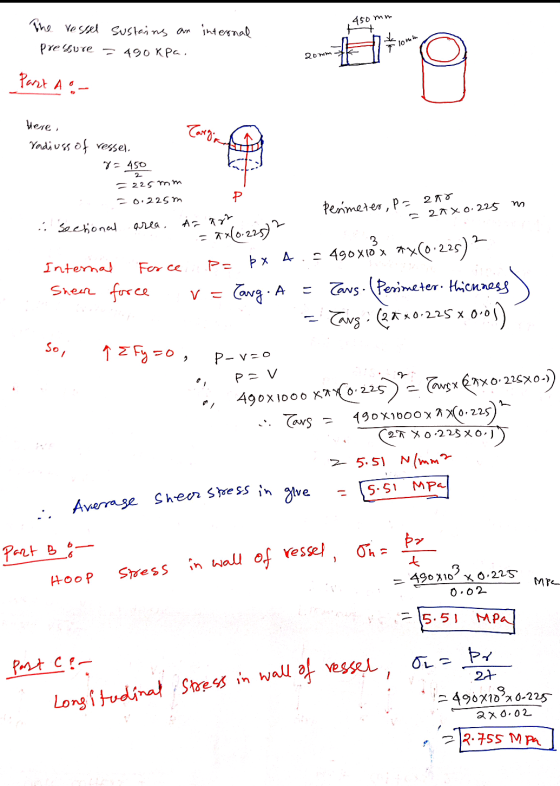

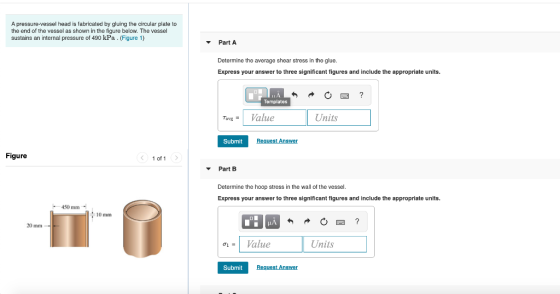

A pressure-vessel head is fabricated by gluing the circular plate to the end of the vessel...
The cylindrical pressure vessel has an inner radius of 1.25 m and a wall thickness of...
The cylindrical pressure vessel has an inner radius of 1.25 m
and a wall thickness of 25 mm . It is made from steel plates that
are welded along the 45∘ seam. The vessel is subjected to an
internal pressure of 7 MPa . (Figure 1)
Part A
Determine the normal stress component along this seam.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine the shear stress component along this seam.
Express your...
Part A The tank of the air compressor subjected to an internal pressure of 96 psi...
Part A The tank of the air compressor subjected to an internal pressure of 96 psi . The internal diameter of the tank is 22 in., and the wall thickness is 0.25 in. (Figure 1) Determine the hoop stress acting at point A. Express your answer to three significant figures and include the appropriate units. Li HA ? 0,= Value Units Submit Request Answer Figure Part B 1 of 1 Determine the longitudinal stress acting at point A. Express your...
Part A Review Given that P 4.8 kN,V = 3.4 kN (Figure 1) Determine the normal...
Part A Review Given that P 4.8 kN,V = 3.4 kN (Figure 1) Determine the normal stress at point A on the cross section of the post at section a Express your answer using three significant figures and include the appropriate units. Enter negative value the case of compression and positive in the case of tension Value Units OA Figure 1 of 1 Request Answer Submit 100 mm 100 mm Part B Determine the shear stress component (Ty)] at point...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure 1). The shaft has a diameter of 0.5 in, and is fixed to the wall at C. Part A Determine the normal stress acting at point A. Express your answer to three significant figures and include appropriate units. ЦА ? (CA), - Value Units Submit Request Answer Part B Determine the shear stress acting along the yr plane at point A. Express your answer...
Part A A Review The column is built up by gluing the two identical boards together....
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
Determine the state of stress at point A on the cross section of the pipe assembly...
Determine the state of stress at point A on the cross section of the pipe assembly at section a-a. Take Fi = 1480 N. F2 = 1090 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in the case of tension. НА ? Figure < 1 of 1 Value Units Submit Request Answer 400 mm Part B 200 mm Fi Find (Tay) Express your...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
All pins are in double shear, and each has a diameter of 21 mm P 7...
All pins are in double shear, and each has a diameter of 21 mm P 7 kN. (Figure 1) Part A Determine the average shear stress in the pin at A Express your answer to three significant figures and include appropriate units TA-1 Value Units Submit Request Answer Part B Determine the average shear stress in the pin at B Express your answer to three significant figures and include appropriate units TB-1 Value Units Figure 1 of 1 Submit Request...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
The wide-flange beam is subjected to the loading shown in (Figure 1). Suppose that P =...
The wide-flange beam is subjected to the loading shown in (Figure 1). Suppose that P = 25 kN. Follow the sign convention. Part A Although it is not very accurate, use the shear formula to determine the shear stress developed at point A. Express your answer to three significant figures and include the appropriate units. CE MÅ Value O O ? Units Submit Request Answer - Part B Figure < 1 of 1 > Determine the principal stress 01 at...
The cylindrical pressure vessel has an inner radius of 1.25 m
and a wall thickness of 25 mm . It is made from steel plates that
are welded along the 45∘ seam. The vessel is subjected to an
internal pressure of 7 MPa . (Figure 1)
Part A
Determine the normal stress component along this seam.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine the shear stress component along this seam.
Express your...
Part A The tank of the air compressor subjected to an internal pressure of 96 psi . The internal diameter of the tank is 22 in., and the wall thickness is 0.25 in. (Figure 1) Determine the hoop stress acting at point A. Express your answer to three significant figures and include the appropriate units. Li HA ? 0,= Value Units Submit Request Answer Figure Part B 1 of 1 Determine the longitudinal stress acting at point A. Express your...
Part A Review Given that P 4.8 kN,V = 3.4 kN (Figure 1) Determine the normal stress at point A on the cross section of the post at section a Express your answer using three significant figures and include the appropriate units. Enter negative value the case of compression and positive in the case of tension Value Units OA Figure 1 of 1 Request Answer Submit 100 mm 100 mm Part B Determine the shear stress component (Ty)] at point...
Problem 8.42 The beveled gear is subjected to the loads shown in the figure below (Figure 1). The shaft has a diameter of 0.5 in, and is fixed to the wall at C. Part A Determine the normal stress acting at point A. Express your answer to three significant figures and include appropriate units. ЦА ? (CA), - Value Units Submit Request Answer Part B Determine the shear stress acting along the yr plane at point A. Express your answer...
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
Determine the state of stress at point A on the cross section of the pipe assembly at section a-a. Take Fi = 1480 N. F2 = 1090 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in the case of tension. НА ? Figure < 1 of 1 Value Units Submit Request Answer 400 mm Part B 200 mm Fi Find (Tay) Express your...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
All pins are in double shear, and each has a diameter of 21 mm P 7 kN. (Figure 1) Part A Determine the average shear stress in the pin at A Express your answer to three significant figures and include appropriate units TA-1 Value Units Submit Request Answer Part B Determine the average shear stress in the pin at B Express your answer to three significant figures and include appropriate units TB-1 Value Units Figure 1 of 1 Submit Request...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
The wide-flange beam is subjected to the loading shown in (Figure 1). Suppose that P = 25 kN. Follow the sign convention. Part A Although it is not very accurate, use the shear formula to determine the shear stress developed at point A. Express your answer to three significant figures and include the appropriate units. CE MÅ Value O O ? Units Submit Request Answer - Part B Figure < 1 of 1 > Determine the principal stress 01 at...
