Homework Answers
Question 34 (8 points) Use the circuit diagram below to answer the questions that follow. l;...

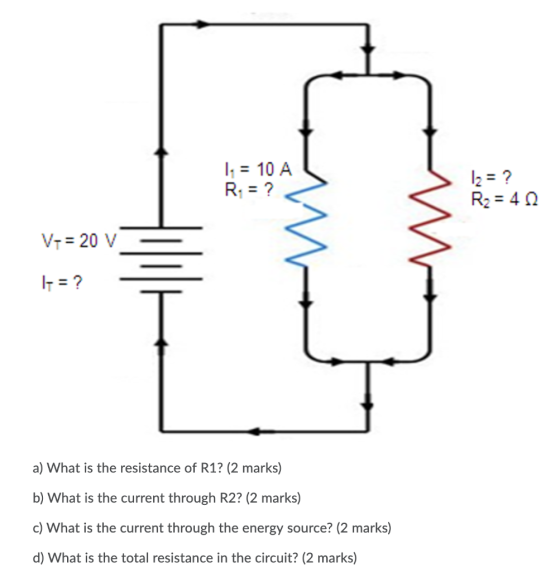

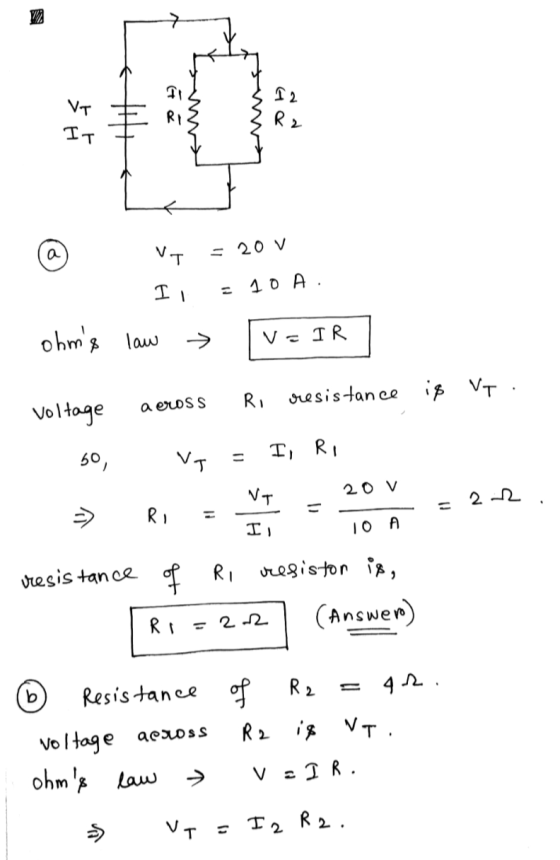

Question 34 (8 points) Use the circuit diagram below to answer the questions that follow. l; = 10 A R. = ? 12 = 2 R = 40 V-= 20 V EPIC a) What is the resistance of R1? (2 marks) Wb) What is the current through R2? (2 marks) c) What is the current through the energy source? (2 marks) d) What is the total resistance in the circuit? (2 marks)

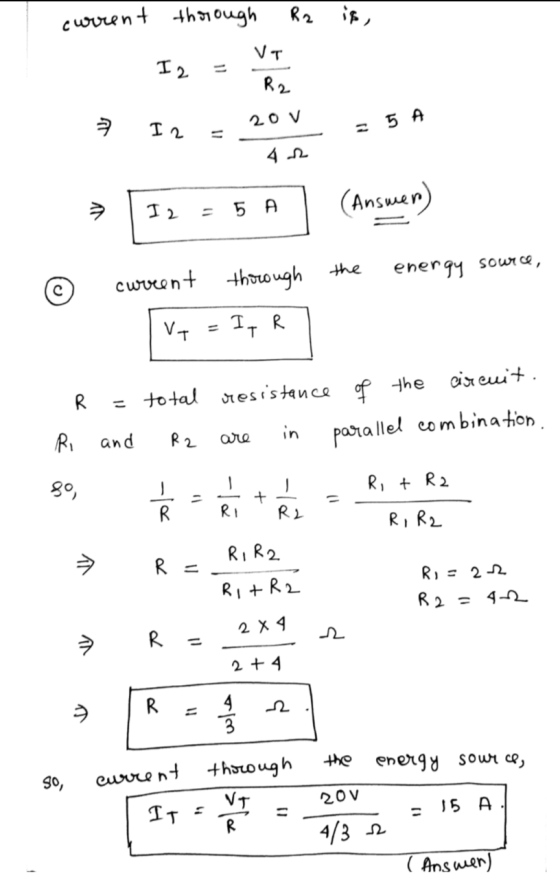

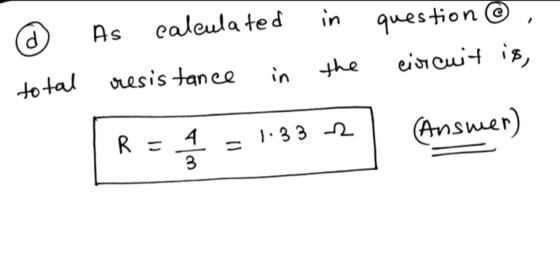

Question [5x2 marks 10 marks] In the circuit in Figure 4, the resistance value R1, R2,...
Question [5x2 marks 10 marks] In the circuit in Figure 4, the resistance value R1, R2, R3 and R4 have a value of 30, 40, 40 and 50 (a) Find the equivalent resistance (Req) in the circuit (b) Determine the current through each resistance 1 to 14. (c) Determine the power dissipated by each resistor and the power delivered by the independence voltage source. Confirm that the power delivered by the independent source is the same as the power absorbed...
In the circuit shown in figure 2.0 below, R1 = 30, R2 = 40 and R3...
In the circuit shown in figure 2.0 below, R1 = 30, R2 = 40 and R3 = 20. The battery voltage is 3v. V bat R. R, R3 Figure 2.0 a. Find the equivalent resistance of the circuit. b. What is the current produced by the battery? C. What is the current through each resistor?
A R1 B 2kn 10 V 2kn R2 2k R3 Figure 2 in Fiqure 2 above,...
A R1 B 2kn 10 V 2kn R2 2k R3 Figure 2 in Fiqure 2 above, calculate the following, Show work 34. Total Current 35. VAB Je 2A 36. VBc= R1 75 VIN 10 V R, R2 Vy 470 VoUT Figure 4 Figure 3 37. Figure 3 is an example of a C. voltage multiplier D. voltage divider A. semiconductor B. current source 38-39. Reference Figure 4. Calculate the voltage drops across R1 and R2. Show work. 40. When current...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and power loss in each resistor in the circuit. (Use voltage division and P = (voltage*voltage) resistance)- You cannot use KVL, KCL or Ohms law) Ri R2 P2: For circuit below i = 50 A and R1 = 15 Ohm and R2 = 10 Ohm. Calculate current and power loss in each resistor in the circuit. (Use current division and P - (current*current) resistance) You...
lculate the total resistance of the following circuit where R,-20?, R,-30S2, and R 602 R2 R,...
lculate the total resistance of the following circuit where R,-20?, R,-30S2, and R 602 R2 R, Calculate the total resistance of the following circuit where R1-20 ?. R-30 ?, and Rs 602. 5, R3 6. What is the voltage across each resistor Ri 20 2 and R: 40 92 of the circuit below. The batt voltage is 6.0v R2
2. In the circuit below, E = 9.0 V, R1 = 1.22, R2 = 1.0 2,...
2. In the circuit below, E = 9.0 V, R1 = 1.22, R2 = 1.0 2, and R3 = 4.0 2. R1 E R2 wo (a) (3 pts) What is the equivalent resistance of this circuit? (b) (3 pts) What is the current flowing through the resistor R? I (c) (4 pts) What is the current flowing through the resistor R ?
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2...
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2 = 56 k 2, Rinbase) = 2.1 k 2. The source voltage V, = 35 mV and the source resistance R = 450 22. Determine: Base R, w Base W- Rinas) Riiton = (a) (b) a) (3 marks) the total input resistance Rin(tot) = b) (2 marks) the voltage at the base (V=Vin) V = 9 12. (5 marks total) For the common-emitter amplifier...
1. (20 pts.). In the circuit shown in the diagram R 10 m,Ra 0.02 , R...
1. (20 pts.). In the circuit shown in the diagram R 10 m,Ra 0.02 , R 01 , Rs -30 mt Rs 40 min. Rs 50 min. R7 60 min, and ε 100 V. A) (10 pts.) find the equivalent resistance for this circuit; B) (5 pts.) find the voltage and the current for the resistor R C) (5 pts.) find the electric power in the resistor Rr. 2. (20 pts.). In the cir rcuit shown in the diagram, find...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
Question 34 (8 points) Use the circuit diagram below to answer the questions that follow. l; = 10 A R. = ? 12 = 2 R = 40 V-= 20 V EPIC a) What is the resistance of R1? (2 marks) Wb) What is the current through R2? (2 marks) c) What is the current through the energy source? (2 marks) d) What is the total resistance in the circuit? (2 marks)
Question [5x2 marks 10 marks] In the circuit in Figure 4, the resistance value R1, R2, R3 and R4 have a value of 30, 40, 40 and 50 (a) Find the equivalent resistance (Req) in the circuit (b) Determine the current through each resistance 1 to 14. (c) Determine the power dissipated by each resistor and the power delivered by the independence voltage source. Confirm that the power delivered by the independent source is the same as the power absorbed...
In the circuit shown in figure 2.0 below, R1 = 30, R2 = 40 and R3 = 20. The battery voltage is 3v. V bat R. R, R3 Figure 2.0 a. Find the equivalent resistance of the circuit. b. What is the current produced by the battery? C. What is the current through each resistor?
A R1 B 2kn 10 V 2kn R2 2k R3 Figure 2 in Fiqure 2 above, calculate the following, Show work 34. Total Current 35. VAB Je 2A 36. VBc= R1 75 VIN 10 V R, R2 Vy 470 VoUT Figure 4 Figure 3 37. Figure 3 is an example of a C. voltage multiplier D. voltage divider A. semiconductor B. current source 38-39. Reference Figure 4. Calculate the voltage drops across R1 and R2. Show work. 40. When current...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and power loss in each resistor in the circuit. (Use voltage division and P = (voltage*voltage) resistance)- You cannot use KVL, KCL or Ohms law) Ri R2 P2: For circuit below i = 50 A and R1 = 15 Ohm and R2 = 10 Ohm. Calculate current and power loss in each resistor in the circuit. (Use current division and P - (current*current) resistance) You...
lculate the total resistance of the following circuit where R,-20?, R,-30S2, and R 602 R2 R, Calculate the total resistance of the following circuit where R1-20 ?. R-30 ?, and Rs 602. 5, R3 6. What is the voltage across each resistor Ri 20 2 and R: 40 92 of the circuit below. The batt voltage is 6.0v R2
2. In the circuit below, E = 9.0 V, R1 = 1.22, R2 = 1.0 2, and R3 = 4.0 2. R1 E R2 wo (a) (3 pts) What is the equivalent resistance of this circuit? (b) (3 pts) What is the current flowing through the resistor R? I (c) (4 pts) What is the current flowing through the resistor R ?
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2 = 56 k 2, Rinbase) = 2.1 k 2. The source voltage V, = 35 mV and the source resistance R = 450 22. Determine: Base R, w Base W- Rinas) Riiton = (a) (b) a) (3 marks) the total input resistance Rin(tot) = b) (2 marks) the voltage at the base (V=Vin) V = 9 12. (5 marks total) For the common-emitter amplifier...
1. (20 pts.). In the circuit shown in the diagram R 10 m,Ra 0.02 , R 01 , Rs -30 mt Rs 40 min. Rs 50 min. R7 60 min, and ε 100 V. A) (10 pts.) find the equivalent resistance for this circuit; B) (5 pts.) find the voltage and the current for the resistor R C) (5 pts.) find the electric power in the resistor Rr. 2. (20 pts.). In the cir rcuit shown in the diagram, find...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
