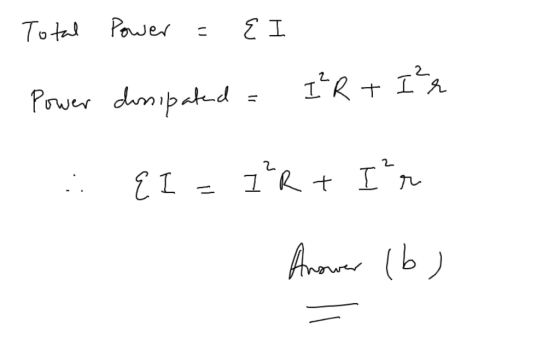

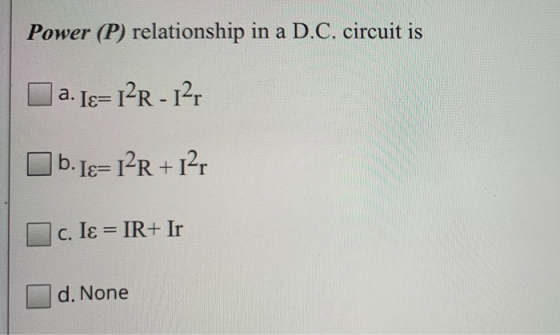

Power (P) relationship in a D.C. circuit is a. Iɛ= 12R - 12r b. Iɛ= 12R...
1. to design a high efficiency d.c. to d.c. power converter with the given specifications Input voltage Output voltage Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV min 10V max 15V nominal (regulated) 8V Define a suitable power circuit topology to meet the above specification Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the...
What is the relationship between energy, working power, current, and voltage in a three-phase AC circuit? a. P = 1.73 x E x I x PF b. P = 1.73 x E x I x cos θ c. P = 1.73 x Pa x cos θ d. All of the above e. None of the above
11. 1 Killo-Watt-Hr (KWH) equals to (a) 3.6 x10 Joule (b) 3.6x10 Joule (c) 1.6x10 Joule (d) None 12. Power (P) relationship in a D.C. circuit is (a) le=I'R - I'r (b) Is=IR + Ir (c) Is = IR+ Ir (d) None of the above 13. Kirchhoff's loop rule for a closed circuit explains (a) Sum of current (1) = 0 (b) Sum of potential difference (AV)=0 (c) Both (d) None 14. RC time constant (c) measured during charging up...
A 3 volt d.c. power source required for a circuit is obtained by connecting together two 1.5V batteries in series. If the error in the voltage output of each battery is specified as ±1%, calculate the likely maximum possible error in the 3 volt power source that they make up.
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV Define a suitable power circuit topology to meet the above specification? Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the output...
9. The power in an electrical circuit is given by the formula P = 127, where P is the power in watts, I is the current in omperes, and is the resistance in ohms. Determine when P = 1000 W and I = 12 A. Explain your method. [5 marks] 10. a) Solve 2 = 16. Explain your strategy. [5 marks] b) Can you use the same strategy to solve 2" - 258 Explain.
The circuit below is used for digital to analogue conversion. PRO 12R 19 0 19 o 1000 Output Figure Q4 a) Find the voltage output equation b) Given that Vref= 10V, find the voltage for digital signals 010 and 110. c) Find the full scale output d) An even parity method is used to ensure the correctness of the digital signals during transmission. Write the digital signals that need to be sent e) Modify the connection to the operational amplifier...
Question 1 220 Vrms 50 Hz 10:1 CR Figure 1 Figure 1 shows the circuit diagram for a simple d.c. power supply. a. Identify the type of rectifier circuit represented in figure I and explain the operation of the circuit with reference to the function of each component within the circuit. b. Sketch to scale the voltage across R as a function of time showing its relationship to the secondary voltage from the transformer. Question 2 A 5.0V stabilized power...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
The five resistors are identical. The battery delivers 58 W of power to the circuit. What is the resistance R of each resistor? R1 R R3 45 V R R2 12R [2R R • Rg R4
