Two current carrying wires are separated by 5.00 cm. They carry the same 4.00 A current...

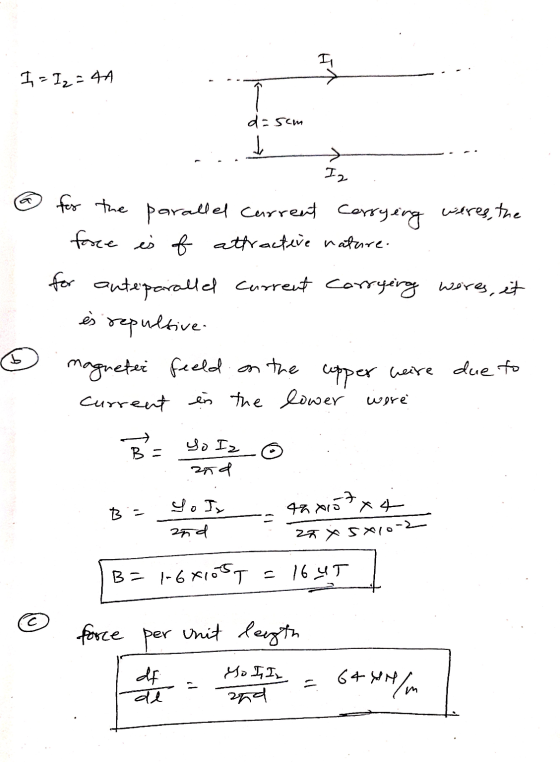

Two current carrying wires are separated by 5.00 cm. They carry the same 4.00 A current and point to the same direction.
a. What kind of force is between them, repulsive or attractive?
b. What is the magnitude of magnetic field established on one wire from the other current carrying wire?
c. What is the magnitude of force per length on each wire?

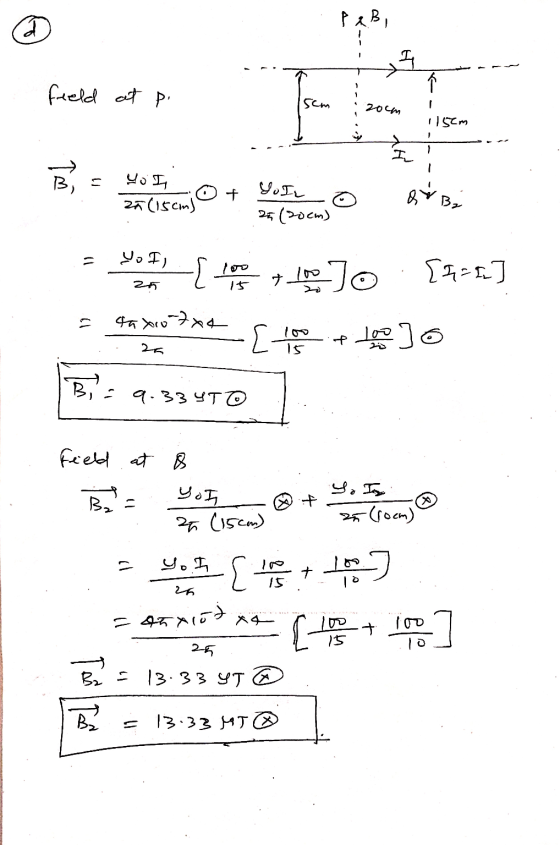

d. What is the magnitude of the magnetic field at a point located 20.0 cm above the bottom wire and 15.0 cm above the top wire?
Homework Answers
![FB 수 <- feeld at Pi scm m 11m 0 十 ZÃ (15cm) Yol 25 (DoCo) B. Yo II [综 门。 Ch=x] 25 5 toysd_ - / fg] 1 ): 1.33 TO field at B 90](http://img.homeworklib.com/questions/19916c80-faed-11ea-bb1d-d54c4fbb07b4.png?x-oss-process=image/resize,w_560)
