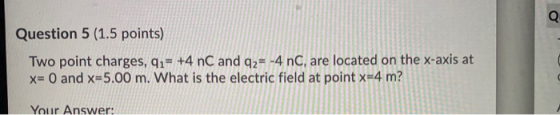

Q Question 5 (1.5 points) Two point charges, qı= +4 nC and 92= -4 nC, are...

Question

Question

science physics

Answer 1

Answer #1

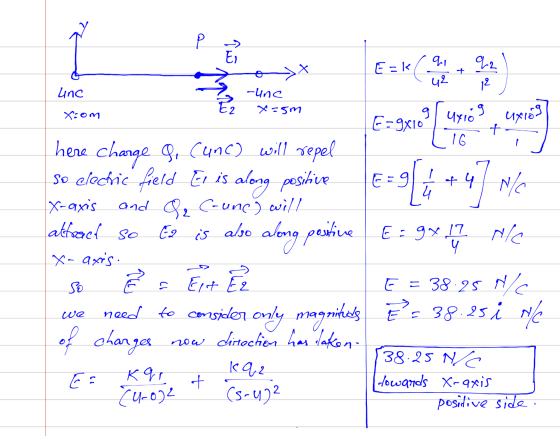

P -> Ei ox E = ( 9 + 9.2 42 unc 12 19 -unc E2 x=5m Xom guxio 9 uxlog E=9x10 t 1 G :9 Lt + 4 N/ 47 attract so €2 is also Ne he

electric field of 38.25 N/C along positive x-axis.

Thanks for asking.

Answer 2

Similar Homework Help Questions

Question 5 (1.5 points) Two point charges, q,= +1 nC and q = -4 nC, are...

Question 5 (1.5 points) Two point charges, q,= +1 nC and q = -4 nC, are located on the x-axis at x= 0 and x=5.00 m. What is the electric field at point x=3 m? Your Answer: Answer Question 6 (1.5 points) Two point charges, q,= +2 nC and q = -14 nC, are located on the x-axis at x= 0 and x=7 m. What is the distance of ZERO electric field from the positive charge? Your Answer: Answer
Question 6 (1.5 points) Two point charges, 4.- +9 nC and 92= -15 nC, are located...

Question 6 (1.5 points) Two point charges, 4.- +9 nC and 92= -15 nC, are located on the x-axis at x= 0 and x=7 m. What is the distance of ZERO electric field from the positive charge? Qud TE (5 ch Your Answer:
Two point charges, q₁= +10 nC and q₂= -5 nC, are located on the x-axis at...

Two point charges, q₁= +10 nC and q₂= -5 nC, are located on the x-axis at x= 0 and x=5.00 m. What is the electric field at point x=3.0 m?

PLEASE ANSWER ALL QUESTIONS. ROUND ANSWER TO THE FOURTH DECIMAL PLACE WHEN NEEDED Question 5 (1.5...

PLEASE ANSWER ALL QUESTIONS. ROUND ANSWER TO THE FOURTH DECIMAL PLACE WHEN NEEDED Question 5 (1.5 points) Two point charges, q,= +1 nC and q = -4 nC, are located on the x-axis at x= 0 and x=5.00 m. What is the electric field at point x=3 m? Your Answer: Answer Question 6 (1.5 points) Two point charges, q,= +2 nC and q = -14 nC, are located on the x-axis at x= 0 and x=7 m. What is the...
Two charges, qı = 40 nC and q2 = -10 nC are instantaneously located on the...

Two charges, qı = 40 nC and q2 = -10 nC are instantaneously located on the x-axis a distance x = 0.10 m apart as shown in the figure below. The two charges are moving with velocity v = 1.30 Mm/s in the +z direction. There is nothing at the point P a distance y = 0.70 m above the x-axis in the +y direction. Y A. 2 -92 Х NI Find the y-component of the net electric field due...
Two point charges, q₁= +1 nC and q₂= -14 nC, are located on the x-axis at...

Two point charges, q₁= +1 nC and q₂= -14 nC, are located on the x-axis at x= 0 and x=7 m. What is the distance of ZERO electric field from the positive charge?

Fast as Possible Three point charges of q, = -85 nC, 92 = +213 nC, and...

Fast as Possible Three point charges of q, = -85 nC, 92 = +213 nC, and q3 = +29 nC are placed along the x-axis as shown in the figure. What is the electric potential at point P (relative to infinity) due to these charges? (in units of V) 0.200 m 91 93 0.200 m 0.200 m 92 Answer: Two point charges of +2 uC and -8 PC are located on the x-axis at x = -1 cm and x...
15. A point charge Q--400 nC and two unknown point charges, 41 and ?2, are placed...

15. A point charge Q--400 nC and two unknown point charges, 41 and ?2, are placed as shown (l point) Point charge q1 is located 1.3 meters along the +x-axis, point charge q, s located 0.7 meters down the -y-axis, and point charge Ois located 2.0 meters from the origin at an angle of 30° above the x-axis. At the origin, the three charges together create an electric field that has magnitude zero. What is the charge 91? 30° 0...
Question #7-4 points) A point charge, Qi, of 220 nC is located at the origin, and...

Question #7-4 points) A point charge, Qi, of 220 nC is located at the origin, and a second point charge, Q2, of-450 nC is located at y -0.55 m, as shown in the figure. We want to determine the x and y components of the electric field at point P, located 0.35 m to the right of Q as shown. E, 0.35 m -220 nC Sketch the electric field contributions at point P resulting from the individual charges, Qi and...

Two test charges are located in the x – y plane. If qı = -4.10 nC...

Two test charges are located in the x – y plane. If qı = -4.10 nC and is located at x = 0.00 m, y= 0.720 m and the second test charge has magnitude of q2 = 4.00 nC and is located at x = 1.30 m, y=0.500 m, calculate the x and y components, Ex and Ey, of the electric field, Ē, in component form at the origin, (0,0). Ez = | N/C N/C
