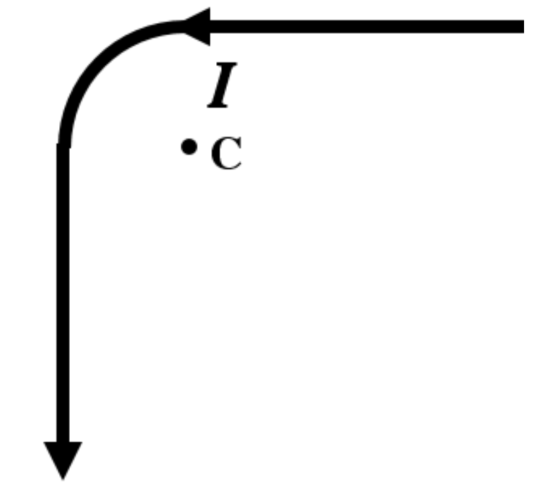

A long straight wire is bent as shown to form two perpendicular straight wires and a quarter of a circle (radius = 2.0 m). A current of 40 A is directed as shown. (1) What is the magnitude of the magnetic field at point C created by a quarter of a circle? in μT, 3 significant figures.
(2) What is the magnitude of the magnetic field at point C created by a segment of the half infinite wire? in μT, 3 significant figures.
(3) What is the magnitude of the magnetic field at point C created by an entire wire ? in μT, 3 significant figures.
(4) What is the direction of the magnetic field at point C created by an entire wire ?

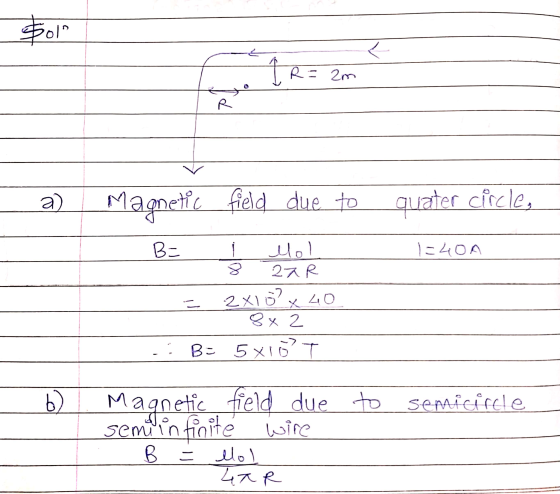

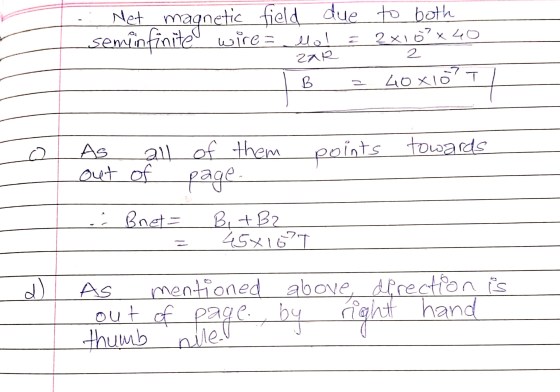

Homework Answers
Add Answer to:
A long straight wire is bent as shown to form two perpendicular
straight wires and a...
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular...
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular straight wires and a quarter of a circle (radius = 2.0 m). A current of 40 A is directed as shown. What is the magnitude of the magnetic field at point C created by a segment of the half infinite wire? in UT, 3 significant figures 1 • С O 0.00 o B W
Ý a -a A very long wire is bent so that it has two straight segments...
Ý a -a A very long wire is bent so that it has two straight segments connected to a semi-circular arc. Treat the straight segments as semi-infinite. The circular part has a radius a. In this BO) = ? problem, you will calculate the magnetic field at the centre 1 of curvature of the semi-circle, which is at the origin of the coordinates shown in the diagram. a. [2 points] What is i', a generic point on the wire, for...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure,...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For I1 = 10A, 12 -9A. I3 = 13.5A and = 4cm; (Figure 1) Part A What is the magnitude of the magnetic field generated by I, at point ? Express your answer using three significant figures. | ΑΣφ ? B- AT Submit Request Answer Figure 1 of 1 Part B What is the magnitude of the magnetic field...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure,...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For 1. = 5A, 12 = 9A, 1= 13.5A and r = 4cm Part A (Figure 1) What is the magnitude of the magnetic field generated by 1at point O? Express your answer using three significant figures. B = UT Submit Request Answer Part B What is the magnitude of the magnetic field generated by 1, at point o?...
2) A straight wire is partially bent into the shape of a circle as shown below....
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
2) A straight wire is partially bent into the shape of a circle as shown below....
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
A long wire is bent to form a 90 degree angle using a circular arc with...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
Two long, straight wires are oriented perpendicular to the computer screen, as shown in the figure,...
Two long, straight wires are oriented perpendicular to the computer screen, as shown in the figure, in which L = 5.5 cm. The current in one wire is I1 = 2.8 A, pointing into the screen, and the current in the other wire is I2 = 4.0 A, pointing out of the screen. Find the magnitude and direction of the net magnetic field at point P. 1 T 2
Two long, straight wires are perpendicular to the plane of the paper and at a distance...
Two long, straight wires are perpendicular to the plane of the paper and at a distance 0.4 m from each other, as shown in the figure. The wires carry currents of 11 = 1.8 A and 12 = 4 A in the direction indicated (out of the page). Find the magnitude and direction of the magnetic field (in uT) at a point A midway between the wires. You need to indicate the direction with a positive or a negative value...
Two long, straight wires are oriented perpendicular to the computer screen, as shown in figure,
Two long, straight wires are oriented perpendicular to the computer screen, as shown in figure, in which \(L=5.5 \mathrm{~cm}\). The current in one wire is \(I_{1}=\)\(2.8 \mathrm{~A}\), pointing into the screen, and the current in the other wire is \(I_{2}=4.0 \mathrm{~A}\), pointing out of the screen.Find the magnitude and direction of the net magnetic field at point \(P\).
Question 12 1 pts A long straight wire is bent as shown to form two perpendicular straight wires and a quarter of a circle (radius = 2.0 m). A current of 40 A is directed as shown. What is the magnitude of the magnetic field at point C created by a segment of the half infinite wire? in UT, 3 significant figures 1 • С O 0.00 o B W
Ý a -a A very long wire is bent so that it has two straight segments connected to a semi-circular arc. Treat the straight segments as semi-infinite. The circular part has a radius a. In this BO) = ? problem, you will calculate the magnetic field at the centre 1 of curvature of the semi-circle, which is at the origin of the coordinates shown in the diagram. a. [2 points] What is i', a generic point on the wire, for...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For I1 = 10A, 12 -9A. I3 = 13.5A and = 4cm; (Figure 1) Part A What is the magnitude of the magnetic field generated by I, at point ? Express your answer using three significant figures. | ΑΣφ ? B- AT Submit Request Answer Figure 1 of 1 Part B What is the magnitude of the magnetic field...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For 1. = 5A, 12 = 9A, 1= 13.5A and r = 4cm Part A (Figure 1) What is the magnitude of the magnetic field generated by 1at point O? Express your answer using three significant figures. B = UT Submit Request Answer Part B What is the magnitude of the magnetic field generated by 1, at point o?...
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
Two long, straight wires are perpendicular to the plane of the paper and at a distance 0.4 m from each other, as shown in the figure. The wires carry currents of 11 = 1.8 A and 12 = 4 A in the direction indicated (out of the page). Find the magnitude and direction of the magnetic field (in uT) at a point A midway between the wires. You need to indicate the direction with a positive or a negative value...
Two long, straight wires are oriented perpendicular to the computer screen, as shown in figure, in which \(L=5.5 \mathrm{~cm}\). The current in one wire is \(I_{1}=\)\(2.8 \mathrm{~A}\), pointing into the screen, and the current in the other wire is \(I_{2}=4.0 \mathrm{~A}\), pointing out of the screen.Find the magnitude and direction of the net magnetic field at point \(P\).
