(18) Below is a wire with current I and the current is pointing into the page....
Below is a wire with current I and the current is pointing into the page. The...

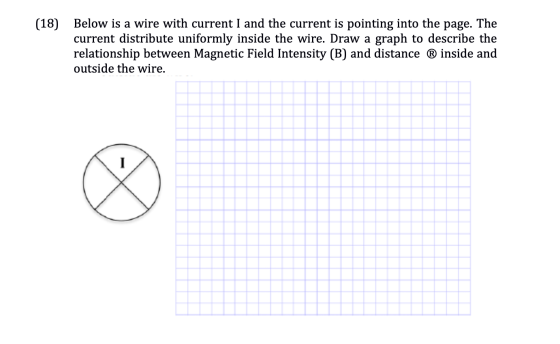

Below is a wire with current I and the current is pointing into the page. The current distribute uniformly inside the wire. Draw a graph to describe the relationship between Magnetic Field Intensity (B) and distance ® inside and outside the wire. I

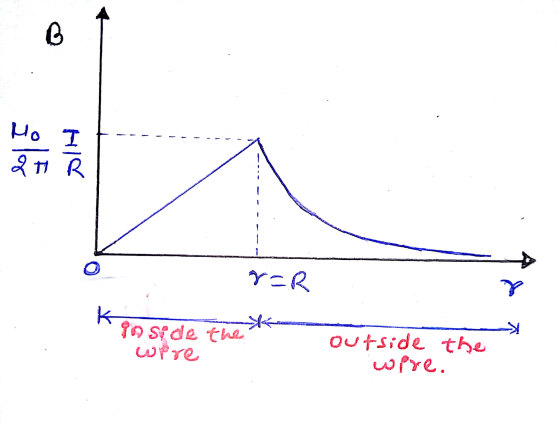

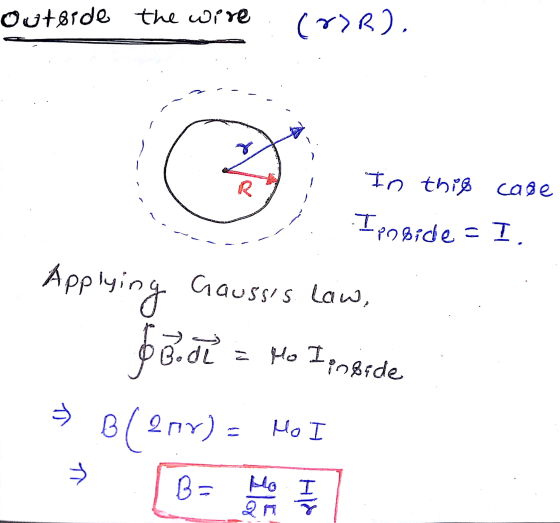

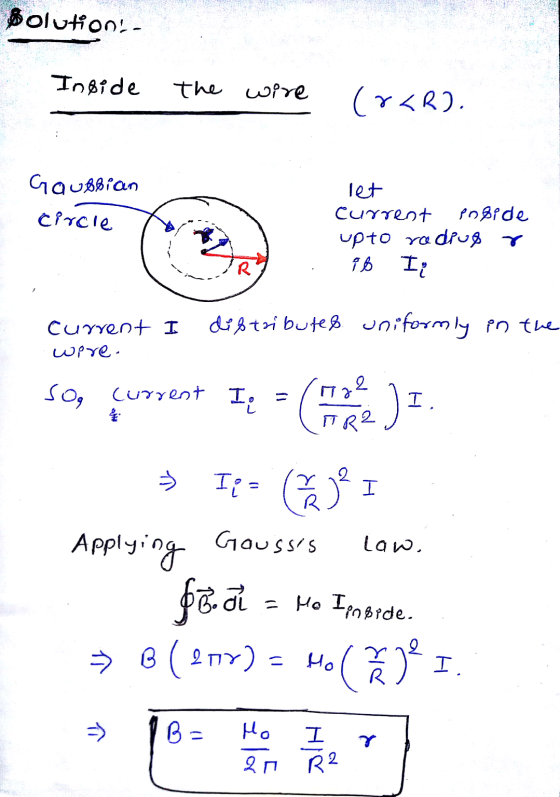

(17) The pulses shown in the figure are traveling through a string. Draw a snapshot graph...
(17) The pulses shown in the figure are traveling through a string. Draw a snapshot graph for the string at t = 2.0 s. y (cm) at=0 1 m/s * (m) 1 m/s -1- (18) Below is a wire with current I and the current is pointing into the page. The current distribute uniformly inside the wire. Draw a graph to describe the relationship between Magnetic Field Intensity (B) and distance ® inside and outside the wire. (19) The image...
A wire has a current pointing toward the top of the page. What is the direction...
A wire has a current pointing toward the top of the page. What is the direction of magnetic field, caused by the current, at point a, which is to the wester I o toward the top of the page right op out of the page toward the bottom of the page into the page tus: I 'a o toward the top of the page right out of the page toward the bottom of the page into the page left ner...
4. A steady current I flows down a long cylindrical wire of radius a. (a) Find...
4. A steady current I flows down a long cylindrical wire of radius a. (a) Find the magnetic field, both inside and outside the wire, if the current is uniformly dis- tributed over the outside surface of the wire. (b) Find the magnetic field, both inside and outside the wire, if the current is distributed in such a way that the current density J is proportional to s2, where s is the distance from the axis. (c) Show that your answers to (a)...
A wire has a current pointing toward the top of the page. What is the direction...
A wire has a current pointing toward the top of the page. What is the direction of magnetic field, caused by the current, at point a, which is to the wire's left? MI 6 toward the bottom of the page out of the page toward the top of the page D night
Activity 24B-1 1.Consider a current-carrying wire loop oriented in the plane of the page, as shown...
Activity 24B-1 1.Consider a current-carrying wire loop oriented in the plane of the page, as shown in the figures below. The current in the loop flows in a counter-clockwise direction, as shown. Inside the wire loop, draw the direction of the magnetic field created by this current. Briefly explain how you determined this direction. a. b. Inside the loop, the magnetic field created by the current in the wire loop points into the page. Draw the direction of the current...
1. The electric circuit in the diagram on the left, below, consists of a wire (without...
1. The electric circuit in the diagram on the left, below, consists of a wire (without resistance) and a 5.0 2 resistor. Current is driven through the circuit by a changing magnetic field that fills the area inside of the circuit and points into the paper, as shown Magnetic field as a function of time T o ® ® ® 40.0 cm Magnetic field in tesla 0.02 Time in seconds 0.C 0.01 0.03 70.0 cm The external magnetic field points...
A steady current I flows down a long cylindrical wire of radius a. The current is...
A steady current I flows down a long cylindrical wire of radius a. The current is distributed in such a way that the current density is J = C0 s^2 zˆ, where s is the radial distance from the axis of the wire and C0 is a constant. (a) Find the magnetic field, B~ out, outside the wire at s > a. (b) Find the magnetic field, B~ in, inside the wire at s ≤ a. (c) Find the constant...
The magnetic field inside wires In a regular household wire, current I flows (uniformly!) down a...
The magnetic field inside wires In a regular household wire, current I flows (uniformly!) down a long straight conducting wire of radius R. Assume the metal is a "magnetically linear" material, and find the magnetic field B as a function of distance s from the center of the wire (both inside and outside the wire) What are all the bound currents in this problem? (Check yourself by verifying that the total bound current is zero) What can you say about...
b inside a current carrying wire A steady current I flows through a wire of radius...
b inside a current carrying wire
A steady current I flows through a wire of radius a. The current density in a wire varies with ras ) = kr2, where k is a constant and r is the distance from the axis of the wire. Find expressions for the magnitudes of the magnetic field inside and outside the wire as a function of r. (Hint: Find the current through an Ampèrian loop of radius r using thru /j. dA. Use...
Below is a wire with current I and the current is pointing into the page. The current distribute uniformly inside the wire. Draw a graph to describe the relationship between Magnetic Field Intensity (B) and distance ® inside and outside the wire. I
(17) The pulses shown in the figure are traveling through a string. Draw a snapshot graph for the string at t = 2.0 s. y (cm) at=0 1 m/s * (m) 1 m/s -1- (18) Below is a wire with current I and the current is pointing into the page. The current distribute uniformly inside the wire. Draw a graph to describe the relationship between Magnetic Field Intensity (B) and distance ® inside and outside the wire. (19) The image...
A wire has a current pointing toward the top of the page. What is the direction of magnetic field, caused by the current, at point a, which is to the wester I o toward the top of the page right op out of the page toward the bottom of the page into the page tus: I 'a o toward the top of the page right out of the page toward the bottom of the page into the page left ner...
4. A steady current I flows down a long cylindrical wire of radius a. (a) Find the magnetic field, both inside and outside the wire, if the current is uniformly dis- tributed over the outside surface of the wire. (b) Find the magnetic field, both inside and outside the wire, if the current is distributed in such a way that the current density J is proportional to s2, where s is the distance from the axis. (c) Show that your answers to (a)...
A wire has a current pointing toward the top of the page. What is the direction of magnetic field, caused by the current, at point a, which is to the wire's left? MI 6 toward the bottom of the page out of the page toward the top of the page D night
Activity 24B-1 1.Consider a current-carrying wire loop oriented in the plane of the page, as shown in the figures below. The current in the loop flows in a counter-clockwise direction, as shown. Inside the wire loop, draw the direction of the magnetic field created by this current. Briefly explain how you determined this direction. a. b. Inside the loop, the magnetic field created by the current in the wire loop points into the page. Draw the direction of the current...
1. The electric circuit in the diagram on the left, below, consists of a wire (without resistance) and a 5.0 2 resistor. Current is driven through the circuit by a changing magnetic field that fills the area inside of the circuit and points into the paper, as shown Magnetic field as a function of time T o ® ® ® 40.0 cm Magnetic field in tesla 0.02 Time in seconds 0.C 0.01 0.03 70.0 cm The external magnetic field points...
b inside a current carrying wire
A steady current I flows through a wire of radius a. The current density in a wire varies with ras ) = kr2, where k is a constant and r is the distance from the axis of the wire. Find expressions for the magnitudes of the magnetic field inside and outside the wire as a function of r. (Hint: Find the current through an Ampèrian loop of radius r using thru /j. dA. Use...
