Add Answer to:

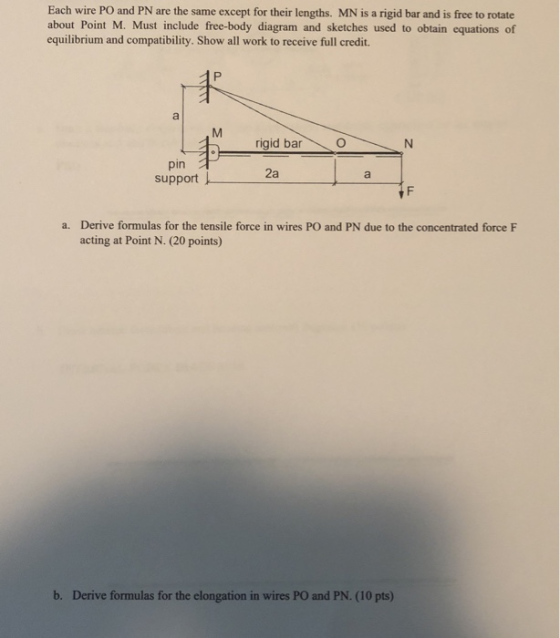

Each wire PO and PN are the same except for their lengths. MN is a rigid...
Each wire PO and PN are the same except for their lengths. MN is a rigid...
Each wire PO and PN are the same except for their lengths. MN is
a rigid bar and is free to rotate about Point M. Must include
free-body diagram and sketches used to obtain equations of
equilibrium and compatibility. Show all work.
a. Derive formulas for the tensile force in wires PO and PN due
to the concentrated force F acting at Point N.
b. Derive formulas for the elongation in wires PO and PN

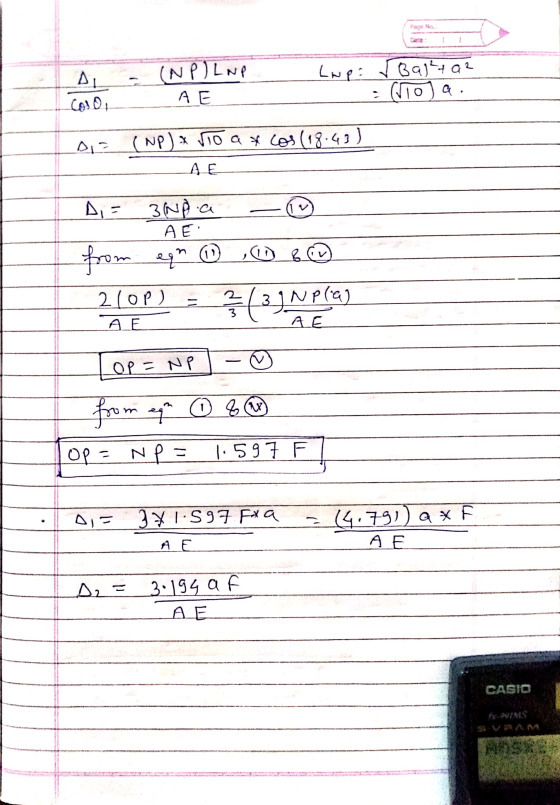

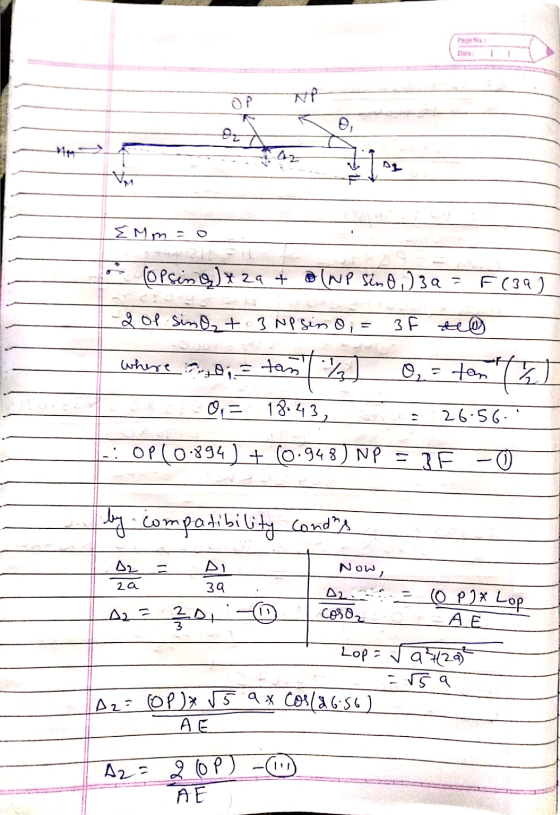

a M z ܠܓܛܓ ....
Figure < 1 of 1 Consider, for instance, a bar of initial length L and cross-sectional...
Figure < 1 of 1 Consider, for instance, a bar of initial length L and cross-sectional area A stressed by a force of magnitude F. As a result, the bar stretches by AL (Figure 1) Let us define two new terms: • Tensile stress is the ratio of the stretching force to the cross-sectional area: stress = 5 • Tensile strain is the ratio of the elongation of the rod to the initial length of the bar strain= 41 It...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is solutions manual for DESIGN of MACHINERY 5th...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is
solutions manual for DESIGN of MACHINERY 5th Edition number
11-12
PROBLEM 11-12 Statement: Figure P11-5b shows a fourbar linkage and its dimensions in meters. The steel crank, coupler, and rocker have uniform cross sections of 60 mm diameter. In the instantaneous position shown, the crank 0,4 has a = -10 rad/sec and a = 10 rad/sec2. There is a honizontal force at P of F = 500 N. Find all pin...
Each wire PO and PN are the same except for their lengths. MN is
a rigid bar and is free to rotate about Point M. Must include
free-body diagram and sketches used to obtain equations of
equilibrium and compatibility. Show all work.
a. Derive formulas for the tensile force in wires PO and PN due
to the concentrated force F acting at Point N.
b. Derive formulas for the elongation in wires PO and PN
a M z ܠܓܛܓ ....
Figure < 1 of 1 Consider, for instance, a bar of initial length L and cross-sectional area A stressed by a force of magnitude F. As a result, the bar stretches by AL (Figure 1) Let us define two new terms: • Tensile stress is the ratio of the stretching force to the cross-sectional area: stress = 5 • Tensile strain is the ratio of the elongation of the rod to the initial length of the bar strain= 41 It...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is
solutions manual for DESIGN of MACHINERY 5th Edition number
11-12
PROBLEM 11-12 Statement: Figure P11-5b shows a fourbar linkage and its dimensions in meters. The steel crank, coupler, and rocker have uniform cross sections of 60 mm diameter. In the instantaneous position shown, the crank 0,4 has a = -10 rad/sec and a = 10 rad/sec2. There is a honizontal force at P of F = 500 N. Find all pin...
