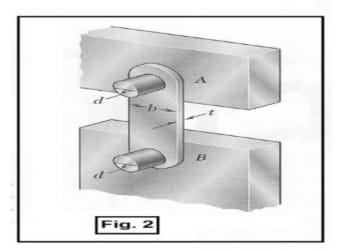

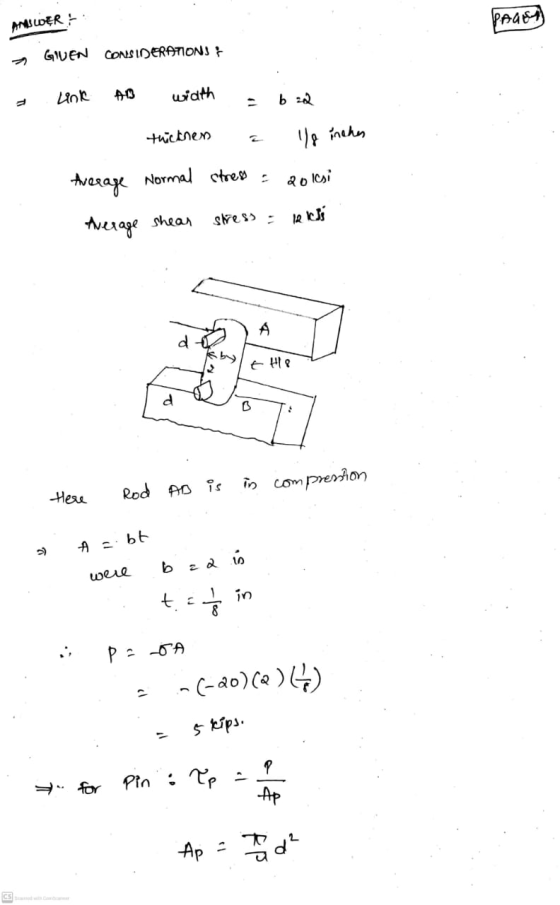

2.- Link AB, whose width is b = 2 "and its thickness t = 1/8", is used to support the end of a horizontal beam. If it is known that the average normal stress in the link is - 20 ksi, and that the average shear stress in each of the pins is 12 ksi, Find:

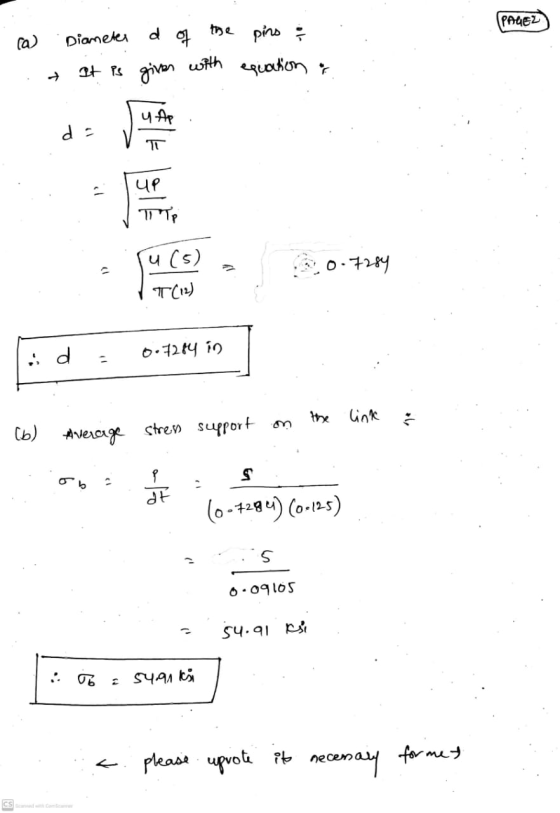

a) the diameter d of the pins,
b) the average stress of support on the link.
Make the free body diagram and explain step by step
Homework Answers
Add Answer to:
2.- Link AB, whose width is b = 2 "and its thickness t = 1/8",
is...
Link AB, of width b = 2 in and thickness t = 1/4 in . is...
Link AB, of width b = 2 in and thickness t = 1/4 in . is used to support the end of a horizontal beam Knowing that the average normal stress in the link is - 20 ksi and that the average shearing stress in each of the two pins is 12 ksi. determine the diameter d of the pins. the average bearing stress in the link
Determine the required thickness of member BC and the diameter of the pins at A and B if the allowable normal stress fo...
Determine the required thickness of member BC and the diameter of
the pins at A and B if the allowable normal stress for member BC
sallow = 29ksi is and the allowable shear stress for the pins is
tallow = 10 ksi.
Assume: width (in)= 2 thickness (in)= 0.25 force (ib)= 500 pin diameter (in)= 0.5 4. See the pin joint shown below, the...
Assume: width (in)= 2
thickness (in)= 0.25
force (ib)= 500
pin diameter (in)= 0.5
4. See the pin joint shown below, the force, pin diameter width and link thickness from the spreadsheet. Assume the link is made of steel with strength of 36,000 psi and pin shear strength of 21,600 psi. Ignore the ears. a. Is the pin in single or double shear? b. Given the force and pin dimensions, what is the shear stres:s in the pin? c. Given...
Question 2 beam is supported by a pin at A and a short link BC. If P= 15 kN, determine the average shear stres...
Question 2The beam is supported by a pin at A and a short link BC. If P= 15 kN, determine the average shear stress developed in the pins at A, B, and C. All pins are in double shear as shown, and each has a diameter of 18 mm.
Beam AB is supported as shown in the figure. Tie rod (1) is attached at B...
Beam AB is supported as shown in the figure. Tie rod (1) is attached at B and C with double shear pin connections, while the pin at A is attached with a single shear connection. The pins at A, B, and C each have an ultimate shear strength of 52 ksi, and tie rod (1) has a yield strength of 30 ksi. A concentrated load of P 26 kips the beam as shown. A factor safety of 2.5 required for...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at A and C as well as at B and that no other changes have been made. A in. 8 in. B C 4 in. 6 in. Fig.P1.51 1.51 Link AC is made of a steel with a 65-ksi ultimate normal stress and has a 2-in. uniform rectangular cross section. It is connected to a support at A and to member BCD at C by-in.-diameter...
Questions 5 through 11: FIG 2 shows member of width w and thickness subjected to a...
Questions 5 through 11: FIG 2 shows member of width w and thickness subjected to a tensile force P with two rectangular P glue joints. It is made of a single material with Young's modulus E and Poisson ratio v(shading is used to differentiate the three sections). (Q5 to Q6 1 point each, Q7 to Q11 2 points each) FIG 2 (Questions 5-11) 5) The average shear stress on joint 1 is a) 0 6) The average normal stress on...
5.- A steel arrow is made of two segments. Segment AC has a diameter of 0.5...
5.- A steel arrow is made of two segments. Segment AC has a
diameter of 0.5 "and CB has a diameter of 1". If the shaft is fixed
at its ends A and B and subject to a torque of 500 Ib-ft. Find the
maximum shear stress at arrow GAB
=10.8% (103) ksi.
Make the free body diagram and explain step by step.
0.5 in Fig. 5 (с D 500 lb-ft 5 in 1 in 8 in B 12 in
2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings...
2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings shown?. This beam is supported by a double-sheared pin at A and a rod CB. If the failure normal stress is 60 ksi and the failure shear stress is 50 ksi, determine the minimum required diameter of the rod BC and pin at A, to the nearest 1/8”, if the factor of safety is 3. 630 lb.ft 225 lb/ft A E B 30° 200...
Solve the problem with steps and clearly hand writing Problems 1 to 3: For the loaded...
Solve the problem with steps and clearly hand writing
Problems 1 to 3: For the loaded structure shown below; the allowable normal stress for member BC is and the allowable shear stress for the pins is ơde.-29 ksi and τα.-IO ksi respectively. BC 15 in Ay 8 t 3 kipft 41. 1. Determine the minimum thickness () for member BC which safely support the loaded structure. 2. Determine the minimum diameter (Da) for pinned joint A which can safely support...
Link AB, of width b = 2 in and thickness t = 1/4 in . is used to support the end of a horizontal beam Knowing that the average normal stress in the link is - 20 ksi and that the average shearing stress in each of the two pins is 12 ksi. determine the diameter d of the pins. the average bearing stress in the link
Determine the required thickness of member BC and the diameter of
the pins at A and B if the allowable normal stress for member BC
sallow = 29ksi is and the allowable shear stress for the pins is
tallow = 10 ksi.
Assume: width (in)= 2
thickness (in)= 0.25
force (ib)= 500
pin diameter (in)= 0.5
4. See the pin joint shown below, the force, pin diameter width and link thickness from the spreadsheet. Assume the link is made of steel with strength of 36,000 psi and pin shear strength of 21,600 psi. Ignore the ears. a. Is the pin in single or double shear? b. Given the force and pin dimensions, what is the shear stres:s in the pin? c. Given...
Beam AB is supported as shown in the figure. Tie rod (1) is attached at B and C with double shear pin connections, while the pin at A is attached with a single shear connection. The pins at A, B, and C each have an ultimate shear strength of 52 ksi, and tie rod (1) has a yield strength of 30 ksi. A concentrated load of P 26 kips the beam as shown. A factor safety of 2.5 required for...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at A and C as well as at B and that no other changes have been made. A in. 8 in. B C 4 in. 6 in. Fig.P1.51 1.51 Link AC is made of a steel with a 65-ksi ultimate normal stress and has a 2-in. uniform rectangular cross section. It is connected to a support at A and to member BCD at C by-in.-diameter...
Questions 5 through 11: FIG 2 shows member of width w and thickness subjected to a tensile force P with two rectangular P glue joints. It is made of a single material with Young's modulus E and Poisson ratio v(shading is used to differentiate the three sections). (Q5 to Q6 1 point each, Q7 to Q11 2 points each) FIG 2 (Questions 5-11) 5) The average shear stress on joint 1 is a) 0 6) The average normal stress on...
5.- A steel arrow is made of two segments. Segment AC has a
diameter of 0.5 "and CB has a diameter of 1". If the shaft is fixed
at its ends A and B and subject to a torque of 500 Ib-ft. Find the
maximum shear stress at arrow GAB
=10.8% (103) ksi.
Make the free body diagram and explain step by step.
0.5 in Fig. 5 (с D 500 lb-ft 5 in 1 in 8 in B 12 in
2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings shown?. This beam is supported by a double-sheared pin at A and a rod CB. If the failure normal stress is 60 ksi and the failure shear stress is 50 ksi, determine the minimum required diameter of the rod BC and pin at A, to the nearest 1/8”, if the factor of safety is 3. 630 lb.ft 225 lb/ft A E B 30° 200...
Solve the problem with steps and clearly hand writing
Problems 1 to 3: For the loaded structure shown below; the allowable normal stress for member BC is and the allowable shear stress for the pins is ơde.-29 ksi and τα.-IO ksi respectively. BC 15 in Ay 8 t 3 kipft 41. 1. Determine the minimum thickness () for member BC which safely support the loaded structure. 2. Determine the minimum diameter (Da) for pinned joint A which can safely support...
