Homework Answers
1. a. Yield strength = Force /Area
280 N/mm2 = 60000/(22/28 d^2)
Diameter, d = 16.51 mm = 1.651 cm
2. Total strain = Total Stress/E
Total strain = 490/(7 x 10^4) = 0.007
3. Final length after load is released, Lf = Li + DL
DL = Li x Total Strain = 1.5m x 0.007 = 0.0105m
Lf= 1.5 + 0.0105 = 1.5105 m
4. Maximum elastic strain, MES = Elastic stress/ Youngs Modulus(E) = [60000/((3.142/4)*(16.51^2))]/ (7 x 10^4)
MES= 0.004
Add Answer to:
1. An aluminum alloy rod 1.5 m long required a force of 60,000 N to reach...
An aluminum alloy rod 1.5 m long required a force of 60,000 N to reach its...

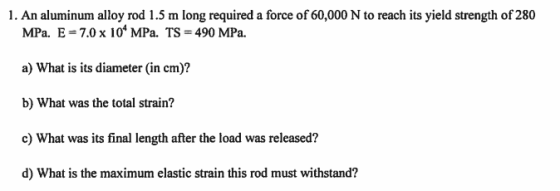

An aluminum alloy rod 1.5 m long required a force of 60,000 N to reach its yield strength of 280 MPa. E = 7.0 x 104 MPa. Ts = 490 MPa. a) What is its diameter (in cm)? b) What was the total strain? c) What was its final length after the load was released? d) What is the maximum elastic strain this rod must withstand?
HotLW Problem: Giving the engineering stress - engineering strain carve for an aluminum alloy, Calalate: 400FTTTTTTTTTT...
HotLW Problem: Giving the engineering stress - engineering strain carve for an aluminum alloy, Calalate: 400FTTTTTTTTTT 10 psi 300 MPa 50 $ Stress (MPa) Stress (10 psi) 8 100- 10/ bd = 110m 1oof lo=50 mm 0 0 0.005 0.010 o 0.05 0. 100 . 150 .20 6 percent elongation at fracture (% elongation = ?) 2 yield strength (Tyield = ?) 3 Tensile strength (TS = ?) ♡ True stress at an engineering strain of 0.04. (I=?) 5 True...
Consider a dilute Cu alloy, with a Young's modulus of 100 GPa, a strain hardening exponent...
Consider a dilute Cu alloy, with a Young's modulus of 100 GPa, a strain hardening exponent of n=0.5, strength coefficient of 33 MPa. If the initial length of a rod of Cu is 1 m, and the Cu is pulled in a tensile test to failure, what is the length of the rod at its maximum load? Group of answer choices 1.35 m 1.01 m 2.00 m 1.5 m 1.65 m
A 1.5-m-long aluminum rod must not stretch more than 1 mm and the normal stress must...
A 1.5-m-long aluminum rod must not stretch more than 1 mm and the normal stress must not exceed 40 MPa when the rod is subjected to a 3.0-kN axial load. Knowing that E= 70 GPa, determine the required diameter of the rod. The required diameter of the rod is mm.
6. An alloy rod is used in an application involving wide temperature changes. The alloy has the following properties: (1) elastic modulus of 70 GPa, (2) yield strength of 40 MPa, (3) fracture strengt...
6. An alloy rod is used in an application involving wide temperature changes. The alloy has the following properties: (1) elastic modulus of 70 GPa, (2) yield strength of 40 MPa, (3) fracture strength of 100 MPa, and (4) thermal expansion coefficient of 24x10-6 °c-1. The rod is 10 cm long and mechanically constrained. Note that the initial temperature is 20°C prior to any use. What is the temperature in [°C] to which the rod may be subjected without significant...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
A rod is to be used in an aerospace application. The defense contractor has mandated a...
A rod is to be used in an aerospace application. The defense
contractor has mandated a factor of safety of 2.6. In its
application, the maximum tensile axial load on the rod ranges
from = 2.1 kN to 2.8 kN. The
metal alloy that the rod is made of has a tensile yield strength of
480 MPa and an ultimate strength of 560 MPa. The specification for
the radius of the rod is given on the drawing.
If the rod...
Problem #1 (35 pts.) A solid 5 cm by 5 cm square aluminum rod, with a...
Problem #1 (35 pts.) A solid 5 cm by 5 cm square aluminum rod, with a 70 GPa modulus of elasticity, is stretched by an unknown axial load. The initial rod length is 1 m, and its final length (after applying the axial load) is 1.0005 m. Assume that a strain gauge (with a gauge factor of 2.2) is firmly affixed to the rod, its active axis aligned with the length of the rod. You may assume the strain gauge...
question 6 of 25 mm is pulled in tension with a 44,500 N force producing only...
question 6
of 25 mm is pulled in tension with a 44,500 N force producing only elastic detormation . What is oreonding strain and the length between the gage marks when subjected to this force? Given: elastic modulus of copper is 105 GPa. 5. A 10-mm diameter bar of 1040 carbon steel is subjected to a tensile load of 50,000 N, taking it beyond its yield point. Calculate the elastic recov removal of the tensile load. Given: elastic modulus of...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC met...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
An aluminum alloy rod 1.5 m long required a force of 60,000 N to reach its yield strength of 280 MPa. E = 7.0 x 104 MPa. Ts = 490 MPa. a) What is its diameter (in cm)? b) What was the total strain? c) What was its final length after the load was released? d) What is the maximum elastic strain this rod must withstand?
HotLW Problem: Giving the engineering stress - engineering strain carve for an aluminum alloy, Calalate: 400FTTTTTTTTTT 10 psi 300 MPa 50 $ Stress (MPa) Stress (10 psi) 8 100- 10/ bd = 110m 1oof lo=50 mm 0 0 0.005 0.010 o 0.05 0. 100 . 150 .20 6 percent elongation at fracture (% elongation = ?) 2 yield strength (Tyield = ?) 3 Tensile strength (TS = ?) ♡ True stress at an engineering strain of 0.04. (I=?) 5 True...
A 1.5-m-long aluminum rod must not stretch more than 1 mm and the normal stress must not exceed 40 MPa when the rod is subjected to a 3.0-kN axial load. Knowing that E= 70 GPa, determine the required diameter of the rod. The required diameter of the rod is mm.
6. An alloy rod is used in an application involving wide temperature changes. The alloy has the following properties: (1) elastic modulus of 70 GPa, (2) yield strength of 40 MPa, (3) fracture strength of 100 MPa, and (4) thermal expansion coefficient of 24x10-6 °c-1. The rod is 10 cm long and mechanically constrained. Note that the initial temperature is 20°C prior to any use. What is the temperature in [°C] to which the rod may be subjected without significant...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
A rod is to be used in an aerospace application. The defense
contractor has mandated a factor of safety of 2.6. In its
application, the maximum tensile axial load on the rod ranges
from = 2.1 kN to 2.8 kN. The
metal alloy that the rod is made of has a tensile yield strength of
480 MPa and an ultimate strength of 560 MPa. The specification for
the radius of the rod is given on the drawing.
If the rod...
Problem #1 (35 pts.) A solid 5 cm by 5 cm square aluminum rod, with a 70 GPa modulus of elasticity, is stretched by an unknown axial load. The initial rod length is 1 m, and its final length (after applying the axial load) is 1.0005 m. Assume that a strain gauge (with a gauge factor of 2.2) is firmly affixed to the rod, its active axis aligned with the length of the rod. You may assume the strain gauge...
question 6
of 25 mm is pulled in tension with a 44,500 N force producing only elastic detormation . What is oreonding strain and the length between the gage marks when subjected to this force? Given: elastic modulus of copper is 105 GPa. 5. A 10-mm diameter bar of 1040 carbon steel is subjected to a tensile load of 50,000 N, taking it beyond its yield point. Calculate the elastic recov removal of the tensile load. Given: elastic modulus of...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
