6. A long solenoid of area A = TR12 and turns per unit length n carries...

Question

Question

6. A long solenoid of area A = TR12 and turns per unit length n carries a current i = locoswt. Find the electric field at a d

science physics

Answer 1

Answer #1

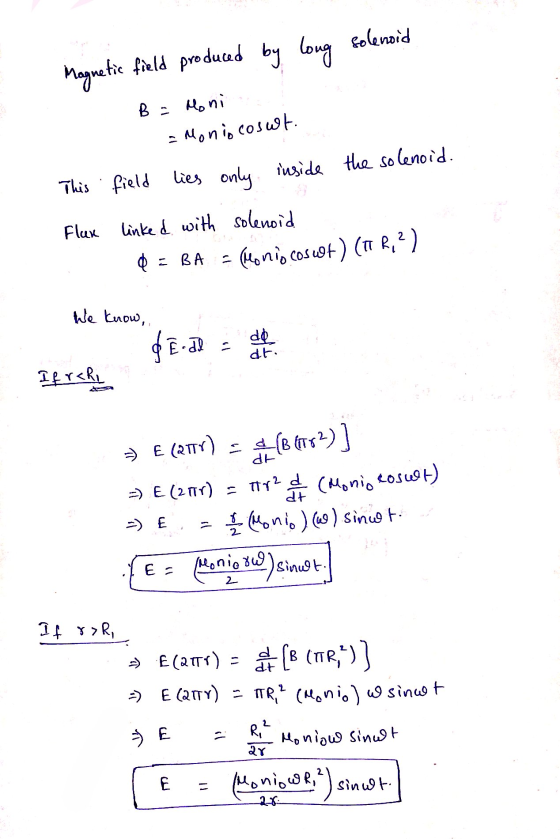

long solenoid Magnetic field produced by B = Moni = Monio coswt. This field lies only inside the solenoid. linked with soleno

Answer 2
