A cantilever beam of length L and constant El carries a concentrated load P at a...
A cantilever beam of length L and constant EI carries a concentrated load P at a...

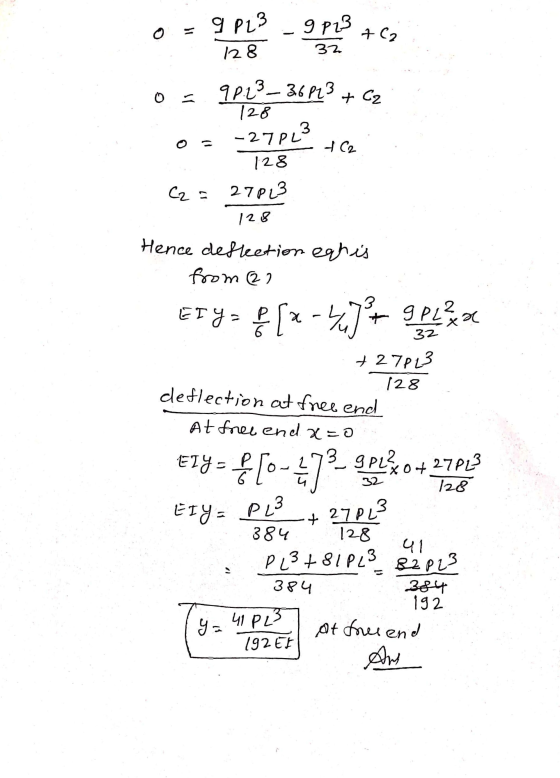

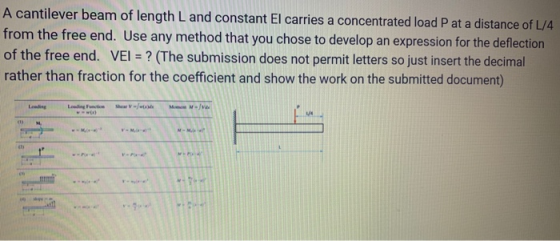

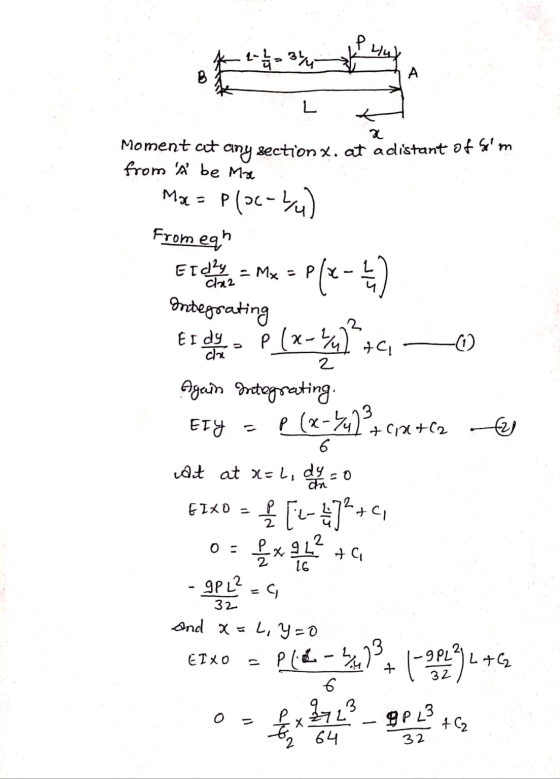

A cantilever beam of length L and constant EI carries a
concentrated load P at a distance of L/4 from the free end. Use any
method that you chose to develop an expression for the deflection
of the free end. VEI = ?
Loading Loading Function wwx) Shear V /w(xdx Moment M-Vax 1/4 M = M-a) V-M, M-M V-a) N-P) 03 V- M- (3 shop
Рkip W kip/ft Problem No. 6 (30 points) The cantilever beam of length L and constant...
Рkip W kip/ft Problem No. 6 (30 points) The cantilever beam of length L and constant modulus of rigidity El is supported at B and subjected to uniformly distributed load w (kip/ft) throughout and a concentrated load P (kip) at A. (a) Using the method of integration, determine deflection at A (as fraction; do not use decimal). (b) Determine the rotation at A (as fraction; do not use decimal) (c) List two major assumptions used in solving this problem. El...
(a) A cantilever beam shown in Figure 6 is subjected to a concentrated load P. Deflection...
(a) A cantilever beam shown in Figure 6 is subjected to a concentrated load P. Deflection of the beam at each point can be defined by the following equations: 6EI Pa 6EI F3x-a) for axx<l The following MATLAB code calculates and plots the deflection diagram for a beam with 1-4 m, d1 = 3 m, b = 1 m,E>210 x 10, Pa, 1 = 285 x 10-6 m4 and P = 20 kN. Find at least FOUR errors in the...
Cantilever beam under a concentrated load. One end is fixed. Solve for the deflection and stress...
Cantilever beam under a concentrated load. One end is fixed. Solve for the deflection and stress of the cantilever. y= 1/EI [-1/6Fx^3 + 1/2FL^2x - 1/3FL^3] E Modulus of Elasticity 70 GPa I Second Moment of Inertia (bh^3)/12 Length 0.55m Height 0.0127m Thickness 0.0635m Load m=4.53kg applied 0.0325m away from the free end and gravity = 9.81m/s^2
+ A cantilever beam with a round cross section has a concentrated load F at the...
+ A cantilever beam with a round cross section has a concentrated load F at the end. The total strain energy due to bending and direct shear is given as: F/1.11F1 U=- 6EI 2 AG Using Castigliano's method find the total deflection at the free end in inches. ned" nad Given that I = -, G=12 Mpsi, F=150 lbf, I=12 in, E =31 Mpsi, and d=1.25 in. 64 Hint: y = OU OF
8. The cantilever beam in Figure Q8 subjects to concentrated loading. The cross section geometry gives...
8. The cantilever beam in Figure Q8 subjects to concentrated loading. The cross section geometry gives the second moment of area / 100 x 10 m. The longitudinal geometry of the beam: a 2 m, b 1 m. The material of the beam: Young's modulus E 200 GPa. The loading: concentrated force P 10 KN. (a) Determine the reactions to the beam at the fixed end. (b) Determine the rotation angle at point x-a (c) (Determine the deflection at the...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly fixed at Airy stress function relating to the problem is 40bc3 Find the loading boundary conditions. ni mattern corresponding to the function and check its validity with respeet to the stress function satisfies the biharmonic equation. The beam is a cantilever under a uniformly distributed load of intensity w/unit area with a self-equilibrating stress application given by ơ.-n(12c"y-20y3)/40bc3 at x-0. There is zero shear...
Problem 1 A cantilever beam of length L is clamped at its left end (x =...
Problem 1 A cantilever beam of length L is clamped at its left end (x = 0) and is free at its right end (x = L). Along with the fourth-order differential equation EIy(4) = w(x), it satisfies the given boundary conditions y(0) = y′(0) = 0,y′′(L) = y′′′(L) = 0. a) If the load w(x) = w0 a constant, is distributed uniformly, determine the deflection y(x). b) Graph the deflection curve when w0 = 24EI and L = 1....
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of...
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of intensity p per unit length as shown Figure 2 below. Assume the deflection shape to be a polynomial in x, and is given by v (x) = a., + as+ a2 x, where ao, a.呙are constants to be determined. (a) State the boundary conditions for the deflection equation. Using the boundary conditions stated in (a) and the Rayleigh-Ritz method, determine (b) the constants a,...
A cantilever beam of length L and constant EI carries a
concentrated load P at a distance of L/4 from the free end. Use any
method that you chose to develop an expression for the deflection
of the free end. VEI = ?
Loading Loading Function wwx) Shear V /w(xdx Moment M-Vax 1/4 M = M-a) V-M, M-M V-a) N-P) 03 V- M- (3 shop
Рkip W kip/ft Problem No. 6 (30 points) The cantilever beam of length L and constant modulus of rigidity El is supported at B and subjected to uniformly distributed load w (kip/ft) throughout and a concentrated load P (kip) at A. (a) Using the method of integration, determine deflection at A (as fraction; do not use decimal). (b) Determine the rotation at A (as fraction; do not use decimal) (c) List two major assumptions used in solving this problem. El...
(a) A cantilever beam shown in Figure 6 is subjected to a concentrated load P. Deflection of the beam at each point can be defined by the following equations: 6EI Pa 6EI F3x-a) for axx<l The following MATLAB code calculates and plots the deflection diagram for a beam with 1-4 m, d1 = 3 m, b = 1 m,E>210 x 10, Pa, 1 = 285 x 10-6 m4 and P = 20 kN. Find at least FOUR errors in the...
+ A cantilever beam with a round cross section has a concentrated load F at the end. The total strain energy due to bending and direct shear is given as: F/1.11F1 U=- 6EI 2 AG Using Castigliano's method find the total deflection at the free end in inches. ned" nad Given that I = -, G=12 Mpsi, F=150 lbf, I=12 in, E =31 Mpsi, and d=1.25 in. 64 Hint: y = OU OF
8. The cantilever beam in Figure Q8 subjects to concentrated loading. The cross section geometry gives the second moment of area / 100 x 10 m. The longitudinal geometry of the beam: a 2 m, b 1 m. The material of the beam: Young's modulus E 200 GPa. The loading: concentrated force P 10 KN. (a) Determine the reactions to the beam at the fixed end. (b) Determine the rotation angle at point x-a (c) (Determine the deflection at the...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly fixed at Airy stress function relating to the problem is 40bc3 Find the loading boundary conditions. ni mattern corresponding to the function and check its validity with respeet to the stress function satisfies the biharmonic equation. The beam is a cantilever under a uniformly distributed load of intensity w/unit area with a self-equilibrating stress application given by ơ.-n(12c"y-20y3)/40bc3 at x-0. There is zero shear...
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of intensity p per unit length as shown Figure 2 below. Assume the deflection shape to be a polynomial in x, and is given by v (x) = a., + as+ a2 x, where ao, a.呙are constants to be determined. (a) State the boundary conditions for the deflection equation. Using the boundary conditions stated in (a) and the Rayleigh-Ritz method, determine (b) the constants a,...
