3. (30 pts) A shaft is driven at A by a motor that transmits 5 kW...

Question

Question

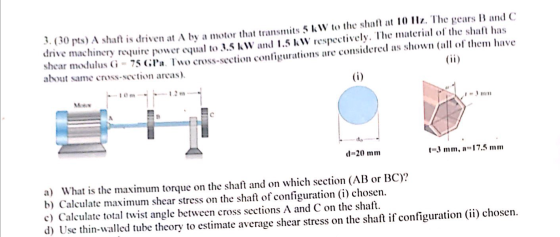

3. (30 pts) A shaft is driven at A by a motor that transmits 5 kW to the shaft at 10 112. The gears Band C drive machinery re

engineering Mechanical-Engineering

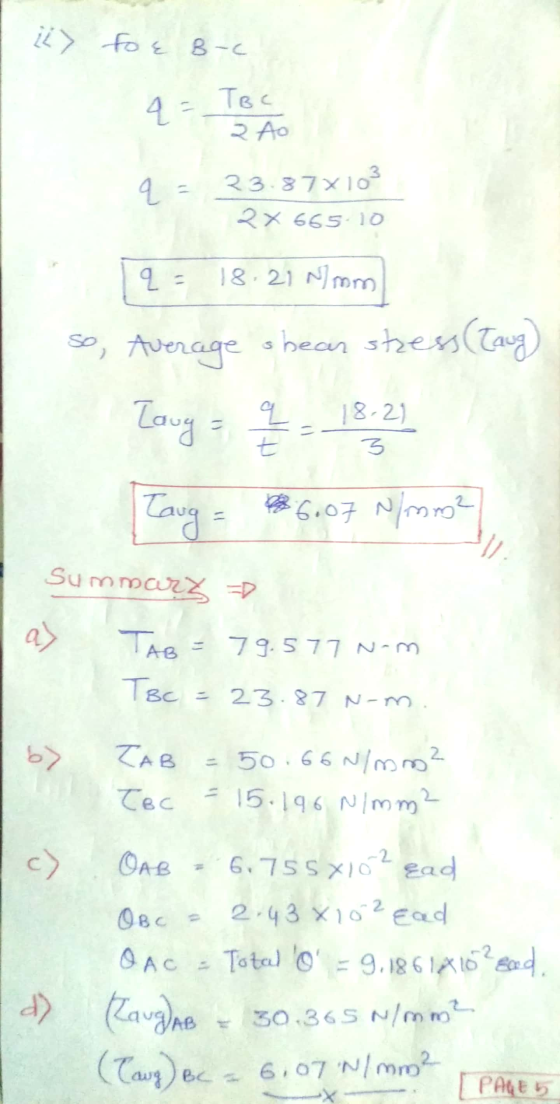

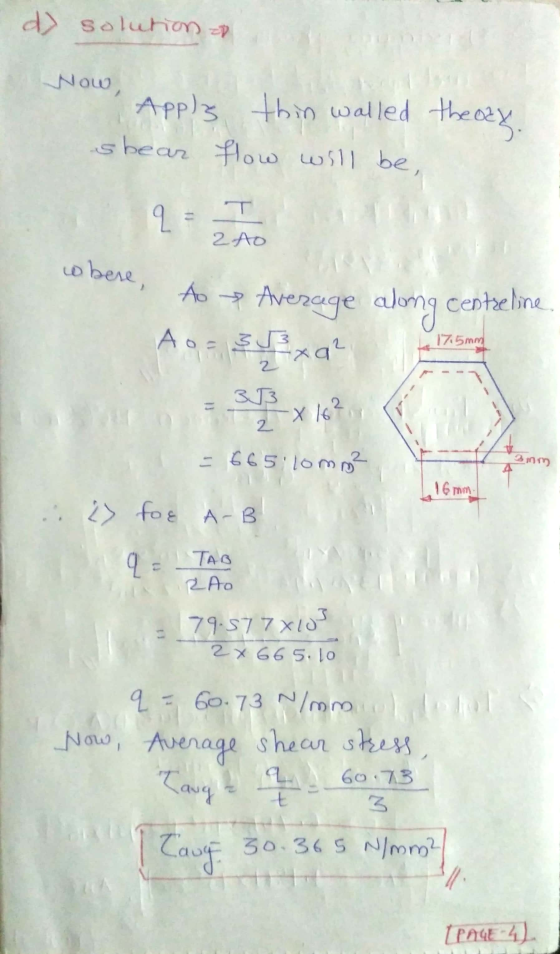

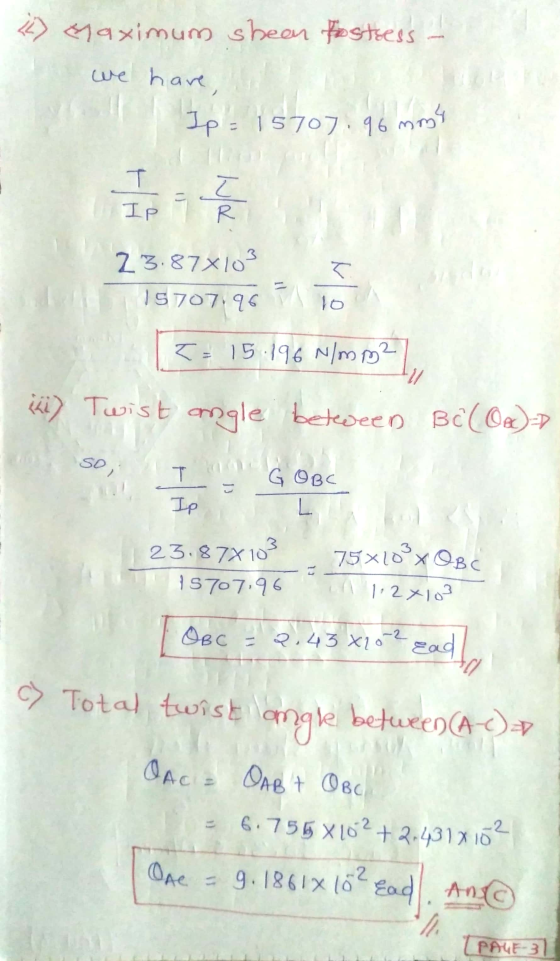

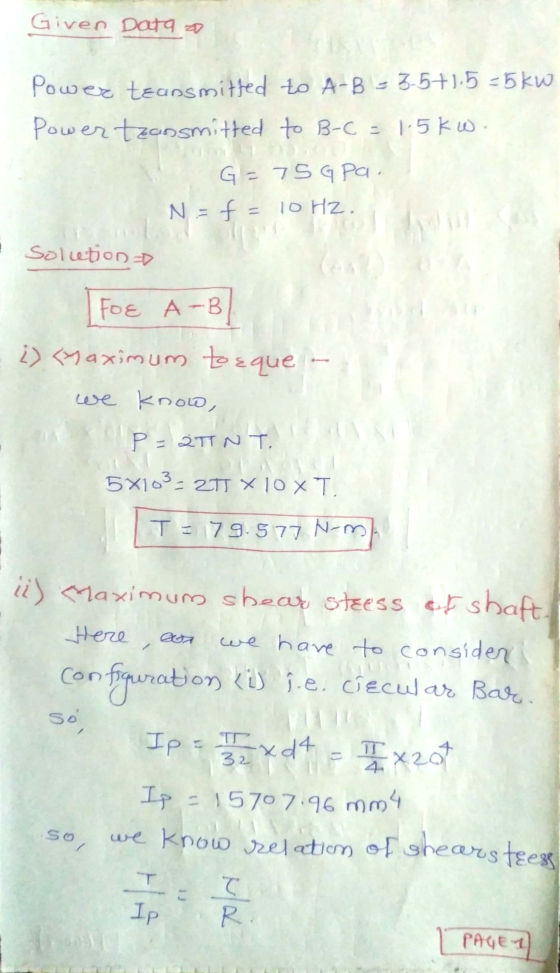

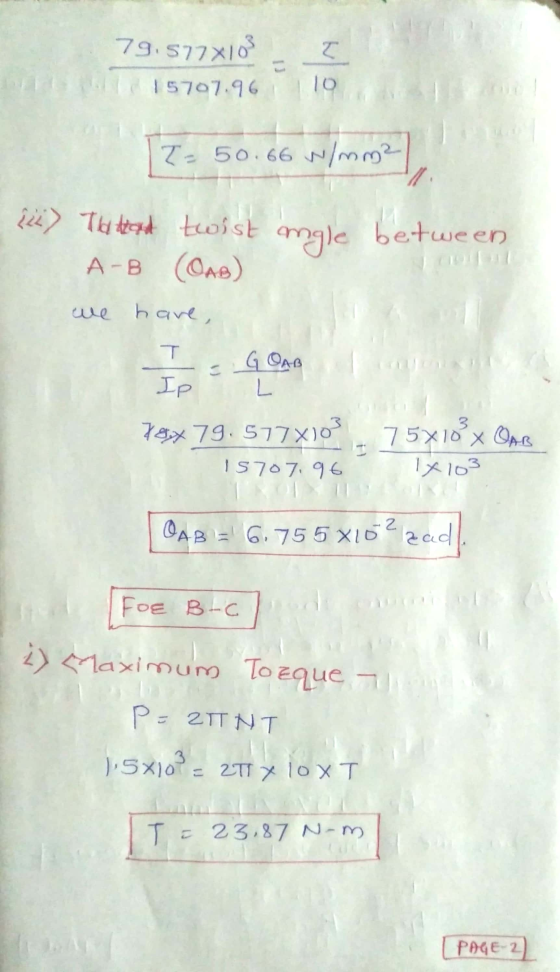

Answer 1

Answer #1

Answer 2
