Coherent light of wavelength 650nm is normally incident (in the air) upon a double-slit apparatus of...
Coherent light of wavelength 650nm is normally incident (in the air) upon a double-slit apparatus of separation distance 2x10-4m & produces an interference pattern on a screen a perpendicular distance of 4m away.
a) What angle (in degrees) does the 5thorder (m = 5) bright fringe make (relative to the central maximum)?
b) How wide is the central maximum on the screen (i.e., how far apart (in cm) are the lowest order minima)?

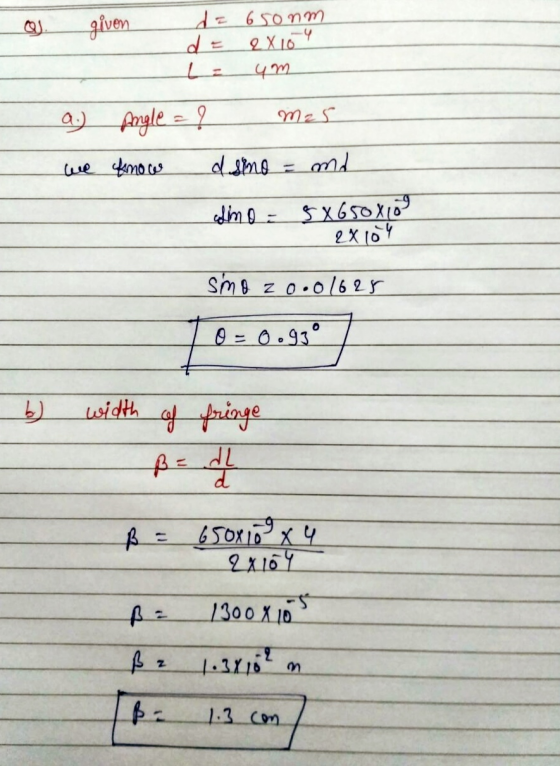

Homework Answers
Add Answer to:
Coherent light of wavelength 650nm is normally incident (in the
air) upon a double-slit apparatus of...
6) (10 pts) Coherent light of wavelength 650nm is normally incident (in air) upon a double-slit...
6) (10 pts) Coherent light of wavelength 650nm is normally incident (in air) upon a double-slit apparatus of separation distance 2x104m & produces an interference pattern on a screen a perpendicular distance of 4m away. a) (5 pts) What angle (in degrees) does the 5th order (m= 5) bright fringe make (relative to the central maximum)? b) (5 pts) How wide is the central maximum on the screen (i.e., how far apart (in cm) are the lowest order minima)?
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit...
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit with a slit separation of 0.103 mm. An interference pattern is produced on the screen 2.56 m away from the slits. a) how far from the central maximum is the third interference maximum? b) what about the third interference minimum?
1. In a double-slit experiment with a slit spacing of 0.35 mm, the center-to-center distance between a dark region and the nearest bright spot is 1.1 mm, on a screen that is 1.4 m away. Assume small...
1. In a double-slit experiment with a slit spacing of 0.35 mm, the center-to-center distance between a dark region and the nearest bright spot is 1.1 mm, on a screen that is 1.4 m away. Assume small angles. (a) How wide is the bright fringe? (b) How wide is the central maximum? TIm (c) How wide is the first dark fringe? TTIM (d) How far apart are adjacent maxima? (e) How far apart are adjacent minima? mIm (0 What is...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Two lasers are shining on a double slit, with slit separation d. Laser 1 has a...
Two lasers are shining on a double slit, with slit separation
d. Laser 1 has a wavelength of d/20, whereas
laser 2 has a wavelength of d/15. The lasers produce
separate interference patterns on a screen a distance 4.40 m away
from the slits
Coherent light with wavelength 600 nm passes through two very
narrow slits, and the interference pattern is observed on a screen
a distance of 3.00 m from the slits. The first-order bright fringe
is a distance...
3)A 680 nm laser illuminates a double-slit apparatus with a slit separation distance of 7.83 μm....
3)A 680 nm laser illuminates a double-slit apparatus with a slit separation distance of 7.83 μm. On the viewing screen, you measure the distance from the central bright fringe to the 2nd bright fringe to be 88.2 cm. How far away (in meters) is the viewing screen from the double slits? 4) A 600 nm laser illuminates a double-slit apparatus with a slit separation distance of 3.55 μm. The viewing screen is 1.50 meters behind the double slits. What is...
Laser light of wavelength 633 nm falls onto a double slit with slit separation 0.132 mm....
Laser light of wavelength 633 nm falls onto a double slit with slit separation 0.132 mm. An interference pattern is observed on a screen 2.20 m away. How far apart are the bright spots on the screen near the middle of the pattern?
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Light with a wavelength of λ = 674 nm. is incident on a single slit of...
Light with a wavelength of λ = 674 nm. is incident on a single slit of width w = 1.5 micrometers. A screen is located L = 0.95 m behind the slit and an interference pattern has formed on it. What is the distance between the central bright spot and the first dark fringe, D, in meters?
6) (10 pts) Coherent light of wavelength 650nm is normally incident (in air) upon a double-slit apparatus of separation distance 2x104m & produces an interference pattern on a screen a perpendicular distance of 4m away. a) (5 pts) What angle (in degrees) does the 5th order (m= 5) bright fringe make (relative to the central maximum)? b) (5 pts) How wide is the central maximum on the screen (i.e., how far apart (in cm) are the lowest order minima)?
1. In a double-slit experiment with a slit spacing of 0.35 mm, the center-to-center distance between a dark region and the nearest bright spot is 1.1 mm, on a screen that is 1.4 m away. Assume small angles. (a) How wide is the bright fringe? (b) How wide is the central maximum? TIm (c) How wide is the first dark fringe? TTIM (d) How far apart are adjacent maxima? (e) How far apart are adjacent minima? mIm (0 What is...
Two lasers are shining on a double slit, with slit separation
d. Laser 1 has a wavelength of d/20, whereas
laser 2 has a wavelength of d/15. The lasers produce
separate interference patterns on a screen a distance 4.40 m away
from the slits
Coherent light with wavelength 600 nm passes through two very
narrow slits, and the interference pattern is observed on a screen
a distance of 3.00 m from the slits. The first-order bright fringe
is a distance...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
