Usethe METHOD OF JOINTS to determine all member forces and indicate ifthe members are...

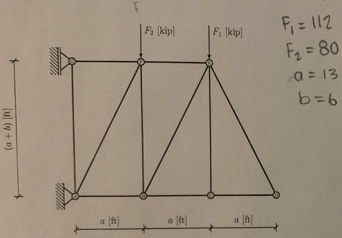

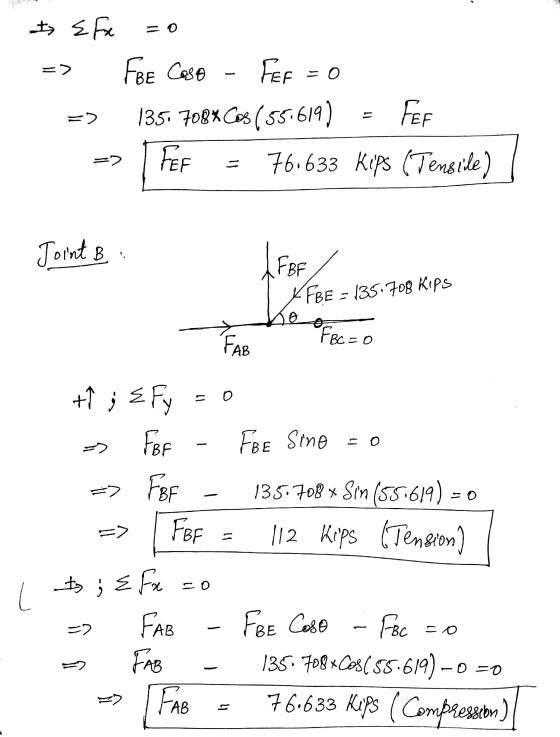

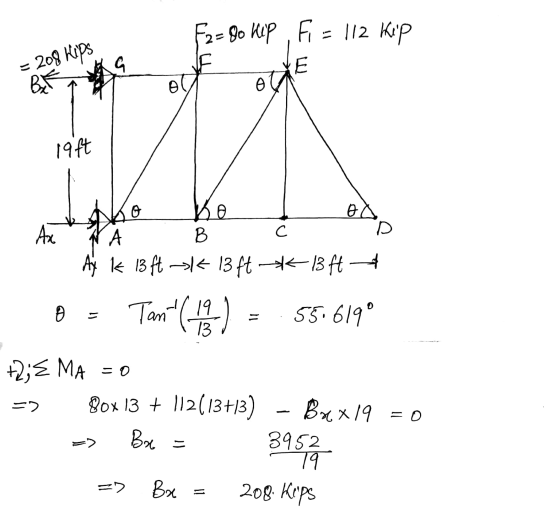

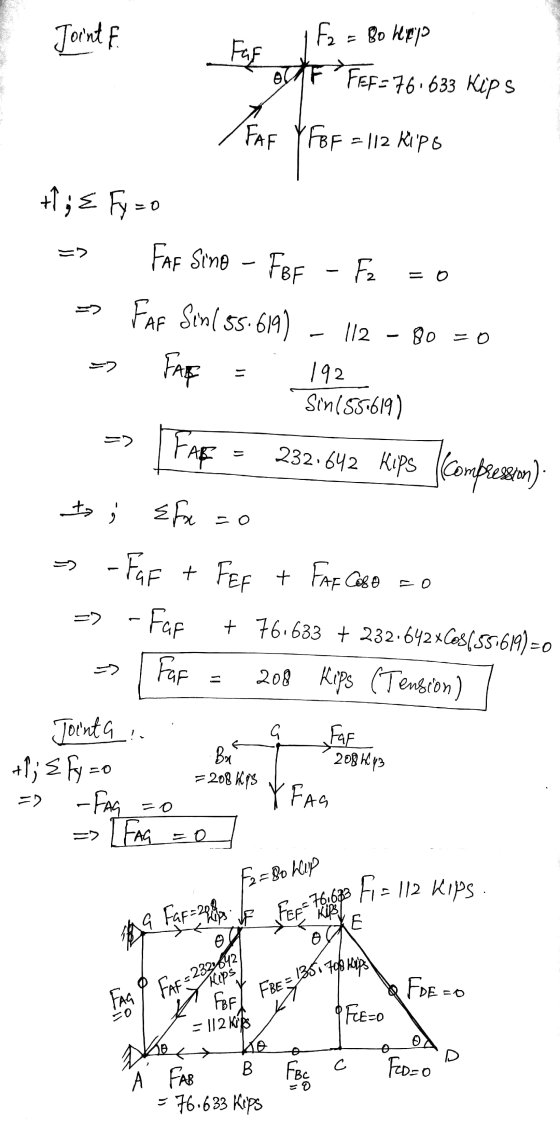

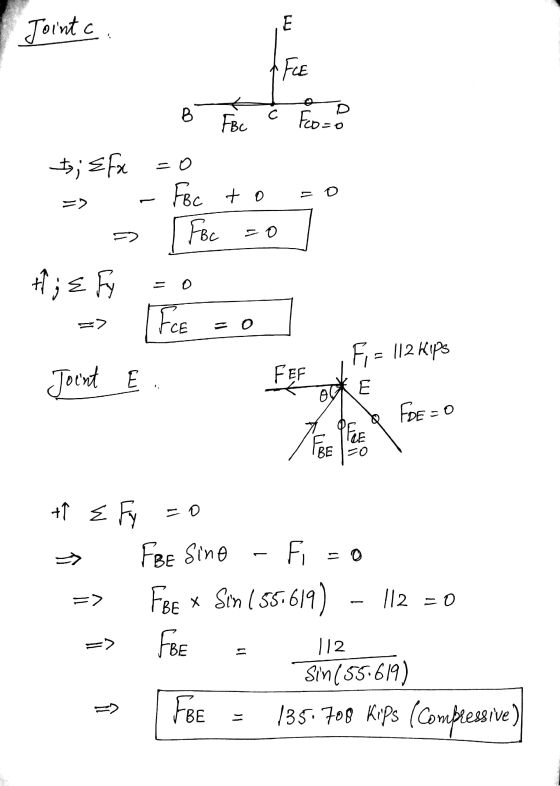

Use the METHOD OF JOINTS to determine all member forces and indicate if the members are in compression or in tension (report the findings in a proper results sketch).
Homework Answers
Add Answer to:
Usethe METHOD OF JOINTS to determine all member forces and indicate ifthe members are...

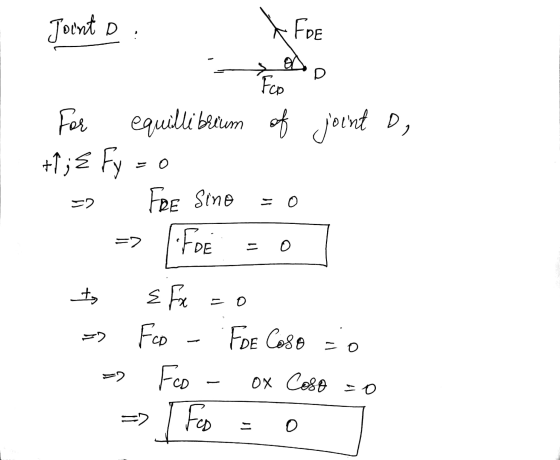

Determine the forces in member CD using the method of joints
Determine the forces in member CD using the method of joints. Indicate member CD is in tension or 30 compression.
For the following trusses determine the forces in all members using the method of joints. Specify...
For the following trusses determine the forces in all members
using the method of joints. Specify whether the member is in
tension or compression.
Problem #4: -5 ft . 5 ft . 5 ft 5 ft 11.5k 8 ft
Use the method of joints to determine the forces in members BC BD
F1 = 871 lb F2 = 228 lb L=7ft h=5.25 ft 1 Use the method of joints to determine the forces in members BC BD. BE and CE) and state if the members are in tension or in compression 2 Use the method of sections to determine the forces in members (DF. EF and EG) and state if the members are in tension or in compression.
Use the method of joints to determine the forces in members (BC, BD, BE and CE)
F1 = 695 lb F2 = 271 lb L = 3 ft 1 h = 2.25 ft .1 Use the method of joints to determine the forces in members (BC, BD, BE and CE) and state if the members are in tension or in compression. 2. Use the method of sections to determine the forces in members (DF, EF and EG) and state if the members are in tension or in compression.
Use the method of joints to determine the forces in members (BC, BD, BE and CE)
F1 = 775 lb F2 = 499 lb L = 4 ft h = 3 ft 1- Use the method of joints to determine the forces in members (BC, BD, BE and CE) and state if the members are in tension or in compression. 2- Use the method of sections to determine the forces in members (DF, EF and EG) and state if the members are in tension or in compression.
Using the method of joints, find forces in all members of the truss. Indicate whether the...
Using the method of joints, find forces in all members of the truss. Indicate whether the members are intension or compression
a) Identify all zero force members b) Use the METHOD OF SECTIONS to determine the member...
a)
Identify all zero force members
b) Use the METHOD OF SECTIONS to determine the member forces
in menbers EF, GP, OP. Indicate if the members are in compression
or in tension.
2. (a) Identify all zero force members. (5 pt.) (b) Use the method of sections to determine the member forces in members EF, (15 pt.) GP, and OP. Indicate if the members are in compression or in tension. F3 [kN] Fs [kN] = 144 [kW] Fu = 143...
Determine the force in each member of the truss shown by the method of joints. Indicate...
Determine the force in each member of the truss shown by the method
of joints. Indicate each member is in tension or compression.
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and...
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each member is in tension or compression. 600 600- B C 3 m
Using the method of joints determine the force in each member of the truss shown. Indicate...
Using the method of joints determine the force in each member of the truss shown. Indicate whether the member is in tension or compression. F1=3550lb Write the final answer here and upload the file with step by step calculations.
For the following trusses determine the forces in all members
using the method of joints. Specify whether the member is in
tension or compression.
Problem #4: -5 ft . 5 ft . 5 ft 5 ft 11.5k 8 ft
F1 = 871 lb F2 = 228 lb L=7ft h=5.25 ft 1 Use the method of joints to determine the forces in members BC BD. BE and CE) and state if the members are in tension or in compression 2 Use the method of sections to determine the forces in members (DF. EF and EG) and state if the members are in tension or in compression.
a)
Identify all zero force members
b) Use the METHOD OF SECTIONS to determine the member forces
in menbers EF, GP, OP. Indicate if the members are in compression
or in tension.
2. (a) Identify all zero force members. (5 pt.) (b) Use the method of sections to determine the member forces in members EF, (15 pt.) GP, and OP. Indicate if the members are in compression or in tension. F3 [kN] Fs [kN] = 144 [kW] Fu = 143...
Determine the force in each member of the truss shown by the method
of joints. Indicate each member is in tension or compression.
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each member is in tension or compression. 600 600- B C 3 m
Using the method of joints determine the force in each member of the truss shown. Indicate whether the member is in tension or compression. F1=3550lb Write the final answer here and upload the file with step by step calculations.
