In order to provide irrigation, water has to be pumped to an elevation 120 m through...
In order to provide irrigation, water has to be pumped to
an elevation 120 m through a 600 mm pipe where the
pressure required at the higher elevation is 172 kPa. The
source of the water and the discharge point are at
atmospheric pressure. Irrigation requirements dictate
that water must be pumped at the rate of 1m3/sec. The
loss of head due to friction and other factors is estimated
to be 2.4m. Elevation of the water source is 60 m. Find
the rating of the pump in horsepower if it is only 80%
efficient.

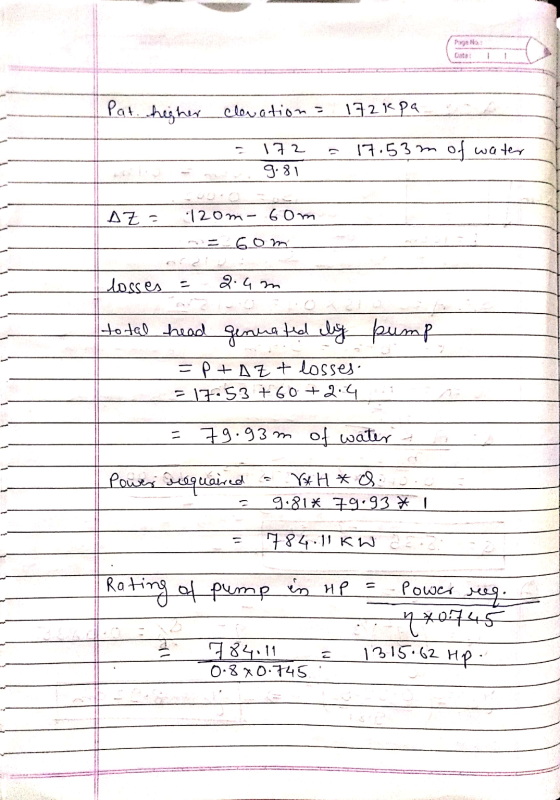

Homework Answers
