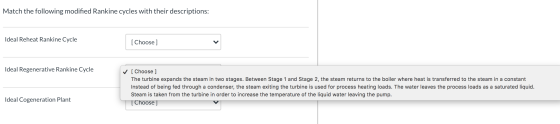

![Match the following modified Rankine cycles with their descriptions: Ideal Reheat Rankine Cycle ✓ [Choose ] The turbine expan](http://img.homeworklib.com/questions/ddb30090-fcf0-11ea-9d1f-47c880591b8c.png?x-oss-process=image/resize,w_560)

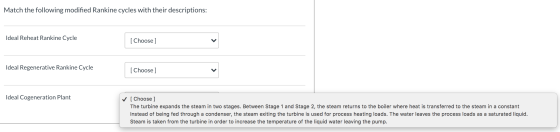

![Match the following modified Rankine cycles with their descriptions: Ideal Reheat Rankine Cycle [Choose] Ideal Regenerative R](http://img.homeworklib.com/questions/de349ce0-fcf0-11ea-aa5f-3f0c9ef0cbea.png?x-oss-process=image/resize,w_560)

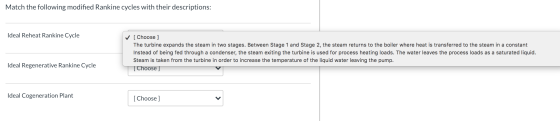

![Match the following modified Rankine cycles with their descriptions: Ideal Reheat Rankine Cycle [Choose] Ideal Regenerative R](http://img.homeworklib.com/questions/deb69f80-fcf0-11ea-abe5-1588a436e323.png?x-oss-process=image/resize,w_560)

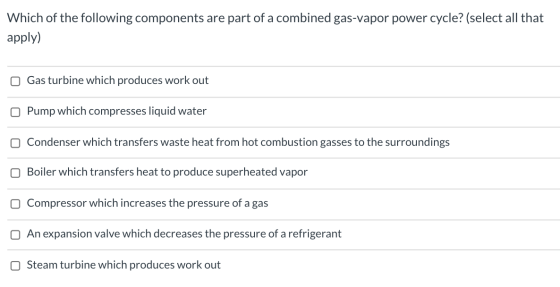

Homework Answers
Add Answer to:

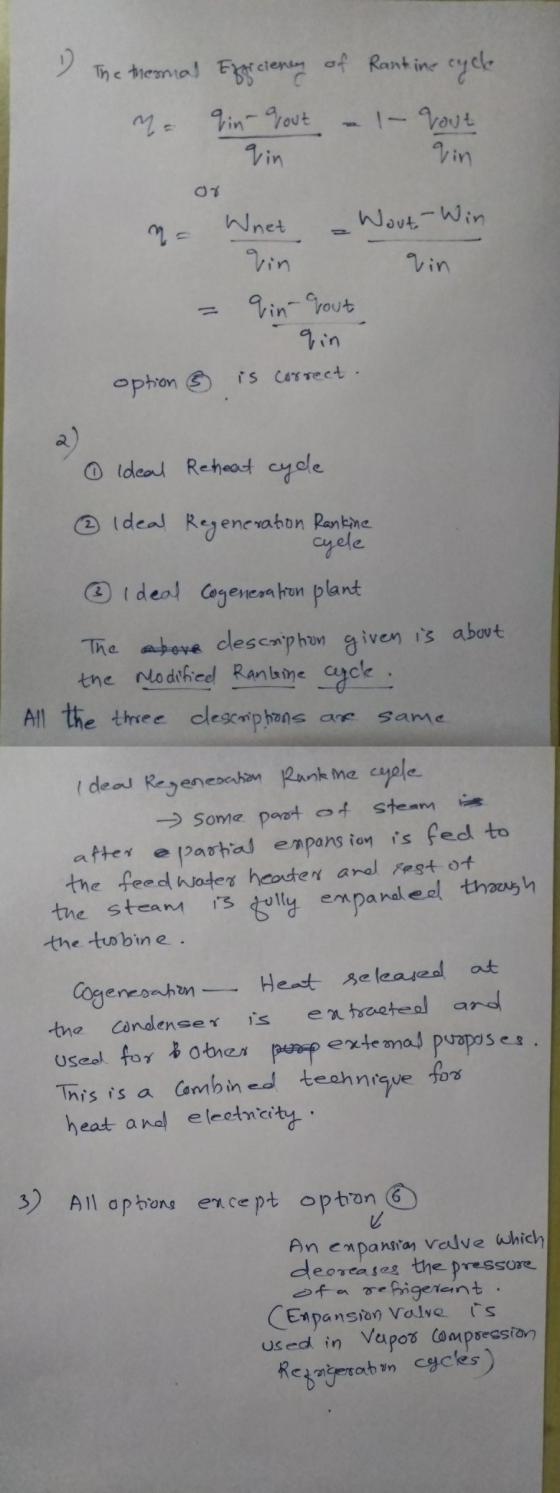

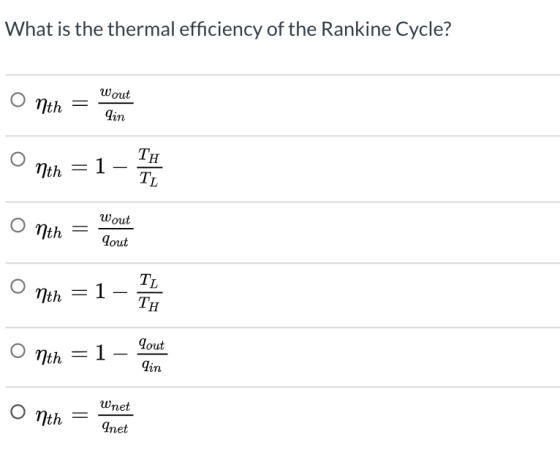

What is the thermal efficiency of the Rankine Cycle? = nth Wout Lin O nth -1...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated...
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram...
Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters...
Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 8 MPa, 480℃, and the condenser pressure is 8 kPa. Steam expands through the first stage turbine to 700 kPa and then is reheated to 480℃. Assumptions: see problem 1 . Determine for the cycle(a) the rate of heat addition, in kJ per kg to the working fluid in the steam generator.(b) the thermal efficiency.(c) the rate of heat transfer from the...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure turbine (HPT) at a pressure of 10 MPa and temperature of 550°C. The steam expands through the HPT stage to a pressure of 0.6 MPa. Some of the steam at the end of the expansion process in HPT is extracted for a regeneration process in a closed-type feedwater heater. The steam leaves the heater as a saturated liquid and then is throttled to the...
Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
Problem 8.021 SI Water is the working fluid in a Rankine cycle with reheat. Superheated vapor...
Problem 8.021 SI Water is the working fluid in a Rankine cycle with reheat. Superheated vapor enters the turbine at 10 MPa, 520°C, and the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa and then is reheated to 520°C. The pump and each turbine stage have an isentropic efficiency of 80%. Determine for the cycle: (a) the heat addition, in kJ per kg of steam entering the first-stage turbine. (b) the percent thermal efficiency....
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to t...
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to the cooling water. A real cycle might cascade the energy down to a lower temperature cycle to utilise some of this exergy (regeneration). It might also use the heat to execute an industrial process (cogeneration). The cycle described below does both! inSeam generator Turbine 1.5 bar H20 cycle To industrial process H2OR-134a heat exchanger Turbine Refrigerant cycle R-134a cycle Pump Condenser Pump Return...
Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the...
Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram and justify the location...
3. A water vapor thermoelectric plant operates in the regenerative Rankine cycle with two open feed...
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s entres the first-stage turbine at a pressure of 14 MPa Each turbine stage has an isentropic efficiency of 90%. The temperature of the inlet vapour is 520°C. The steam expands through the first-stage turbine to a pressure of 0.9MPa where some of the steam is...
Problem 1. (40) Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure turbine (HPT) at a pressure of 10 MPa and temperature of 550°C. The steam expands through the HPT stage to a pressure of 0.6 MPa. Some of the steam at the end of the expansion process in HPT is extracted for a regeneration process in a closed-type feedwater heater. The steam leaves the heater as a saturated liquid and then is throttled to the...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to the cooling water. A real cycle might cascade the energy down to a lower temperature cycle to utilise some of this exergy (regeneration). It might also use the heat to execute an industrial process (cogeneration). The cycle described below does both! inSeam generator Turbine 1.5 bar H20 cycle To industrial process H2OR-134a heat exchanger Turbine Refrigerant cycle R-134a cycle Pump Condenser Pump Return...
Water is the working fluid in an ideal Rankine cycle with reheat. Superheated vapor enters the turbine at 12 MPa, 480 °C and the pressure at the exit of the second stage turbine is 8 kPa. Steam expands through the first stage turbine to 1 MPa and then is reheated to 440 °C. Saturated liquid water leaves the condenser. After the pump, pressure goes back to 12 MPa. Find: (1) Sketch the process on a T-s diagram and justify the location...
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
Water is the working fluid in an ideal regenerative Rankine cycle with one open feed water heater, Figure 2. Upstream of the high pressure turbine superheated vapour with a mass flow rate of 90 kg/s entres the first-stage turbine at a pressure of 14 MPa Each turbine stage has an isentropic efficiency of 90%. The temperature of the inlet vapour is 520°C. The steam expands through the first-stage turbine to a pressure of 0.9MPa where some of the steam is...
