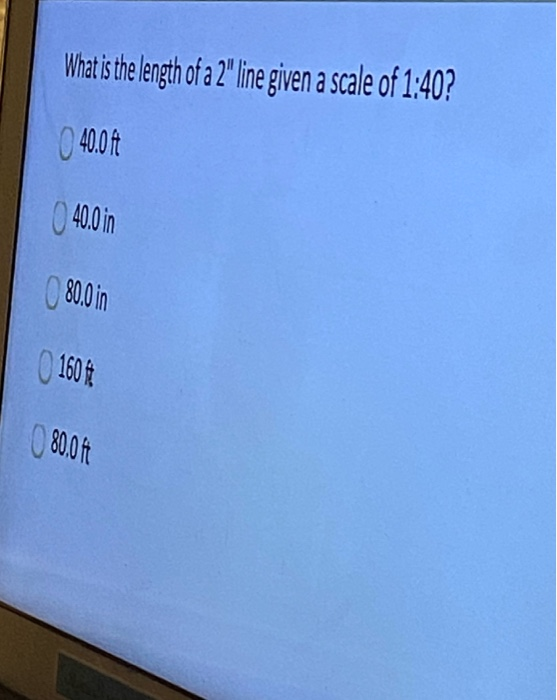

What is the length of a 2" line given a scale of 1:40? 40.07 40.0 in...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

Q) Ans:-

Step1)

According to the given information, it is required to calculate the length.

Length of line= 2"

Scale ratio = 1:40

Step2)

Now we calculate the require length.

Real length = 2 × (40/1)

=80 inches

Step3)

So from above discussion we conclude real length of 80 inches.

So ,the correct option is 3rd option.
