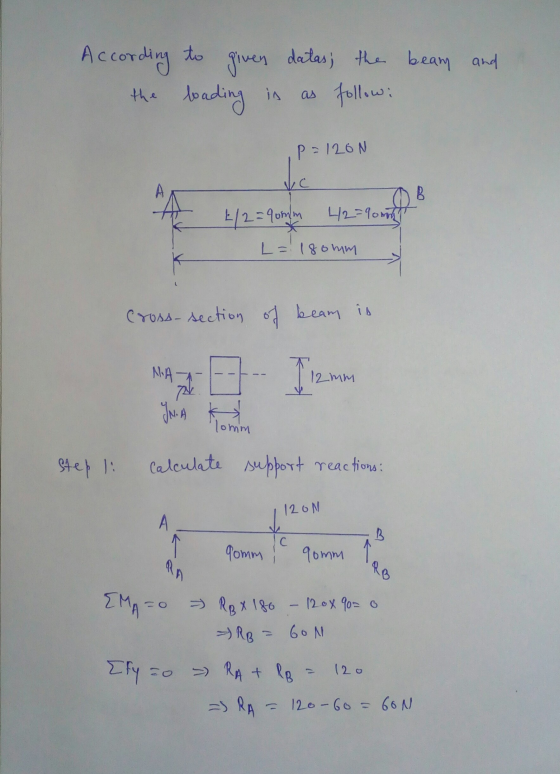

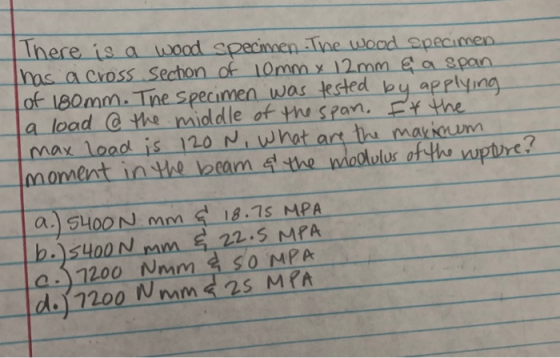

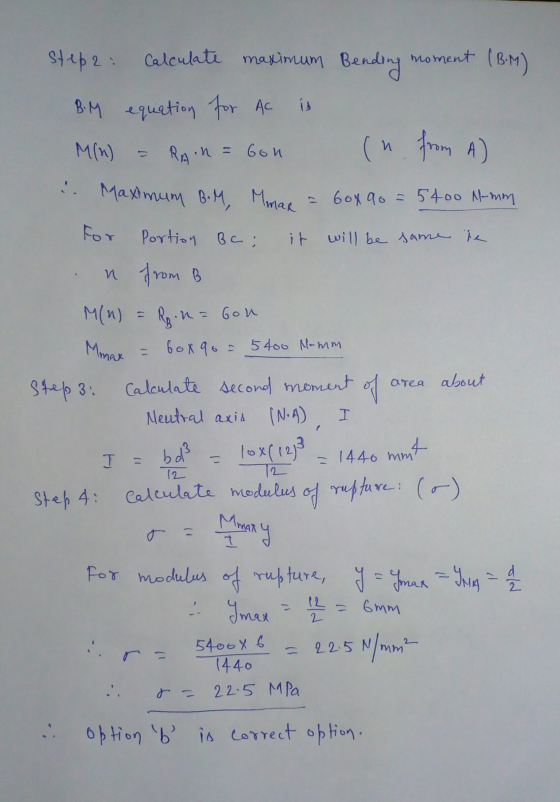

There is a wood specimen. The wood specimen Ihas a cross section of 10mm x 12mm...
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as...
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as indicated) is strengthened at the bottom using 3 steel reinforcement plates of the same 12mm thickness (see figure), perfectly glued to the wooden beam. The modulus of elasticity for wood is E,-12 GPa and for steel E,-200 GPa. Given the allowable stresses (in both tension and compression) for wood ơw-12 MPa and for steel Ơs = 150 MPa, determine the largest possible moment due...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is...
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is pulled in tension with 44,500 N force, producing only elastic deformation. Calculate the resulting strain. Round off the answer to three significant figures. Answer: 1.394e-3 A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa and an original diameter of 10.2 mm experiences only elastic deformation when a tensile load of 8900 N is applied. Compute the maximum length of...
A rectangular cross section at a location along a beam in bending is
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The m...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
Chapter 06, Problem 6.50 A steel alloy specimen having a rectangular cross section of dimensions 19.0...
Chapter 06, Problem 6.50 A steel alloy specimen having a rectangular cross section of dimensions 19.0 mm x 3.2 mm (0.7480 in. x 0.1260 in.) has the stress-strain behavior shown in the Animated Figure. If this specimen is subjected to a tensile force of 100900 N (22680 lbf) then (a) Determine the amount of elastic strain induced. (b) Determine the amount of plastic strain induced. (c) If its original length is 400 mm, what will be its final length after...
Assignment 01 TOT Mechanical Properties of Materials 1. A tensile test specimen has a gage length...
Assignment 01 TOT Mechanical Properties of Materials 1. A tensile test specimen has a gage length = 50 mm and its cross-sectional area = 100 mm. The specimen yields at 48,000 N, and the corresponding gage length - 50.23 mm. This is the 0.2 ent yield point. The maximum load of 87,000 N is reached at a gage length 64.2 mm. Determine (a) yield strength, (b) modulus of elasticity, and (c) tensile strength. (d) If fracture occurs at a gage...
A wood beam (1) is reinforced on its lower surface by a steel plate (2) as...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
The cross-section of an idealized I-section beam has overall dimensions 120 mm x 240 mm deep....
The cross-section of an idealized I-section beam has overall dimensions 120 mm x 240 mm deep. If the web and flange are both 25 mm thick, determine the second moment of area of the section. If the maximum bending stress is limited to 100 MN/m2, determine the maximum load the cross-section can support at mid-span when it is used as a beam 2.5 m long and simply supported at the ends.
please can you solve it as quick as possible. of square cross section is built up by gluing together three strips, each 20 mm x 60 mm in cross section (see figure). The beam has a A l 500 mm. tota...
please can you solve it as quick as possible.
of square cross section is built up by gluing together three strips, each 20 mm x 60 mm in cross section (see figure). The beam has a A l 500 mm. total weight of 5 N and is simply supported with span length L 20 mm 20 mm 60 mm 20 mm 60 mm Considering the weight of the beam (q) calculate the maximum permissible CCW moment M that may be...
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as indicated) is strengthened at the bottom using 3 steel reinforcement plates of the same 12mm thickness (see figure), perfectly glued to the wooden beam. The modulus of elasticity for wood is E,-12 GPa and for steel E,-200 GPa. Given the allowable stresses (in both tension and compression) for wood ơw-12 MPa and for steel Ơs = 150 MPa, determine the largest possible moment due...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is pulled in tension with 44,500 N force, producing only elastic deformation. Calculate the resulting strain. Round off the answer to three significant figures. Answer: 1.394e-3 A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa and an original diameter of 10.2 mm experiences only elastic deformation when a tensile load of 8900 N is applied. Compute the maximum length of...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
Chapter 06, Problem 6.50 A steel alloy specimen having a rectangular cross section of dimensions 19.0 mm x 3.2 mm (0.7480 in. x 0.1260 in.) has the stress-strain behavior shown in the Animated Figure. If this specimen is subjected to a tensile force of 100900 N (22680 lbf) then (a) Determine the amount of elastic strain induced. (b) Determine the amount of plastic strain induced. (c) If its original length is 400 mm, what will be its final length after...
Assignment 01 TOT Mechanical Properties of Materials 1. A tensile test specimen has a gage length = 50 mm and its cross-sectional area = 100 mm. The specimen yields at 48,000 N, and the corresponding gage length - 50.23 mm. This is the 0.2 ent yield point. The maximum load of 87,000 N is reached at a gage length 64.2 mm. Determine (a) yield strength, (b) modulus of elasticity, and (c) tensile strength. (d) If fracture occurs at a gage...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
please can you solve it as quick as possible.
of square cross section is built up by gluing together three strips, each 20 mm x 60 mm in cross section (see figure). The beam has a A l 500 mm. total weight of 5 N and is simply supported with span length L 20 mm 20 mm 60 mm 20 mm 60 mm Considering the weight of the beam (q) calculate the maximum permissible CCW moment M that may be...
