M Procedure i Setup Procedure Table 1 Voltage Generated, v Voltage across R, VR (V) Current...

Question

Question

science physics

Answer 1

Answer #1

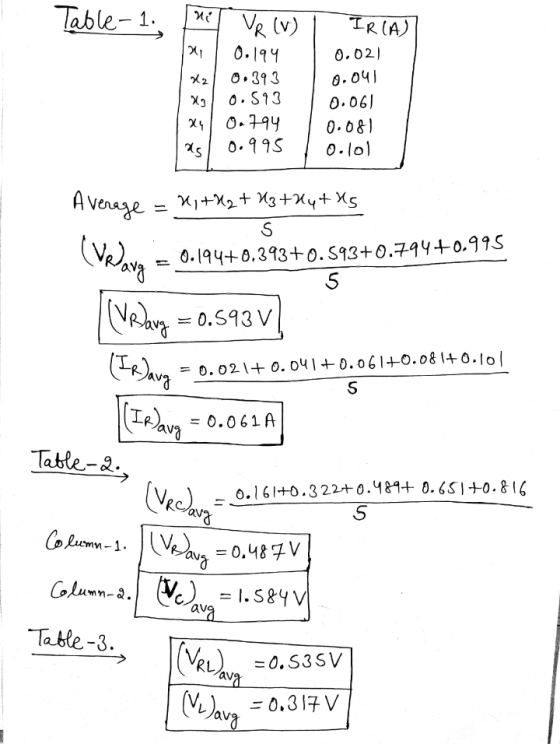

Table-1. ni IR(A) 0.02) 2 VR (V) 0.194 0.393 0.593 0.794 0.995 0.041 0.061 0.08) 0.10) 15 Average (Vedang 21+12+ 13+Xy+ xs S

Answer 2

Similar Homework Help Questions

Procedure Table 1 Voltage Generated, v Voltage across R, VR (V) Current IR, (A) 1 V...

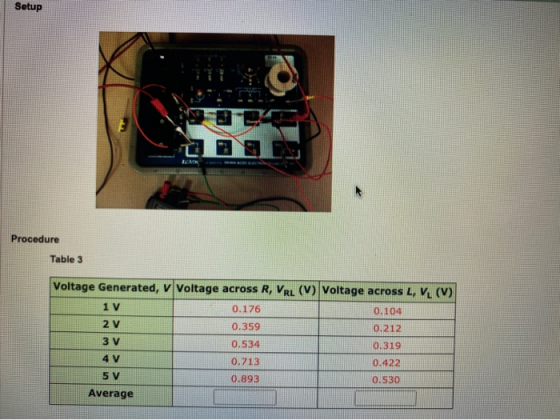

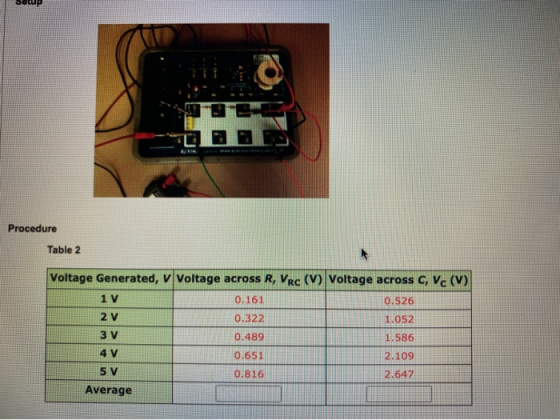

Procedure Table 1 Voltage Generated, v Voltage across R, VR (V) Current IR, (A) 1 V 0.194 0.021 2 V 0.393 0.041 3 V 0.593 0.061 4 V 0.794 0.081 5 V 0.995 0.101 Average 0.593 0.061 Procedure 2 Setup Procedure Procedure 2 Setup Procedure Table 2 Voltage Generated, v Voltage across R, VRC (V) Voltage across C, Vc (V) 1V 0.161 0.526 2 V 0.322 1.052 3 V 0.489 1.586 4 V 0.651 2.109 5 V 0.816 2.647 Average...
The voltage drop (V) across a resister is proportional to the current (I) through the resister. Ohm's Law: V = IR. Wednesday's laboratory expernnent attempts to verify Ohm's Law and...

The voltage drop (V) across a resister is proportional to the current (I) through the resister. Ohm's Law: V = IR. Wednesday's laboratory expernnent attempts to verify Ohm's Law and measure the resistance (R) of a resister Ammeters and voltmeters potentially have offsets, resulting in a constant added to the equation: V = IR + VO If voltage satisfying this equation is plotted against current, the result is a line. With voltage on the y-axis and current on the r-axis,...
