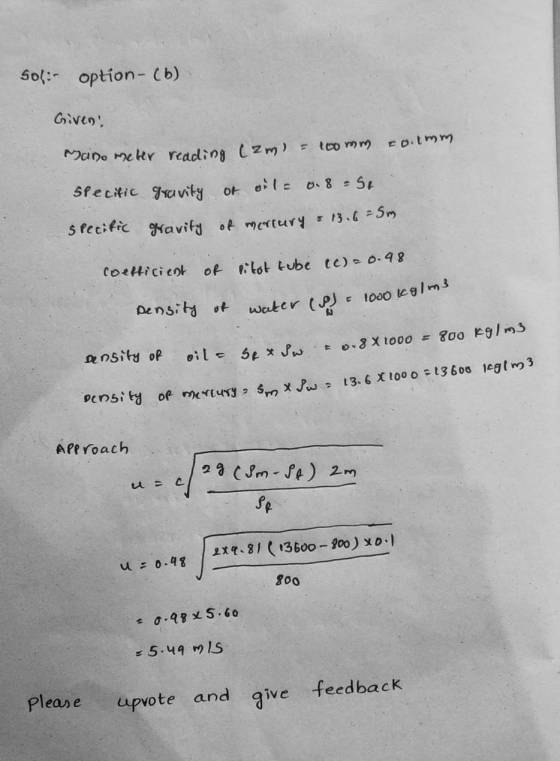

Answer to the same problem available in. Revised Ninth edition of Fluid Mechanics and Hydraulic Machines by R.K.Bansal. You can find it in Chapter6 as an example problem under Pitot Tube topic.
Add Answer to:

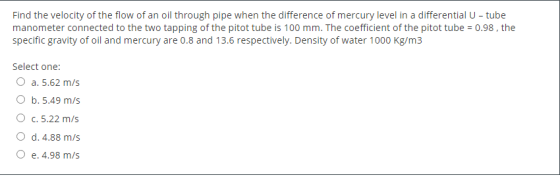

Find the velocity of the flow of an oil through pipe when the difference of mercury...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe,...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
Oil (s = 0.85) is flowing through a pipe from left to right with a mercury...
Oil (s = 0.85) is flowing through a pipe from left to right with a mercury (s = 13.6) manometer attached. The diameter of the pipe at the manometer inlet is 1.0 ft and the diameter of the pipe at the manometer outlet is 0.5 ft. The manometer reads 6 inches. What is the pressure drop across the manometer in psi?
A vertical venturi-meter is connected to a vertical pipe which carries water as shown in the...
A vertical venturi-meter is connected to a vertical pipe which carries water as shown in the figure. the diameters at the entrance and throat are 150 mm and 75 mm, respectively. The the mercury (specific gravity +13.6). U-tube mercury manometer connected to the entrance and throat of the meter . the height difference between the throat and entrance is 150mm.If the actual rate is 40 liters/s and the coefficient of discharge is 0.96, calculate (a) the pressure difference between entrance and...
Pipe A contains gasoline(SG=0.70) , pipe B contains oil(SG=0.90), and the manometer fluid is mercury. Determine...
Pipe A contains gasoline(SG=0.70) , pipe B contains
oil(SG=0.90), and the manometer fluid is mercury. Determine the new
differential reading if the pressure in pipe A is decreased 25 kPa,
and the pressure in pipe B remains constant. The initial
differential reading is 0.30 m as shown. Use unit weight of water =
9810 N/m3
0.4 m Oil 0.3 m , Merc Gasoline?
A venturi meter with a diameter of 30 cm at the entrance and 15 cm at...
A venturi meter with a diameter of 30 cm at the entrance and 15
cm at the throat, is connected to a vertical pipe of diameter 30cm
carrying oil of specific gravity 0.9. The difference in elevation
of the throat section and the entrance of the venturi meter is 30
cm. The mercury manometer shows a gauge deflection of x =
1000mm.
Determine
1) the discharge of oil; and
2) the pressure difference between the entrance section and
throat section....
Ethanol at 20C flows at a velocity of 6 m/s through a mesh screen located in...
Ethanol at 20C flows at a velocity of 6 m/s through a mesh
screen located in a pipe, as shown below. A mercury U-tube
manometer (SG = 13.6) is used to measure the pressure drop across
the screen. The indicated deflection is 15 cm. Determine the loss
coefficient for the screen.
Ethanol at 20°C flows at a velocity of 6 m/s through a mesh screen located in a pipe, as shown below. A mercury U-tube manometer (SG = 13.6) is...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer (a device for detecting pressure differences) that is attached to a pipe along which water is flowing from left to right. The water pipe has a circular cross-section. At A the diameter of the water pipe is 5.6 cm and the speed of the water is 2.80 m/s. At B the diameter of the pipe is 3 cm. The fluid in the manometer is...
Venturi meter provided in a vertical pipeline carries oil of specific gravity 0.88 as shown in...
Venturi meter provided in a vertical pipeline carries oil of specific gravity 0.88 as shown in the Figure below. The diameter at the entrance and throat are 30 cm and 15 cm, respectively. A U-tube manometer filled with mercury of density 13600kg/m3 is connected to the entrance and throat of the meter . The height difference between the throat and entrance is 30cm. if the actual flow rate is 80 L/s and the coefficient of discharge of the meter is...
A pitot tube is used to measure the velocity of an air stream. The air has...
A pitot tube is used to measure the velocity of an air stream. The air has a temperature of 18°C and a pressure of 105 kPa 12 mm Hg If the differential height in a mercury manometer is 12 mm and the air is incompressible, the air velocity is most nearly (A) 38 m/'s o (B) 43 m/s (C) 48 ms (D) 50ms
8. (i0 points) A manometer tube which contains mercury (Figure on the right) is used to...
8. (i0 points) A manometer tube which contains mercury (Figure on the right) is used to measure the pressure PA in the air pipe. Determine the gage pressure PA is the specific gravity of mercury SGug 13.6. The right side if the barometer is open to ambient air. Air pipe 3 m Hg 9. (10 points) When a body is accelerated under water, some of the water is also accelerated. This makes the body appear to have a larger mass...
(c) Fuel oil, with a density of 870 kg m-, is pumped through a horizontal pipe, as shown in Figure Q2.2. The pipe is 100 mm in diameter and contains an orifice plate with a throat diameter of 40 mm. The pressure drop across the orifice is measured on a U-tube manometer, containing mercury with a specific gravity 13.6. The difference in levels of the columns is measured as 45 mm. The coefficient of discharge for the orifice plate Ca...
Pipe A contains gasoline(SG=0.70) , pipe B contains
oil(SG=0.90), and the manometer fluid is mercury. Determine the new
differential reading if the pressure in pipe A is decreased 25 kPa,
and the pressure in pipe B remains constant. The initial
differential reading is 0.30 m as shown. Use unit weight of water =
9810 N/m3
0.4 m Oil 0.3 m , Merc Gasoline?
A venturi meter with a diameter of 30 cm at the entrance and 15
cm at the throat, is connected to a vertical pipe of diameter 30cm
carrying oil of specific gravity 0.9. The difference in elevation
of the throat section and the entrance of the venturi meter is 30
cm. The mercury manometer shows a gauge deflection of x =
1000mm.
Determine
1) the discharge of oil; and
2) the pressure difference between the entrance section and
throat section....
Ethanol at 20C flows at a velocity of 6 m/s through a mesh
screen located in a pipe, as shown below. A mercury U-tube
manometer (SG = 13.6) is used to measure the pressure drop across
the screen. The indicated deflection is 15 cm. Determine the loss
coefficient for the screen.
Ethanol at 20°C flows at a velocity of 6 m/s through a mesh screen located in a pipe, as shown below. A mercury U-tube manometer (SG = 13.6) is...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer (a device for detecting pressure differences) that is attached to a pipe along which water is flowing from left to right. The water pipe has a circular cross-section. At A the diameter of the water pipe is 5.6 cm and the speed of the water is 2.80 m/s. At B the diameter of the pipe is 3 cm. The fluid in the manometer is...
A pitot tube is used to measure the velocity of an air stream. The air has a temperature of 18°C and a pressure of 105 kPa 12 mm Hg If the differential height in a mercury manometer is 12 mm and the air is incompressible, the air velocity is most nearly (A) 38 m/'s o (B) 43 m/s (C) 48 ms (D) 50ms
8. (i0 points) A manometer tube which contains mercury (Figure on the right) is used to measure the pressure PA in the air pipe. Determine the gage pressure PA is the specific gravity of mercury SGug 13.6. The right side if the barometer is open to ambient air. Air pipe 3 m Hg 9. (10 points) When a body is accelerated under water, some of the water is also accelerated. This makes the body appear to have a larger mass...
