Question

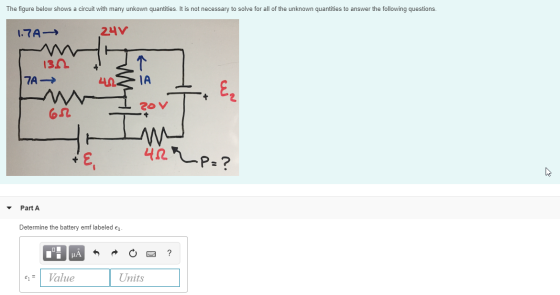

The figure below shows a circuit with many unkown quantities. It is not necessary to solve for all of the unknown quantitiesPart B Determine the power dissipated as heat in the 412 on the lower right and indicated in the figure. НА ? P = Value Units

0 0
Add a comment Improve this question Transcribed image text
Answer #1

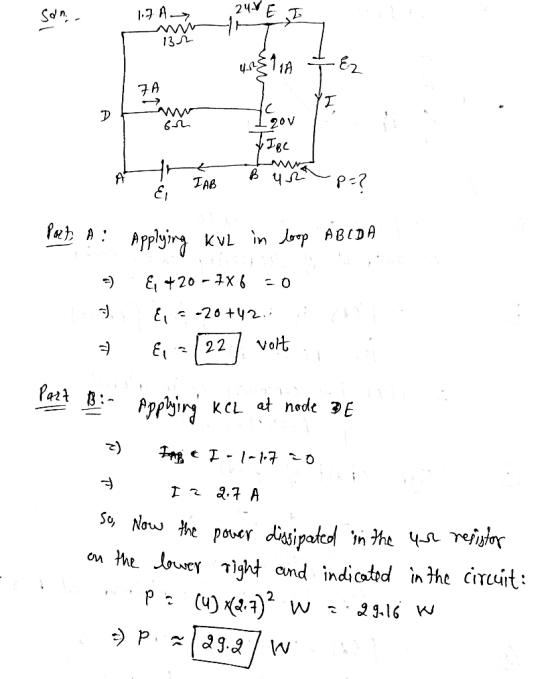

Sdn. 1.7 A 24V E I 13.12 ya $110 . Ez 7A I D C -20V TIBC + TAB Ча የ-? E Pasta A: Applying KvL in loop A BIDA E; +20 -7X 6 -0

Add a comment
Know the answer?
Add Answer to:
The figure below shows a circuit with many unkown quantities. It is not necessary to solve...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • The figure below shows a circuit with many unkown quantities. It is not necessary to solve...

    The figure below shows a circuit with many unkown quantities. It is not necessary to solve for all of the unknown quantities to answer the following questions. 1.7A 24V mo 131 7A 42 IA 4 E, 6.52 ov In + E, યદ .. Pa? Part A Determine the battery emf labeled €1. PE μΑ ? E1 = Value Units Submit Request Answer Part B Determine the power dissipated as heat in the 41 on the lower right and indicated in...

  • The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The...

    The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The bar is free to slide along the wires but its orientation is fixed by the attachments. The bar is pulled by an external force at a constant velocity along the wires in the presence of a B = 2.60 T magnetic field which points into the screen. The parallel wires are connected to a R = 24.0 12 resistor and the bar makes an...

  • The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The...

    The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The bar is free to slide along the wires but its orientation is fixed by the attachments. The bar is pulled by an external force at a constant velocity along the wires in the presence of a B = 1.70 T magnetic field which points into the screen. The parallel wires are connected to a R = 22.0 12 resistor and the bar makes an...

  • The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially...

    The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially open. The equivalent capacitance of the three capacitors is Ceq = 8 mF where Ci = 18.0 mF, C3 = 5.0 mF and C2 is unknown. The inductance of the solenoid is L = 32.0 uH . Initially, the potential of point a is 16.0 V greater than at point b. Ci cs helllllll C, b Part A Determine the capacitance C2. μΑ ?...

  • The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially...

    The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially open. The equivalent capacitance of the three capacitors is Ceq = 8 mF where G = 18.0 mF, C3 = 5.0 mF and C is unknown. The inductance of the solenoid is L = 32.0 pH. Initially, the potential of point a is 14.0 V greater than at point b. cs llllllll b Part A Determine the capacitance C2 μΑ Value Units Part B...

  • The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The...

    The figure below shows a 50 cm long bar attached to ideal frictionless parallel wires. The bar is free to slide along the wires but its orientation is forced by the attachments. The bar is pulled by an external force at a constant velocity along the wires in the presence of a B - 3.10 T magnetic field which points into the screen. The parallel wires are connected to a R-28.01 resistor and the bar makes an angle of @=...

  • The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially...

    The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially open. The equivalent capacitance of the three capacitors is Ceq = 9 mF where C1 = 18.0 mF, C3 = 5.0 mF and C2 is unknown. The inductance of the solenoid is L = 34.0 pH . Initially, the potential of point a is 17.0 V greater than at point b. Ci llllllll C2 Part A Determine the capacitance C2. HA ? C2= Value...

  • The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially...

    The figure below shows 3 charged capacitors connected to a long solenoid with the switch initially open. The equivalent capacitance of the three capacitors is Сeg = 9 mF where C = 19.0 mF, C3 = 5.0 mF and C2 is unknown. The inductance of the solenoid is L = 39.0 pH. Initially, the potential of point a is 14.0 V greater than at point b. llllllll cs Part A Determine the capacitance C2 HA ? Value Units Submit Request...

  • Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Re...

    Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Resistor Ra Ia Figure 5: Simplified model of DC Motor (a) Write the three characteristic equations that determine the behavior of the DC motor. Denote torque constant and speed constant as Ka, K, respectively. (b) Motor parameters are the quantities that define the behavior of the motor. List the motor parameters from the described model. What are their units? (c) For given...
