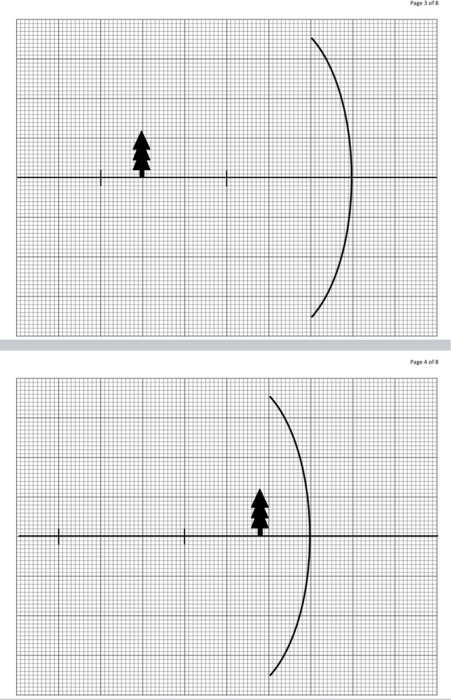

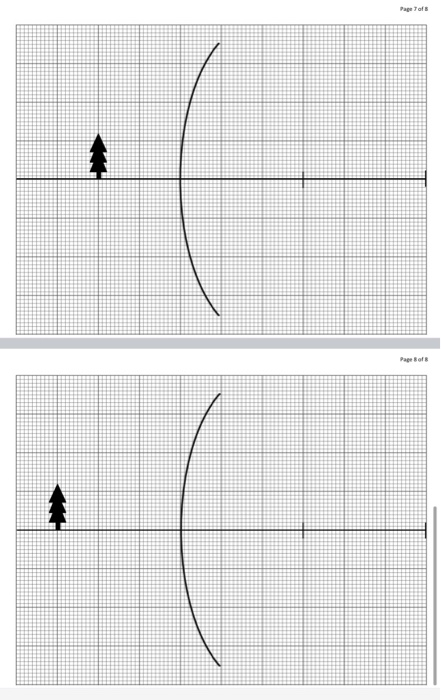

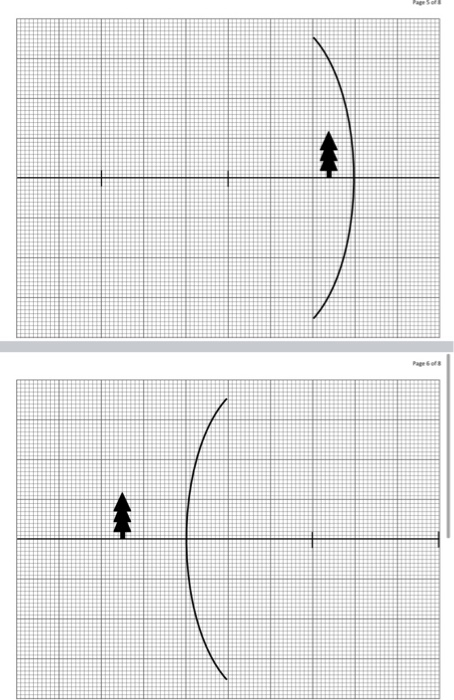

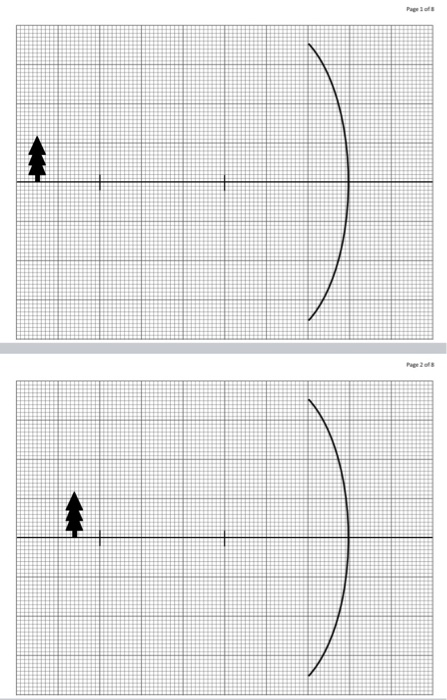

1. Complete the ray tracings of the objects reflected by the mirrors


1 6 4


Pape of Page of

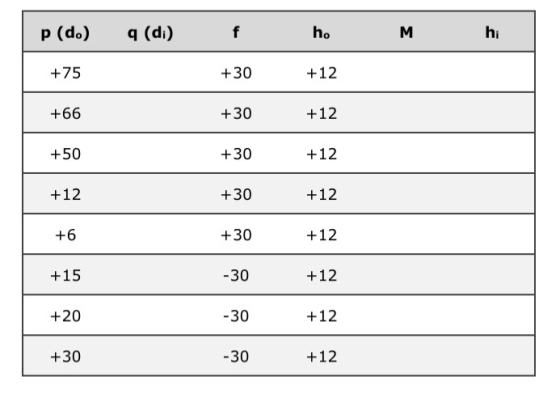

2. Complete the table by calculating the position of the image for the object position given. Use unit of grid squares

p (d.) q (di) f h. M hi +75 +30 +12 +66 +30 +12 + 50 +30 +12 +12 +30 +12 +6 +30 +12 +15 -30 +12 +20 -30 +12 +30 -30 +12
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

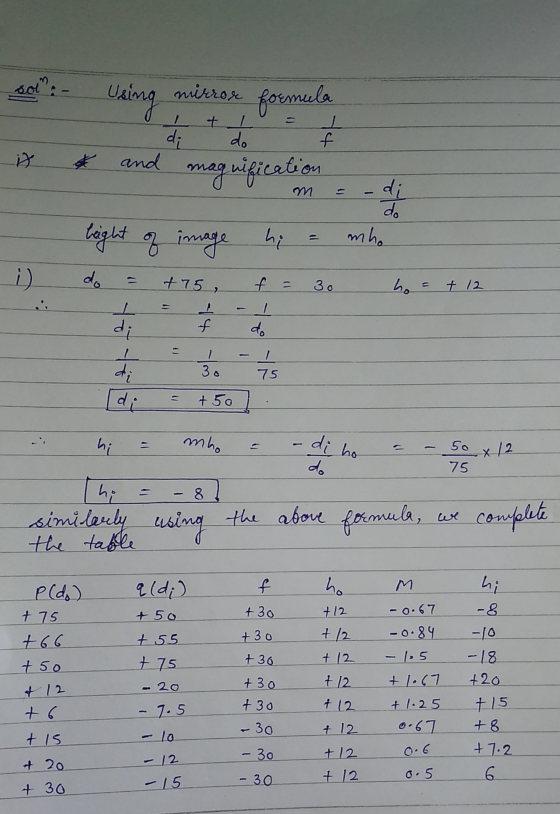

Answer #1

0 0
Add a comment
