Homework Answers
Add Answer to:

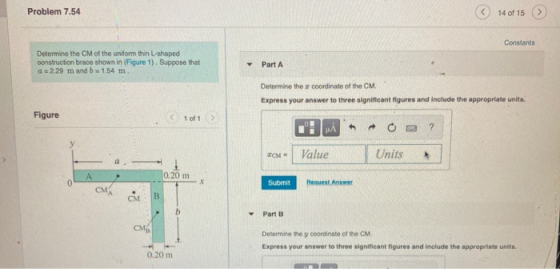

Problem 7.54 14 of 15 Constants Determine the CM of the uniform thin L-shaped construction brace...
Part A Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1)....

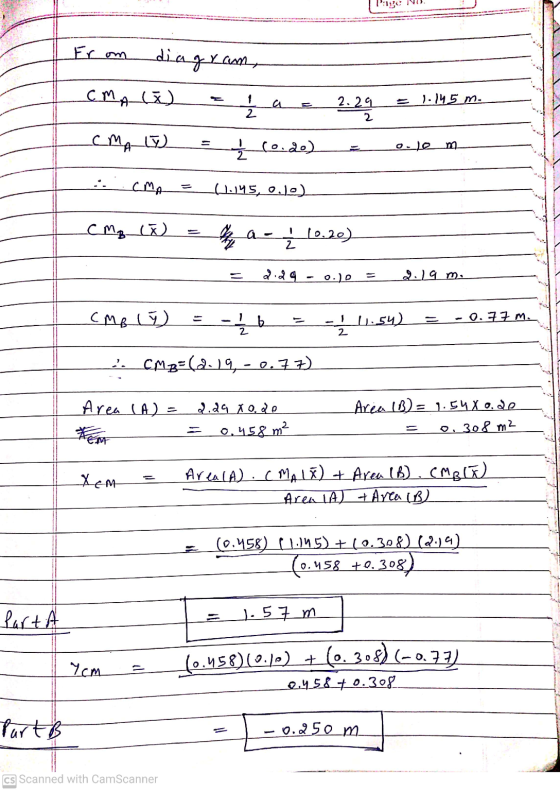

Part A Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1). Suppose that a = 2.18 m and b = 1.60 m. Determine the x coordinate of the CM. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 μΑ ? y XCM = Value Units a 0.20 m Submit Request Answer A 0 СМ, CM B Part B b CMB Determine the y coordinate of the CM....
Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1). Suppose that...
Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1). Suppose that a = 2.11 m and b = 1.57 m. Figure << 1 of 1 a- A , 0.20 m 04 CM CM CM Part A Determine the x coordinate of the CM. Express your answer to three significant figures and include the appropriate units. ? .: Å Value o Units ICM = Submit Request Answer Part B Determine the y coordinate of the CM....
Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1) . Suppose...
Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1) . Suppose thata = 2.21 m and b = 1.50 m . Part A Determine the x coordinate of the CM. Express your answer to three significant figures and include the appropriate units. xCM = Part B Determine the y coordinate of the CM. Express your answer to three significant figures and include the appropriate units. yCM =
ID-108981315 Phys 121 Spring 2019 gharam
please can anyone help me
?
ID-108981315 Phys 121 Spring 2019 gharam
Part A Determine the magnitude of the resultant force. Express your answer to three significant figures...
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine coordinate direction angle α of the resultant
force.
Express your answer to three significant figures and include the
appropriate units.
Part C
Determine coordinate direction angle β of the resultant
force.
Express your answer to three significant figures and include the
appropriate units.
Part D
Determine coordinate direction angle γ of the resultant
force.
Express your...
Problem 29.29 Calculate the induced em Constants I Periodic Table Express your answer to two significant...
Problem 29.29 Calculate the induced em Constants I Periodic Table Express your answer to two significant figures and include the appropriate units In the figure, the rod moves to the right with a speed of 1.2 m/s and has a resistance of 2.4 1.(Figure 1) The rail separation is 25.0 Cm. The magnetic fiold is 0.38 T, and the resistance of the U-shaped conductor is 25.5 17 at a given instant e Value Units Submit Request Answer Part B Caloulate...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determi...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determine the location of the center of mass G of the pendulum. Express your answer to three significant figures and include the appropriate units Figure fj- 10.82? 1 of 1 You have already submited this answer Enter a new answer...
Problem 4.94 Constants PartA Two blocks made of different materials, connected by a thin cord, slide...
Problem 4.94 Constants PartA Two blocks made of different materials, connected by a thin cord, slide down a plane ramp inclined at an angle 6 to the horizontal, (Figure 1). The masses of the blocks are mA m B-7.7 kg , and the coefficients of friction are μΑ-0.25 and μΒ.0.31, the angle e» 32° Determine the acceleration of the blocks Express your answer to two significant figures and include the appropriate units. a 1.91 Submit Previous Answers Request Answer X...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
Problem 7.62 15 of 15 Constants A mallet consists of a uniform cylindrical head of mass...
Problem 7.62 15 of 15 Constants A mallet consists of a uniform cylindrical head of mass 2.75 kg and a diameter 0.0800 m mounted on a uniform cylindrical handle of mass 0.550 kg and length 0.240 m, as shown in (Figure 1). Part A If this mallet is tossed, spinning into the air, how far above the bottom of the handle is the point that will follow a parabolic trajectory? Express your answer to three significant figures and include the...
Part A Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1). Suppose that a = 2.18 m and b = 1.60 m. Determine the x coordinate of the CM. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 μΑ ? y XCM = Value Units a 0.20 m Submit Request Answer A 0 СМ, CM B Part B b CMB Determine the y coordinate of the CM....
Determine the CM of the uniform thin L-shaped construction brace shown in (Figure 1). Suppose that a = 2.11 m and b = 1.57 m. Figure << 1 of 1 a- A , 0.20 m 04 CM CM CM Part A Determine the x coordinate of the CM. Express your answer to three significant figures and include the appropriate units. ? .: Å Value o Units ICM = Submit Request Answer Part B Determine the y coordinate of the CM....
please can anyone help me
?
ID-108981315 Phys 121 Spring 2019 gharam
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine coordinate direction angle α of the resultant
force.
Express your answer to three significant figures and include the
appropriate units.
Part C
Determine coordinate direction angle β of the resultant
force.
Express your answer to three significant figures and include the
appropriate units.
Part D
Determine coordinate direction angle γ of the resultant
force.
Express your...
Problem 29.29 Calculate the induced em Constants I Periodic Table Express your answer to two significant figures and include the appropriate units In the figure, the rod moves to the right with a speed of 1.2 m/s and has a resistance of 2.4 1.(Figure 1) The rail separation is 25.0 Cm. The magnetic fiold is 0.38 T, and the resistance of the U-shaped conductor is 25.5 17 at a given instant e Value Units Submit Request Answer Part B Caloulate...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determine the location of the center of mass G of the pendulum. Express your answer to three significant figures and include the appropriate units Figure fj- 10.82? 1 of 1 You have already submited this answer Enter a new answer...
Problem 4.94 Constants PartA Two blocks made of different materials, connected by a thin cord, slide down a plane ramp inclined at an angle 6 to the horizontal, (Figure 1). The masses of the blocks are mA m B-7.7 kg , and the coefficients of friction are μΑ-0.25 and μΒ.0.31, the angle e» 32° Determine the acceleration of the blocks Express your answer to two significant figures and include the appropriate units. a 1.91 Submit Previous Answers Request Answer X...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
Problem 7.62 15 of 15 Constants A mallet consists of a uniform cylindrical head of mass 2.75 kg and a diameter 0.0800 m mounted on a uniform cylindrical handle of mass 0.550 kg and length 0.240 m, as shown in (Figure 1). Part A If this mallet is tossed, spinning into the air, how far above the bottom of the handle is the point that will follow a parabolic trajectory? Express your answer to three significant figures and include the...
