4 A galvanometre of 25r resistance can sately carry a current of 1 miliamp. Calaware the...

Question

Question

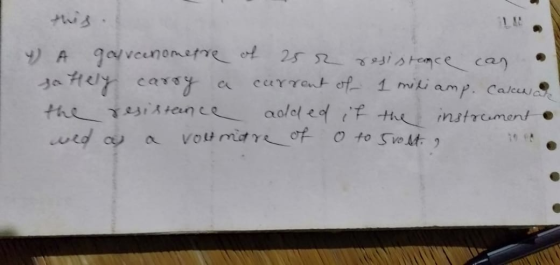

4 A galvanometre of 25r resistance can sately carry a current of 1 miliamp. Calaware the resistance added it the instrument w

science physics

Answer 1

Answer #1

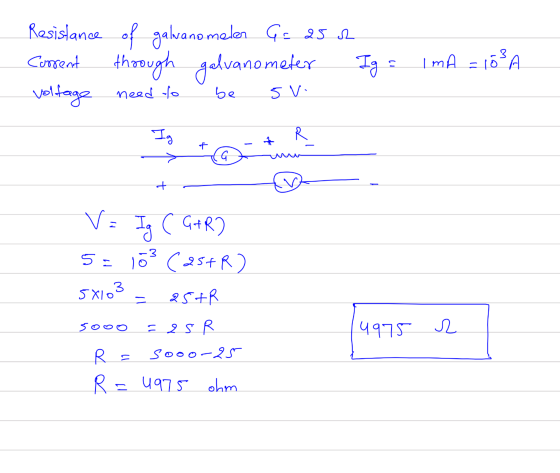

Resistance of galvanomelen G. 25 oh Current through galvanometer Ig = voltage need to ImA = 103A be 5v. Ig R f G t V = Ig ( G

4975 ohm is required to connect in series for getting 0to 5 V. Voltmeter.

Thanks for asking.
