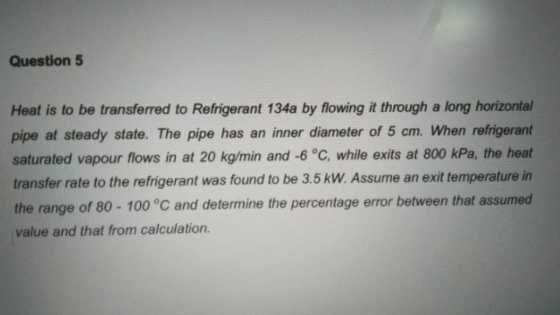

Question 5 Heat is to be transferred to Refrigerant 134a by flowing it through a long horizontal pipe at steady state. The pi

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

property table R-134 a refrigerant Also We will need 800 KP for this 20kg/min table) ART b/w 800kpa supern table 3,5 kW ort.r

At 800kPa (Tsat = = 31.8c.) and we got h satulated vapour - 267.3 kiling kjling h₂=256.5 which is less than a 267. 3 kg / kg

Add a comment

Answer 2

Similar Homework Help Questions

Question 5 Heat is to be transferred to Refrigerant 134a by flowing it through a long...

Question 5 Heat is to be transferred to Refrigerant 134a by flowing it through a long horizontal pipe at steady state. The pipe has an inner diameter of 5 cm. When refrigerant saturated vapour flows in at 20 kg/min and -6 °C, while exits at 800 kPa, the heat transfer rate to the refrigerant was found to be 3.5 kW. Assume an exit temperature in the range of 80 - 100 °C and determine the percentage error between that assumed...
Question 4 Liquid water enters a feedwater heater at inlet 1 with inlet conditions 15 MPa,...

Question 4 Liquid water enters a feedwater heater at inlet 1 with inlet conditions 15 MPa, 40°C at 60 kg/s. Another stream of water in saturated mixture enters the heater at inlet 2 at temperature of 175 °C. The heater operates at steady state and heat transfer to surrounding can be neglected. At exit 3, saturated liquid flows out at 275 kPa. Select two (2) different values of mixture quality at inlet 2 between 0.5 and 0.8, and subsequently plot...
Refrigerant 134a enters a horizontal pipe operating at steady state at 50°C, 450 kPa and a...

Refrigerant 134a enters a horizontal pipe operating at steady state at 50°C, 450 kPa and a velocity of 56.9 m/s. At the exit, the temperature is 60 °C and the pressure is 220 kPa. The pipe diameter is 0.03 m. Determine the rate of heat transfer between the pipe and its surroundings, in kW

5. A pipe with a 2 cm diameter has R-134a flowing through it with an average...

5. A pipe with a 2 cm diameter has R-134a flowing through it with an average velocity of 3 m/s. It is a saturated liquid at 6 bar. The pipe flows into a heating chamber, which has an exit pipe that is 4 cm in diameter. The R-134a in the exit pipe is a saturated vapor, still at 6 bar. What is the average velocity in the exit pipe, assuming the system is at steady state? Answer: Over 30 m/s....
6. Refrigerant-134a enters an adiabatic compressor as saturated vapor at 100 kPa at a rate of...

6. Refrigerant-134a enters an adiabatic compressor as saturated vapor at 100 kPa at a rate of 0.7 m3/min and exits at 1 MPa pressure. If the isentropic efficiency of the compressor is 87%, determine (a) the temperature of the refrigerant at the exit of the compressor, (b) the power input (in kW), and (c) the rate of entropy generation during this process.
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/...

A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/kg and a mass flow rate of 0.1 kg/s. At the exit, the specific enthalpy is 1,531 kJ/kg. If there is no significant change in kinetic energy from inlet to exit, determine the rate of heat transfer between the pipe and its surroundings, in kW. B) Refrigerant 134a enters a horizontal pipe operating at steady state at 40°C, 3.1 bar and a velocity of...

Refrigerant-134a enters the condenser of a residential heat pump at 800 kPa and 35°C at a...

Refrigerant-134a enters the condenser of a residential heat pump at 800 kPa and 35°C at a rate of 0.018 kg/s and leaves at 800 kPa as a saturated liquid. If the compressor consumes 1.2 kW of power, determine (a) the COP of the heat pump and (b) the rate of heat absorption from the outside air.
An ideal vapor-compression refrigerant cycle operates at steady state with Refrigerant 134a as the working fluid....

An ideal vapor-compression refrigerant cycle operates at steady state with Refrigerant 134a as the working fluid. Saturated vapor enters the compressor at -10°C, and saturated liquid leaves the condenser at 28°C. The mass flow rate of refrigerant is 5 kg/min. Determine (a) The compressor power, in kW (b) The refrigerating capacity, in tons. (c) The coefficient of performance. Sketch the system on a T-s diagram with full label. A vapor-compression heat pump with a heating capacity of 500 kJ/min is...
Refrigerant 134a flows through an ideal vapor compression heat pump system with a heating capacity of...

Refrigerant 134a flows through an ideal vapor compression heat pump system with a heating capacity of 60,000 Btu/hr. The condenser operates at 200 psi, and the evaporator temperature is 0°F. The refrigerant is a saturated vapor at the evaporator exit and a saturated liquid at the condenser exit. The temperature at the compressor exit is 180°F. Assuming the compressor is not 100% isentropic, determine: a) Mass flow rate (lbm/min) b) Compressor power (hp) c) Isentropic compressor efficiency d) Coefficient of...

Problem 2 Let's consider a single-stream problem with a 28-cm diameter pipe where Refrigerant R-134a flows...

Problem 2 Let's consider a single-stream problem with a 28-cm diameter pipe where Refrigerant R-134a flows steadily at 200 kPa and 20°C with a velocity of 5 m/s. The refrigerant undergoes a heating process, and leaves at 180 kPa and 40 degrees C 0 R-134a 200 kPa 20°C 5 m/s 180 kPa 40°C 10.2. A. Is this a steady-flow process? Check all that apply. □ Yes, nothing else is mentioned and we need to make this assumption to proceed with...
