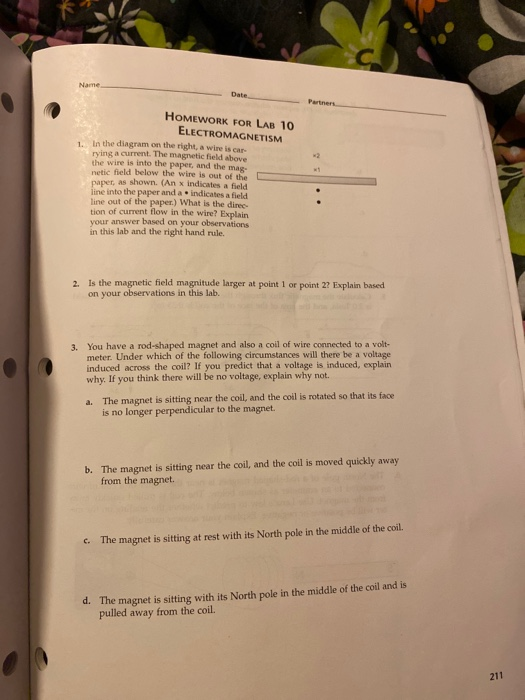

Homework Answers
1.) The direction of current in the wire is from right to left. This is according to the right hand rule.
2.) Magnetic field around a current carrying wire is inversely proportional to the distance of point from the wire where magnetic field is calculated.
Hence, magnetic field magnitude will be larger at point 1 because it is closer to the wire than point 2.
3.)
(a.) Voltage will be induced a Ross the coil.
This is because when the coli is rotated, the magnetic flux through the coil changes. Hence, emf (voltage) will be induced.
(b.) Voltage will be induced in the coil.
When the coil is moved quickly away from the magnet the magnetic flux through the coil changes because magnetic field is inversely proportional to the distance from the magnet. Hence, voltage will be induced.
(c.) Voltage will not be induced in the coil.
Since the magnet is sitting at rest inside the coil, the magnetic flux through the coil will not change. Hence, voltage will not be induced.
(d.) Voltage will be induced in the coil.
When the magnet is pulled away from inside the coil, the magnetic flux through the coil will change. Hence, voltage will be induced in the coil.
.
