5. A long solid right circular cylinder of radius carries a current I, which is uniformly...
5. A long solid right circular cylinder of radius R carries a current I, which is...

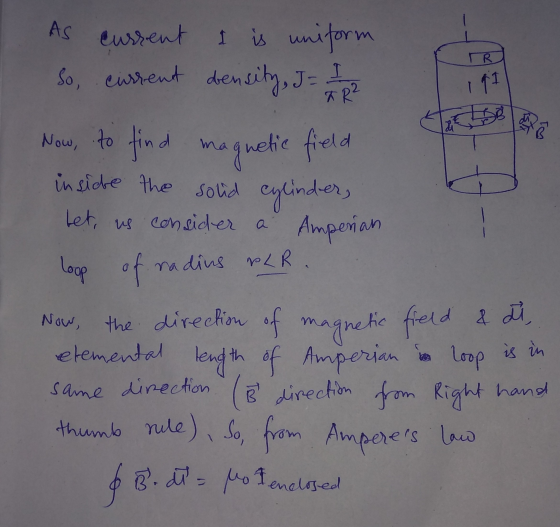

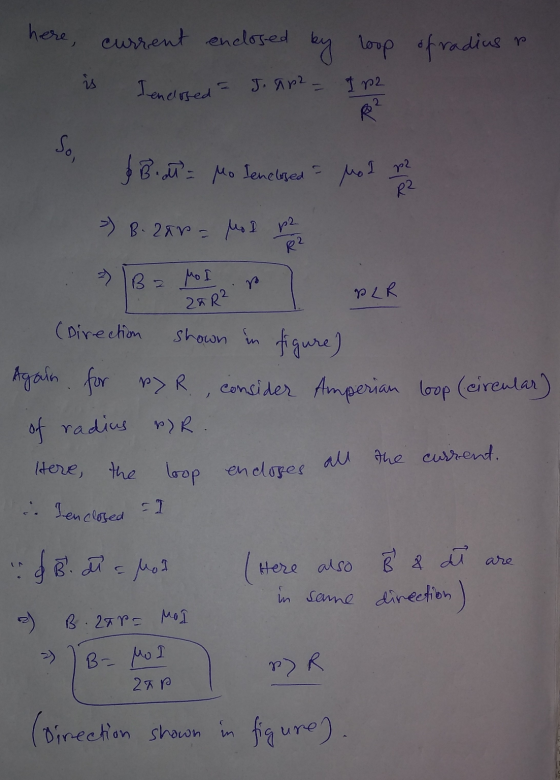

5. A long solid right circular cylinder of radius R carries a current I, which is uniformly distributed. Find the magnetic field everywhere, both inside and outside the cylinder.
only 5 hos 5. A long solid right circular cylinder of radius R carries a current...
only 5
hos 5. A long solid right circular cylinder of radius R carries a current I, which is uniformly distributed. Find the magnetic field everywhere, both inside and outside the cylinder. 6. A long solenoid of area A = TtR,? and turns per unit length n carries a current i = lycoswt. Find the electric field at a distance r from the axis of the solenoid. Distinguish between the cases r > R: and r < Rs. 7. A...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization M ksp, where k is a constant, s is the distance from the axis, and ф is the azimuthal unit vector. a) Use ф H- dl = hemet to determine the auxiliary field (H field) both inside and outside of the cylinder b) use H = (110)2-M to determine the magnetic field (B-field) both inside and outside of the cylinder
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its...
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its length. The current is uniformly distributed over the cross-sectional area of the cylinder and has current density J. 1. Find the magnetic-field magnitude B as a function of the distance r from the conductor axis for points inside the hollow interior (r<R1). Express your answer in terms of the variables R1, R2, J, and r. 2. Find the magnetic-field magnitude B as a function...
In the figure below, a long circular pipe with outside radius R2.42 cm carries a (uniformly distr...
In the figure below, a long circular pipe with outside radius R2.42 cm carries a (uniformly distributed) current i 11.3 mA into the page. A wire runs parallel to the pipe at a distance of 3.00R from center to center. Find the (a) magnitude and (b) direction (into or out of the page) of the current in the wire such that the ratio of the magnitude of the net magnetic field at point P to the magnitude of the net...
6. A long straight wire with circular cross section and radius 1.5 cm carries a 1.2...
6. A long straight wire with circular cross section and radius 1.5 cm carries a 1.2 A current uniformly distributed throughout the wire. a) What is the current density in the wire? b) What is the magnetic field as a function of r at a point inside the wire? c) What is the magnetic field as a function of r at a point outside the wire?
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id....
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id. Using Ampere's law, find the magnetic field intensity ll inside the cylinder. Assume the magnetic field ii - 0 outside the cylinder.
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and...
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and is given by M = ksi, where k is a constant and s is the distance from the axis. There is no free current anywhere. Find the magnetic field inside and outside the cylinder.
In the figure below, a long circular pipe with outside radius R = 2.76 cm carries...
In the figure below, a long circular pipe with outside radius
R = 2.76 cm carries a (uniformly distributed) current
i = 10.3 mA into the page. A wire runs parallel to the
pipe at a distance of 3.00R from center to center. Find
the (a) magnitude and (b)
direction (into or out of the page) of the current in the wire such
that the ratio of the magnitude of the net magnetic field at point
P to the magnitude...
An infinitely long, straight conductor with a circular cross-section of radius b carries a steady current I. (a) Determine the magnetic flux density (B) both inside and outside the conductor. (b) Det...
An infinitely long, straight conductor with a circular cross-section of radius b carries a steady current I. (a) Determine the magnetic flux density (B) both inside and outside the conductor. (b) Determine the vector magnetic potential (A) both inside and outside the conductor from the relationship B V x A
An infinitely long, straight conductor with a circular cross-section of radius b carries a steady current I. (a) Determine the magnetic flux density (B) both inside and outside the conductor....
5. A long solid right circular cylinder of radius R carries a current I, which is uniformly distributed. Find the magnetic field everywhere, both inside and outside the cylinder.
only 5
hos 5. A long solid right circular cylinder of radius R carries a current I, which is uniformly distributed. Find the magnetic field everywhere, both inside and outside the cylinder. 6. A long solenoid of area A = TtR,? and turns per unit length n carries a current i = lycoswt. Find the electric field at a distance r from the axis of the solenoid. Distinguish between the cases r > R: and r < Rs. 7. A...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization M ksp, where k is a constant, s is the distance from the axis, and ф is the azimuthal unit vector. a) Use ф H- dl = hemet to determine the auxiliary field (H field) both inside and outside of the cylinder b) use H = (110)2-M to determine the magnetic field (B-field) both inside and outside of the cylinder
In the figure below, a long circular pipe with outside radius R2.42 cm carries a (uniformly distributed) current i 11.3 mA into the page. A wire runs parallel to the pipe at a distance of 3.00R from center to center. Find the (a) magnitude and (b) direction (into or out of the page) of the current in the wire such that the ratio of the magnitude of the net magnetic field at point P to the magnitude of the net...
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id. Using Ampere's law, find the magnetic field intensity ll inside the cylinder. Assume the magnetic field ii - 0 outside the cylinder.
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and is given by M = ksi, where k is a constant and s is the distance from the axis. There is no free current anywhere. Find the magnetic field inside and outside the cylinder.
In the figure below, a long circular pipe with outside radius
R = 2.76 cm carries a (uniformly distributed) current
i = 10.3 mA into the page. A wire runs parallel to the
pipe at a distance of 3.00R from center to center. Find
the (a) magnitude and (b)
direction (into or out of the page) of the current in the wire such
that the ratio of the magnitude of the net magnetic field at point
P to the magnitude...
An infinitely long, straight conductor with a circular cross-section of radius b carries a steady current I. (a) Determine the magnetic flux density (B) both inside and outside the conductor. (b) Determine the vector magnetic potential (A) both inside and outside the conductor from the relationship B V x A
An infinitely long, straight conductor with a circular cross-section of radius b carries a steady current I. (a) Determine the magnetic flux density (B) both inside and outside the conductor....
