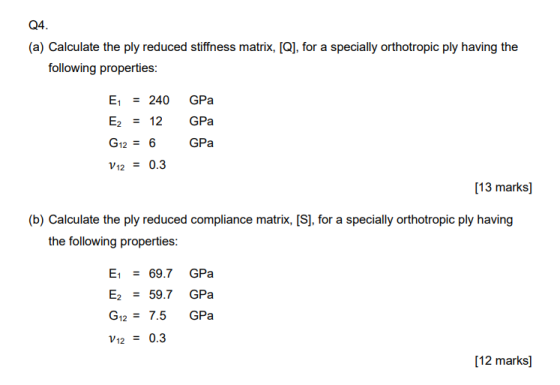

![Q4. (a) Calculate the ply reduced stiffness matrix, [Q], for a specially orthotropic ply having the following properties: E =](http://img.homeworklib.com/questions/4b8b9030-fec4-11ea-b640-ef1434b8be1c.png?x-oss-process=image/resize,w_560)
Homework Answers

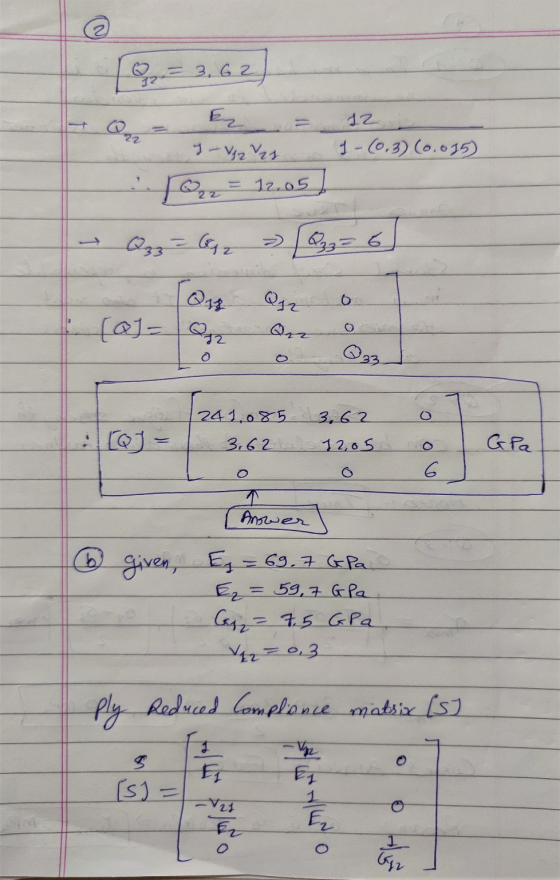

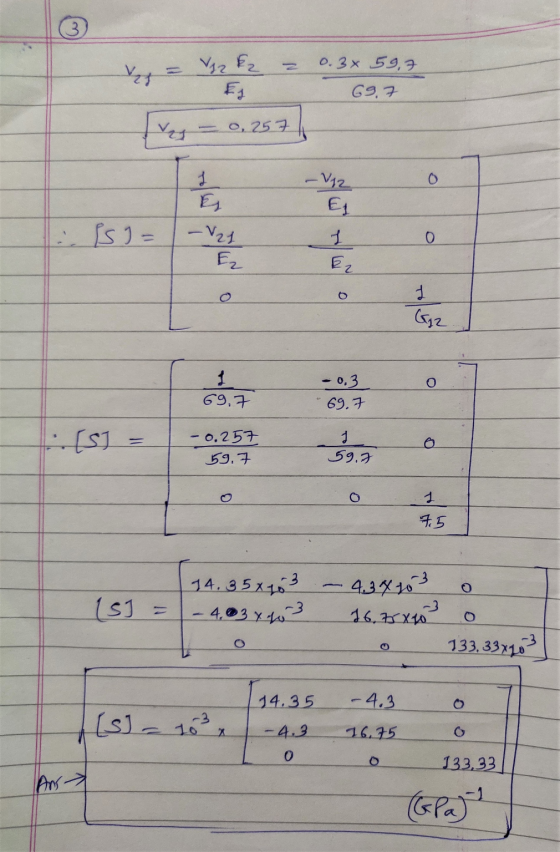

![1 a given E = 240 GP a - 12 GRA n = 6 G Pa 12 = 0.3 Ply reduced stiffners matrix (Q] Q12 (Q] = Qiz Que where, Qui 1- Vzz zz N](http://img.homeworklib.com/questions/05ba9aa0-065e-11eb-9b03-398541479271.png?x-oss-process=image/resize,w_560)
Add Answer to:
Q4. (a) Calculate the ply reduced stiffness matrix, [Q], for a specially orthotropic ply having the...
Problem 5.12 Compute the transformed stiffness [Q] for the material of Problem 5.5 at θ =...
Problem 5.12 Compute the transformed stiffness [Q] for the material of Problem 5.5 at θ = 90◦. Comment on the results. Problem 5.5 Compute the reduced stiffness [Q] matrix for a lamina with E1 = 35 GPa, E2 =3.5 GPa, ν12 =0.3, G12 =1.75 GPa, and G23 =0.35 GPa. solve problem 5.12 please
2.15 The reduced stiffness matrix [Q] is given for a unidirectional lamina is given as follows:...
2.15 The reduced stiffness matrix [Q] is given for a unidirectional lamina is given as follows: by Taylor & Francis Group, LLC Mechanics of Composite Materials, Second Edition 170 5,681 0.3164 0 Msi Q]= 0.3164 1.217 0 0 0 0.6006 What are the four engineering constants, E E, v12, and G12, of the lamina?
2.15 The reduced stiffness matrix [Q] is given for a unidirectional lamina is given as follows: by Taylor & Francis Group, LLC Mechanics of Composite Materials,...
please solve 2 and 3 1- The reduced stiffness matrix [Q] is given for a unidirectional...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
Macromechanics 215 N, 1000 N/m; all remaining components are equal to zero b) Mry 1 Nm/m; all rem...
I need help with question 6.18
Macromechanics 215 N, 1000 N/m; all remaining components are equal to zero b) Mry 1 Nm/m; all remaining components are equal to sero ) Comment on the coupling efects obsereed 6.12 Compute the strains ( (y, and ry at the interface between the 459 and laminae above the middle surface by using the results of case (b) of Ezercise 6.11 and -45 /a.e3 6.23). cise 6.13 Compute the stresses ơz and σ1 in the...
2.15 The reduced stiffness matrix [Q] is given for a unidirectional lamina is given as follows: by Taylor & Francis Group, LLC Mechanics of Composite Materials, Second Edition 170 5,681 0.3164 0 Msi Q]= 0.3164 1.217 0 0 0 0.6006 What are the four engineering constants, E E, v12, and G12, of the lamina?
2.15 The reduced stiffness matrix [Q] is given for a unidirectional lamina is given as follows: by Taylor & Francis Group, LLC Mechanics of Composite Materials,...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
I need help with question 6.18
Macromechanics 215 N, 1000 N/m; all remaining components are equal to zero b) Mry 1 Nm/m; all remaining components are equal to sero ) Comment on the coupling efects obsereed 6.12 Compute the strains ( (y, and ry at the interface between the 459 and laminae above the middle surface by using the results of case (b) of Ezercise 6.11 and -45 /a.e3 6.23). cise 6.13 Compute the stresses ơz and σ1 in the...
